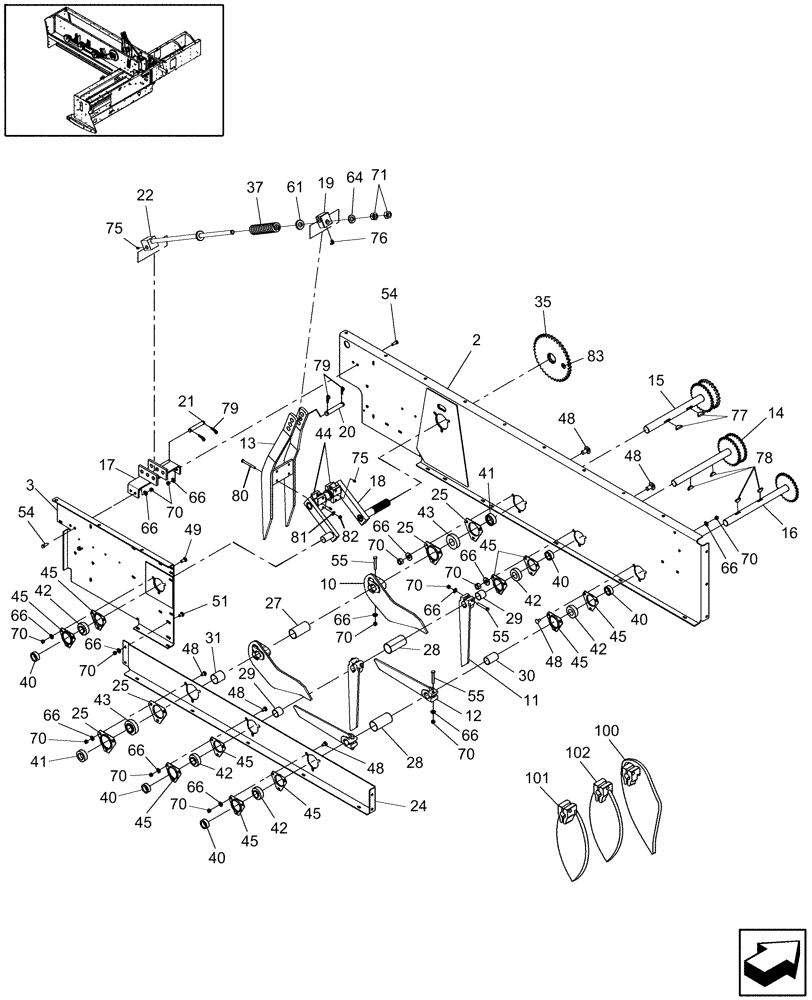

Запчасти Case IH SB541 (60.220.05[2]) - FEEDER FINGERS, SB541 (60) - PRODUCT FEEDING

2

87741343

STEEL PLATE

Front

1шт.

3

87741346

FEEDER

Rear

1шт.

10

9821795

FINGER

LH

4шт.

11

9821796

FINGER

Center

2шт.

12

9845283

FINGER

RH

1шт.

13

86508203

FINGER

1шт.

14

9807866

SHAFT

Center, 28T/28T

1шт.

15

86526406

SHAFT

LH, 23T/28T

1шт.

16

9807868

SHAFT

RH, 28T

1шт.

17

9845351

BRACKET

1шт.

18

9801475

LINK CONROD

1шт.

19

848689

PIN

Pivot

1шт.

20

848686

CLEVIS PIN

2шт.

21

849361

PIN

2шт.

22

848690

ROD

1шт.

24

848734

SUPPORT

Rotor

1шт.

25

86620026

FLANGED BEARING

4шт.

27

9820205

SHIELD

1шт.

28

9820206

SHIELD

1шт.

29

9822653

SHIELD

2шт.

30

9822654

SHIELD

1шт.

31

9822667

SHIELD

1шт.

35

9822718

DRIVEN SPROCKET

39T, Includes Ref. 80

1шт.

37

13935

SPRING

Bale Tension

2шт.

40

38767

COLLAR,Lock, 31.9mm ID x 44mm OD 15.9mm Thk

4шт.

41

47067

RETAINER COLLAR,34.92mm ID x 56.33mm OD x 17.46mm Thk

4шт.

42

84484181

BALL BEARING,31.75mm ID x 62mm OD x 18mm W

5шт.

42

84484181GV

BEARING ASSY

Value, Ball Bearing

5шт.

43

47066

BALL BEARING,35mm ID x 72mm OD x 19mm W

2шт.

44

86518258

BEARING ASSY

Includes: Ref. 80 - 82

2шт.

45

86548970

FLANGED BEARING

10шт.

48

280430

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5, Full Thd

15шт.

49

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

3шт.

51

86508748

CARRIAGE BOLT,Short Square Neck, 3/8" - 16 x 3/4", Grade 5

2шт.

54

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

55

87936

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 5

6шт.

61

86900099

WASHER

1шт.

64

87381

WASHER,0.81" ID x 1.47" OD x 0.13" Thk

2шт.

66

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

33шт.

70

9628503

NUT,3/8"-16, G5

33шт.

71

9706694

NUT,Hex, M20, Cl 8

2шт.

75

87414

LUBE NIPPLE,1/4" - 28

3шт.

76

87415

LUBE NIPPLE,90 Degree, 1/4" NPT x 3/4" L, Drive

3шт.

77

47609

WOODRUFF KEY,#25, 5/16" x 1 1/2", HT

4шт.

78

84361

WOODRUFF KEY,#21, 1/4" x 1 1/4"

4шт.

79

216698

COTTER PIN,0.125" OD x 1.75" L

4шт.

80

43133

BOLT,Hex, M8 x 1.25 x 80mm, Cl 8.8

2шт.

81

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

2шт.

82

9706690

NUT,M8 x 1.25, Cl 8

2шт.

83

80046060

SLEEVE

Shear Bolt

1шт.

Press Fit

1шт.

100

86511491

FINGER

Feeder, Teardrop Option, LH

2шт.

101

86511492

FINGER

Feeder, Teardrop Option, Center

2шт.

102

86511493

FINGER

Feeder, Teardrop Option, RH

2шт.
