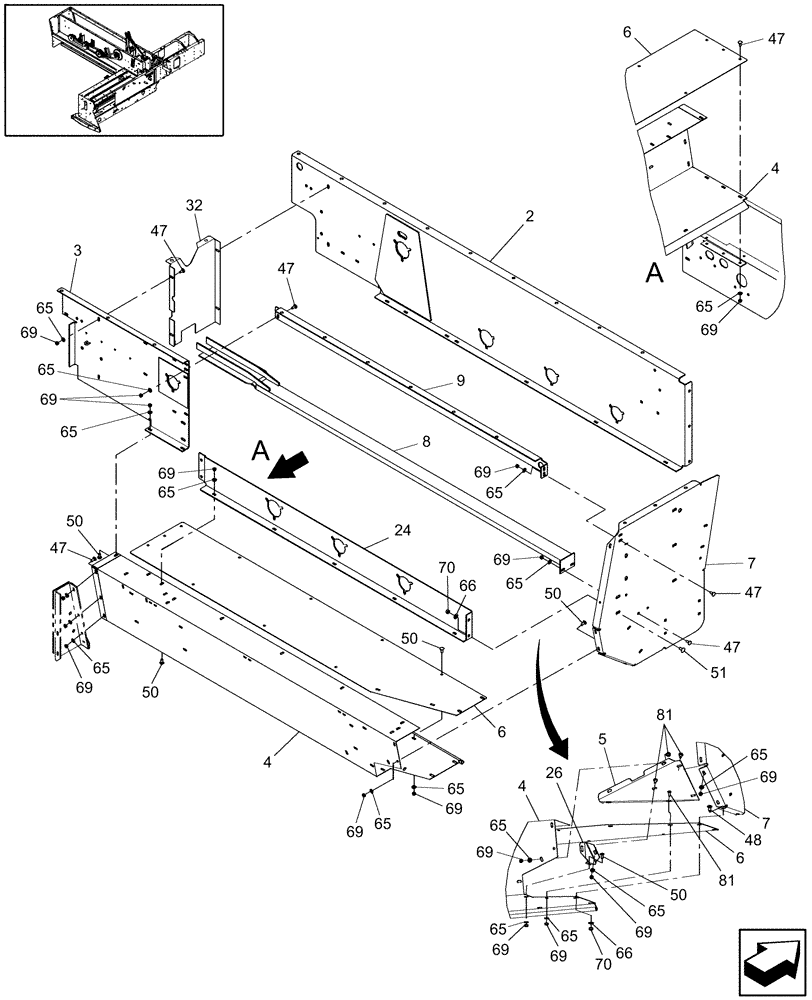

Запчасти Case IH SB541 (60.220.03[2]) - FEEDER SHIELDS, SB541 (60) - PRODUCT FEEDING

2

87741343

STEEL PLATE

Front

1шт.

3

87741346

FEEDER

Rear, Includes: (3) Ref. 74

1шт.

4

87643543

FLOOR

Feeder

1шт.

5

87722872

STEEL PLATE

Corner

1шт.

6

87753023

FLOOR

1шт.

7

84133791

SUPPORT

1шт.

8

86641493

GUARD

Hay

1шт.

9

87716777

SUPPORT

Includes: (5) Ref. 74

1шт.

24

848734

SUPPORT

Rotor

1шт.

26

87753027

FILLER

1шт.

32

87673700

PROTECTION PLATE

1шт.

47

280327

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5, Full Thd

14шт.

48

280430

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

50

280497

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 3/4", Gr 5, Full Thd

16шт.

51

86508748

CARRIAGE BOLT,Short Square Neck, 3/8" - 16 x 3/4", Grade 5

2шт.

65

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

34шт.

66

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

69

9635082

NUT,5/16" - 18, Gr 5

34шт.

70

9628503

NUT,3/8"-16, G5

4шт.

81

88992

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1", Gr 5

7шт.
