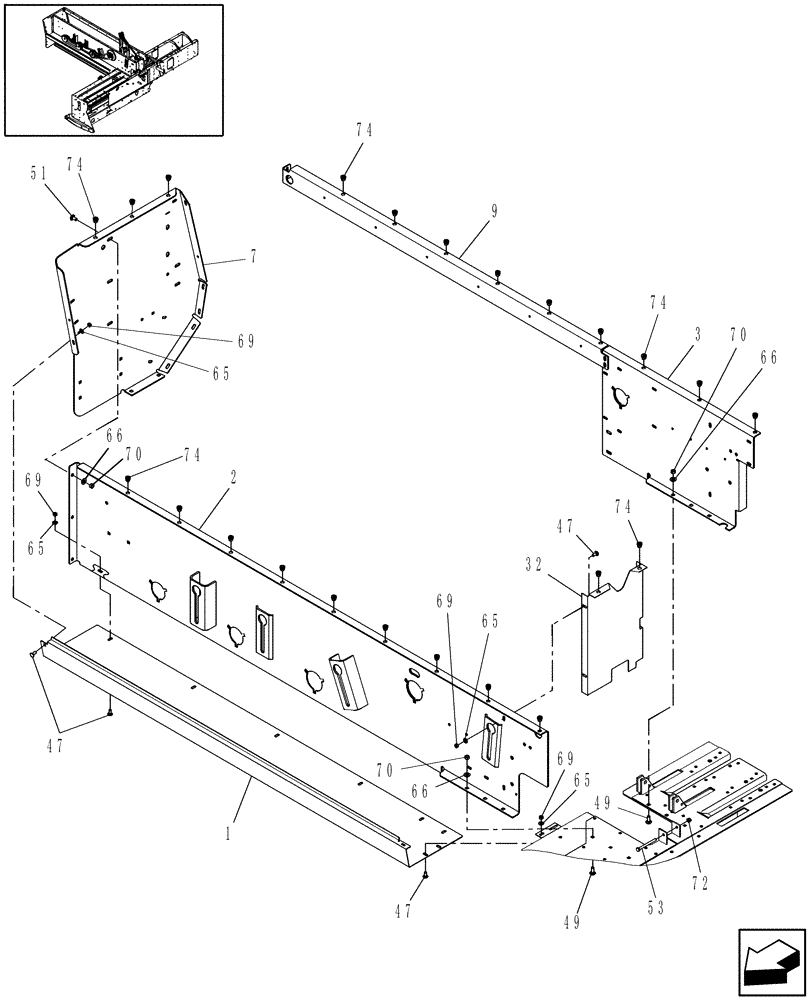

Запчасти Case IH SB541 (60.220.01[2]) - FEEDER FRAME, SB541 (60) - PRODUCT FEEDING

1

87716779

PLATE

Top

1шт.

2

87741343

STEEL PLATE

Front

1шт.

3

87741346

FEEDER

Rear, Includes: (3) Ref. 74

1шт.

7

84133791

SUPPORT

End

1шт.

9

87711695

TOP COVER

Includes: (6) Ref. 74

1шт.

32

87673700

PROTECTION PLATE

1шт.

47

280327

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5, Full Thd

11шт.

49

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

6шт.

51

86508748

CARRIAGE BOLT,Short Square Neck, 3/8" - 16 x 3/4", Grade 5

3шт.

53

86507008

BOLT,Hex, 5/16" - 18 x 3 1/2", Gr 5

2шт.

65

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

11шт.

66

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

9шт.

69

9635082

NUT,5/16" - 18, Gr 5

11шт.

70

9628503

NUT,3/8"-16, G5

9шт.

72

86629544

NUT,5/16” – 18, GR B

1шт.

74

86610200

THREADED INSERT,M8 x 1.25

23шт.
