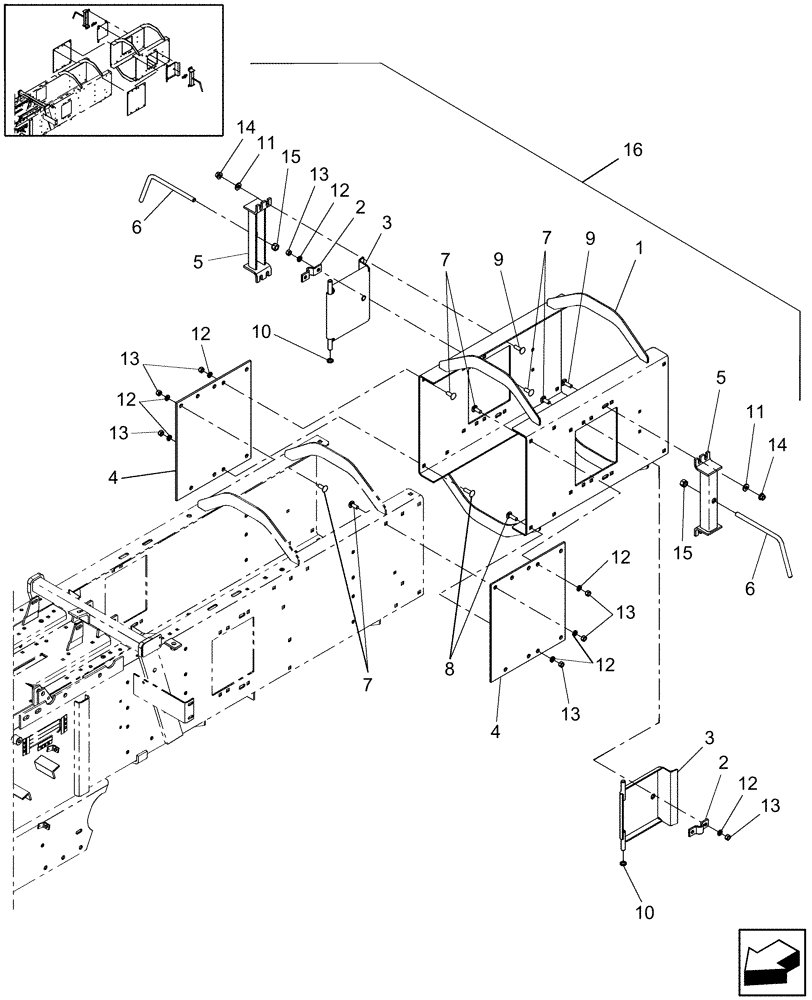

Запчасти Case IH SB541 (39.100.02) - BALE CASE EXTENSION (39) - FRAMES AND BALLASTING

1

86630796

EXTENSION

Bale Chamber

1шт.

2

86630804

BRACKET

Hinge

4шт.

3

86630802

TRACK PLATE

Door

2шт.

4

86630798

SHEET METAL

1шт.

5

86630800

SUPPORT

2шт.

6

849347

HANDLE

2шт.

7

280503

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

18шт.

8

86508749

CARRIAGE BOLT,Short Square Neck, 3/8" - 16 x 1 1/4", Grade 5

8шт.

9

86508773

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5, Full Thd

8шт.

10

244379

WASHER,13.49mm ID x 19.05mm OD x 2.67mm Thk

2шт.

11

48055

WASHER

8шт.

12

80680

LOCK WASHER,3/8 0.381 CST ZND

26шт.

13

9628503

NUT,3/8"-16, G5

26шт.

14

86521609

FLANGE NUT,Flg, 3/8"-16

8шт.

15

100038

NUT,M12 x 1.75, Cl 8

2шт.

16

715240016

DIA KIT, HARV BAG

Bale Case Extension, Includes: Installation Instructions

1шт.

Refer to Installation Instructions for Correct Assembly Procedure.

1шт.
