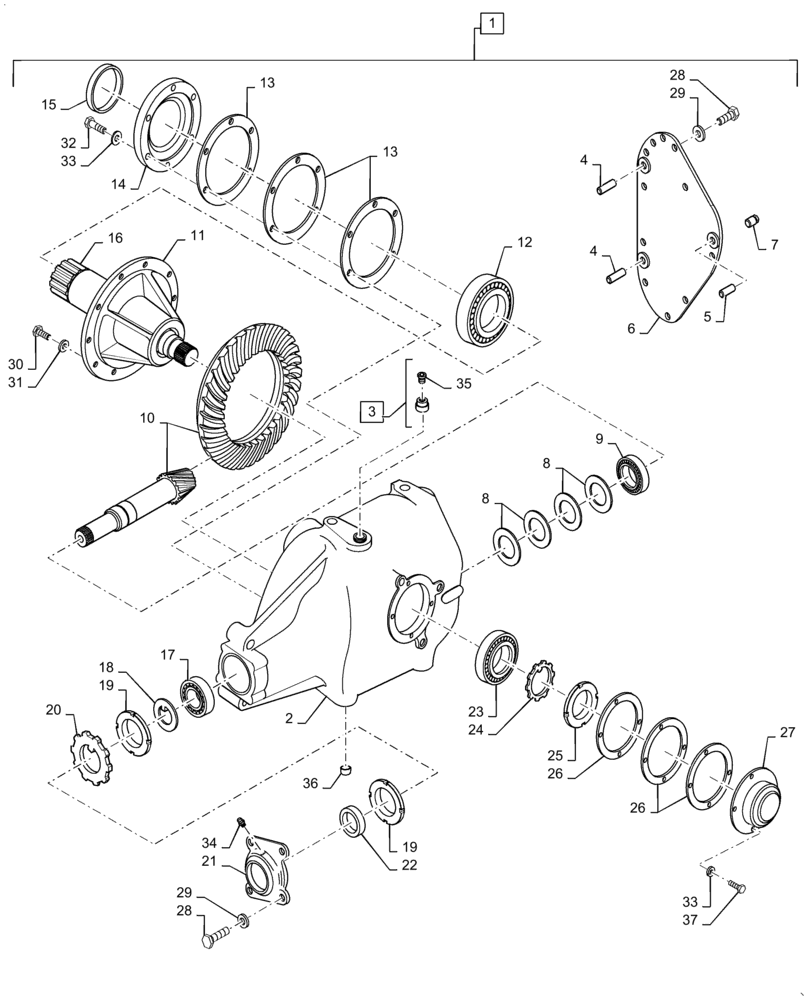

Запчасти Case IH SB541 (31.220.02) - GEARBOX, MAIN DRIVE (31) - IMPLEMENT POWER TAKE OFF

1

86518977

GEARBOX

Main Drive

1шт.

86635579R

REMAN-GEARBOX

BC5060, BC5070, Both SMALL SQUARE BALER (9/08-), BC5070 HAYLINER® SMALL SQUARE BALER (9/09-), Reman for New PN 86518977

1шт.

86635579C

CORE-GEARBOX

Return Number

1шт.

2

86518987

HOUSING

Gearbox

1шт.

3

9821757

PLUG

Incl 35

1шт.

4

378398

PIN

Dowel, M10 x 40

2шт.

5

378399

DOWEL,M12 x 40

1шт.

6

449785

COVER

1шт.

7

86539484

PIPE PLUG,Sq Hd, 1/8"-27, NTPF

1шт.

8

222554

SHIM,.005" Thk

1шт.

8

222555

SHIM,.003" Thk

1шт.

8

NSS

NOT SOLD SEPARAT

.020", Use (4) 222554

1шт.

9

86529552

TAPERED BEARING,50.8mm ID x 111.25mm OD x 30.16mm W

Tapered Roller, Half Tolerance, Gearbox

1шт.

10

9806493

GEAR SET

1шт.

11

188805

HUB

Ring Gear

1шт.

12

86629496

TAPERED BEARING,82.55mm ID x 136.53mm OD x 30.16mm W

1шт.

13

29814

SHIM,0.076mm Thk

(.003")

1шт.

13

29815

SHIM,0.127mm Thk

(.005")

1шт.

13

29813

SHIM,0.178mm Thk

(.007")

3шт.

14

86977043

RETAINER

Bearing

1шт.

15

37705

OIL SEAL,82.55mm ID x 108.13mm OD x 8.41mm Thk

Oil

1шт.

16

848925

CRANKSHAFT

1шт.

17

37734

BEARING ASSY,44.98mm ID x 82.93mm OD x 25.4mm W

1шт.

18

54167

WASHER

Keyed

1шт.

19

9615771

BEARING LOCK NUT,44.026 mm ID x 65 mm OD

2шт.

20

58153

BEARING WASHER,45.52mm ID x 70.2mm OD x 1.8mm Thk

Bearing

1шт.

21

86629504

CAP COVER

End

1шт.

22

37707

OIL SEAL,41.27mm ID x 54.13mm OD x 6.91mm Thk

1шт.

23

37436

TAPERED BEARING,55.58mm ID x 96.84mm OD x 26.26mm W

1шт.

24

37426

LOCK WASHER,Bearing, W-11

1шт.

25

9615770

BEARING LOCK NUT,55 mm ID x 75.4 mm OD x 10.85 mm

M55 x 1.5, Bearing

1шт.

26

38031

SHIM,.005" Thk

1шт.

27

799031

BEARING ASSY,95 mm ID x 146 mm

Retaining

1шт.

28

87872

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

16шт.

29

80681

LOCK WASHER,5/16"

16шт.

30

9706687

BOLT,M12 x 1.75 x 30mm, Cl 8.8

10шт.

31

80679

LOCK WASHER,1/20.507 CST ZND

10шт.

32

88011

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

6шт.

33

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

10шт.

34

87414

LUBE NIPPLE,1/4" - 28

1шт.

35

46566

BREATHER

1шт.

36

84296

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

1шт.

37

88044

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

4шт.
