Запчасти Case IH SB541 (90.105.63) - SHIELDS, REAR, SB541 AUSTRALIA (90) - PLATFORM, CAB, BODYWORK AND DECALS

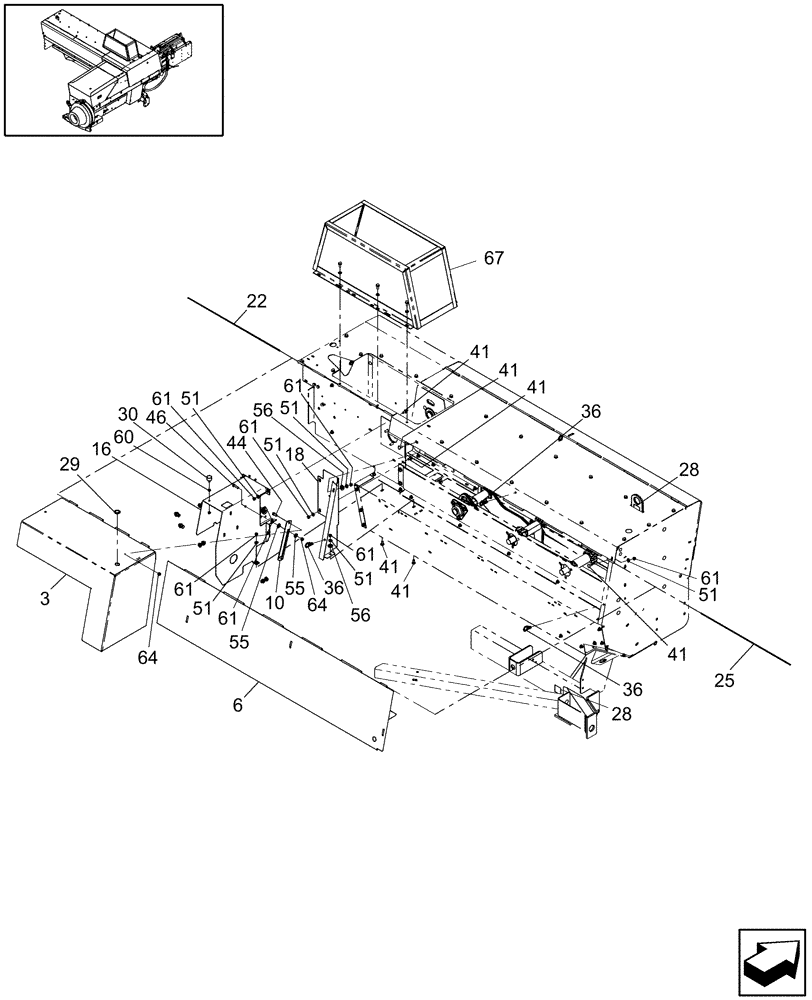

Схема запчастей Case IH SB541 - (90.105.63) - SHIELDS, REAR, SB541 AUSTRALIA (90) - PLATFORM, CAB, BODYWORK AND DECALS
64
25
51
22
56
61
41
28
67
61
16
18
51
41
64
61
28
46
41
36
61
10
6
61
51
61
44
41
36
51
29
51
3
36
55
51
61
56
60
30
41
55
41

Артикул

Название

Примечание

Количество

3

86635524

COVER

Knotter

1шт.

6

87663978

DOOR

Rear Feeder, Includes: Ref. 7

1шт.

7

86629205

WARNING DECAL

1шт.

Not Illustrated. Refer to Decal Figures for Decal Placement.

1шт.

10

86629754

LATCH

1шт.

16

86635526

SHIELD

1шт.

19

87663979

SUPPORT

1шт.

22

637576

PIN,4.76mm OD x 2057.4mm L

, Serial Range: Cut-Length

1шт.

25

87614286

PIN

1шт.

28

9622377

DECAL

Hook

2шт.

30

9844656

BUMPER

1шт.

36

264552

FASTENER

3шт.

41

280497

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 3/4", Gr 5, Full Thd

10шт.

44

87872

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

46

87657

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 5

1шт.

51

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

5шт.

55

80664

WASHER,0.38" ID x 0.88" OD x 0.08" Thk

2шт.

56

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

2шт.

60

7770

NUT,Hex, 1/4 - 20, Cl 5

2шт.

61

9635082

NUT,5/16" - 18, Gr 5

11шт.

64

86629544

NUT,5/16” – 18, GR B

2шт.

67

87746186

COVER

1шт.

Выбрано товаров: 22
