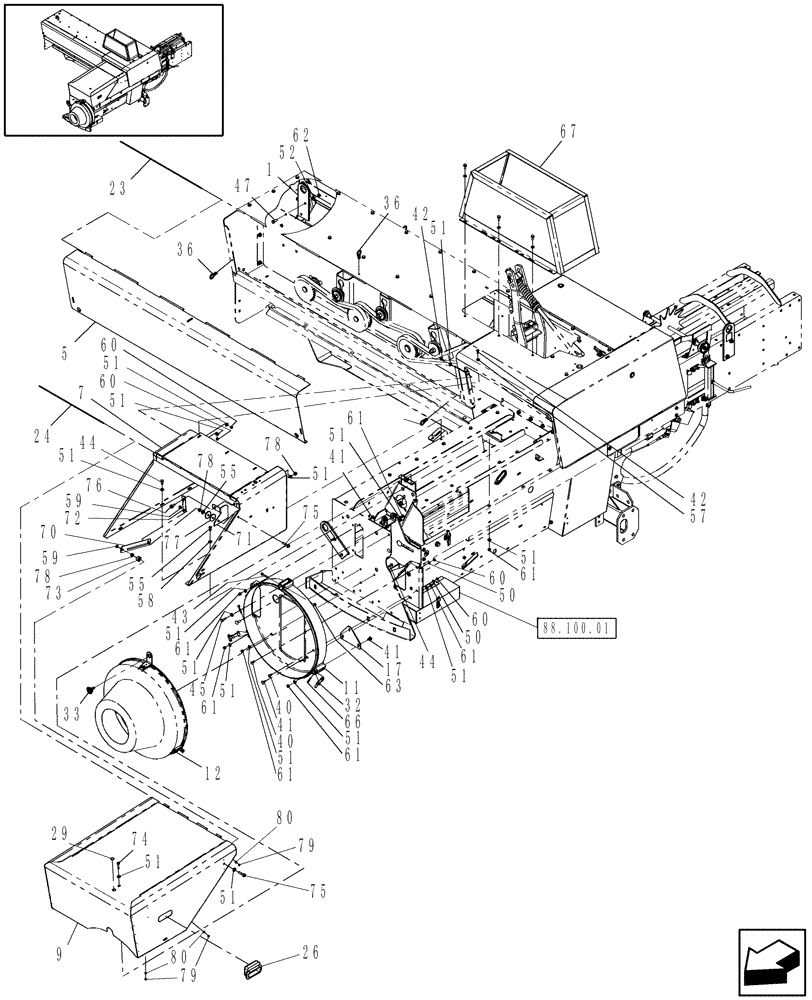

Запчасти Case IH SB541 (90.105.62) - SHIELDS, FRONT & FLYWHEEL GUARD, SB541 AUSTRALIA (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

86630681

BRACKET

1шт.

5

87663976

DOOR

Includes: Ref. 6

1шт.

6

86626958

WARNING DECAL

English

1шт.

Not Illustrated. Refer to Decal Figures for Decal Placement.

1шт.

7

87708956

FILLER

1шт.

8

84014116

DECAL

1шт.

Not Illustrated. Refer to Decal Figures for Decal Placement.

1шт.

9

87494298

HOOD

1шт.

10

730650

DECAL

1шт.

Not Illustrated. Refer to Decal Figures for Decal Placement.

1шт.

11

9615816

SHIELD

1шт.

12

86518330

PROTECTION CAP

1шт.

13

84014115

DECAL

1шт.

Not Illustrated. Refer to Decal Figures for Decal Placement.

1шт.

14

84004744

IMPORTANT DECAL

1шт.

Not Illustrated. Refer to Decal Figures for Decal Placement.

1шт.

15

84004731

WARNING DECAL

1шт.

Not Illustrated. Refer to Decal Figures for Decal Placement.

1шт.

17

86630696

SUPPORT

1шт.

23

9604431

HINGE

1шт.

24

9604432

SPINDLE

1шт.

26

3962571

HANDLE

1шт.

29

285412

PLUG

1шт.

32

211495

HANDLE

2шт.

33

86512919

LATCH

1шт.

36

264552

FASTENER

3шт.

40

280638

CARRIAGE BOLT,Short NK, 1/4"-20 x 3/4", G5, Full Thd

1шт.

41

280497

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 3/4", Gr 5, Full Thd

4шт.

42

280641

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

6шт.

43

280164

BOLT,Hex, 1/4" - 20 x 1 3/4", Gr 5

1шт.

44

87872

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

8шт.

45

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

1шт.

47

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

50

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

2шт.

51

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

17шт.

52

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

2шт.

57

87361

WASHER,0.28" ID x 0.62" OD x 0.07" Thk

3шт.

58

87362

WASHER,5/16" SAE

3шт.

60

7770

NUT,Hex, 1/4 - 20, Cl 5

8шт.

61

9635082

NUT,5/16" - 18, Gr 5

16шт.

62

9628503

NUT,3/8"-16, G5

2шт.

63

20356

NUT,1/4"-20, GB

1шт.

66

80754

COTTER PIN,3/16" OD x 1-1/2" OAL

2шт.

67

87746186

COVER

1шт.

70

87749605

LATCH

1шт.

71

87749603

SUPPORT

1шт.

72

87749606

BRACKET

1шт.

73

87494304

SPACER

1шт.

74

86977692

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 1 1/2"

1шт.

75

280350

BOLT

2шт.

76

86521553

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

77

322

WASHER,8.73mm ID x 42.07mm OD x 3.43mm Thk

2шт.

78

86521605

FLANGE NUT,5/16"-18, Cl 5

3шт.

79

284422

BUMPER

6шт.

80

9824840

WASHER,4.3mm ID x 9mm OD x 0.8mm Thk

6шт.
