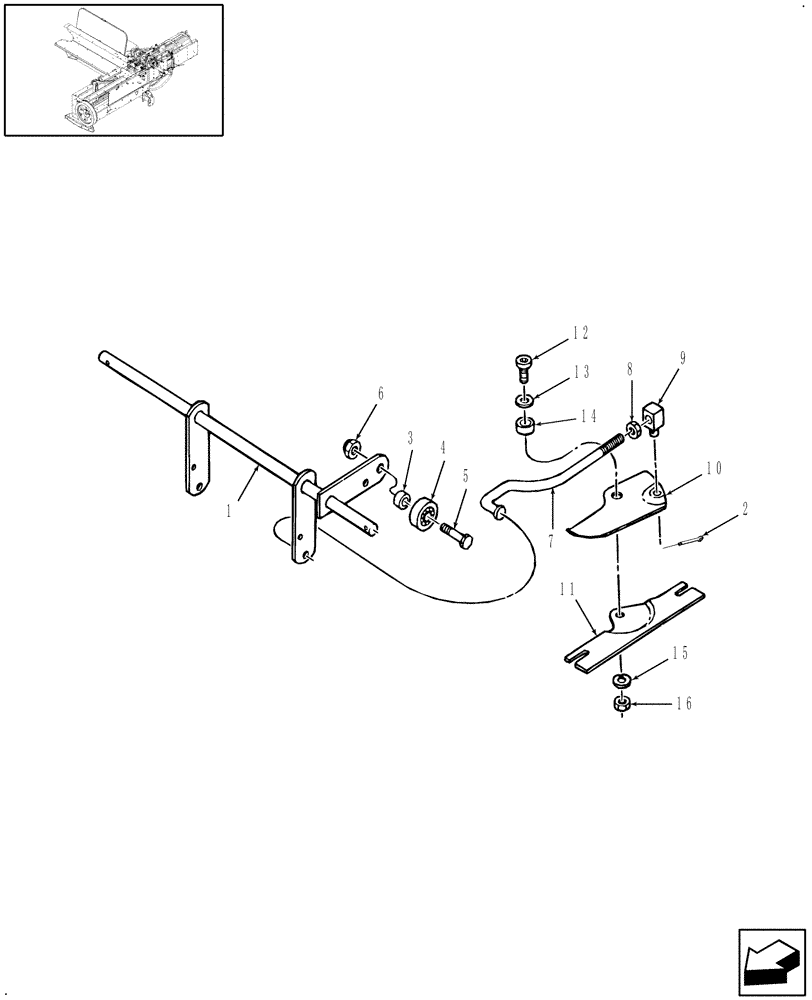

Запчасти Case IH SB531 (68.180.08) - TWINE FINGER & LEVER (68) - TYING/WRAPPING

1

849383

LEVER

1шт.

2

80756

COTTER PIN,1/8" x 3/4"

2шт.

3

854963

SPACER,10.5mm ID x 16mm OD x 8.5mm L

1шт.

4

9604557

BALL BEARING,10mm ID x 31.75mm OD x 15.9mm W

1шт.

5

120068

BOLT,Hex, M10 x 40mm, Cl 8.8

1шт.

6

100037

LOCK NUT,M10 x 1.5, Cl 8

1шт.

7

9604535

ROD

Twine Finger

2шт.

8

89706690

NUT,M8, Cl 8

2шт.

9

414

BLOCK

Adjustment

2шт.

10

265119

FINGER

Twine

2шт.

11

86640806

FINGER

Finger

2шт.

12

380425

BOLT,M10 x 20mm

Button Hd, HS, CL 10.9, M 10 x 20

2шт.

13

87016

WASHER,0.41" ID x 0.81" OD x 0.07" Thk

2шт.

14

185140

SPACER

2шт.

15

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

2шт.

16

100016

NUT,M10 x 1.5, Cl 8

2шт.
