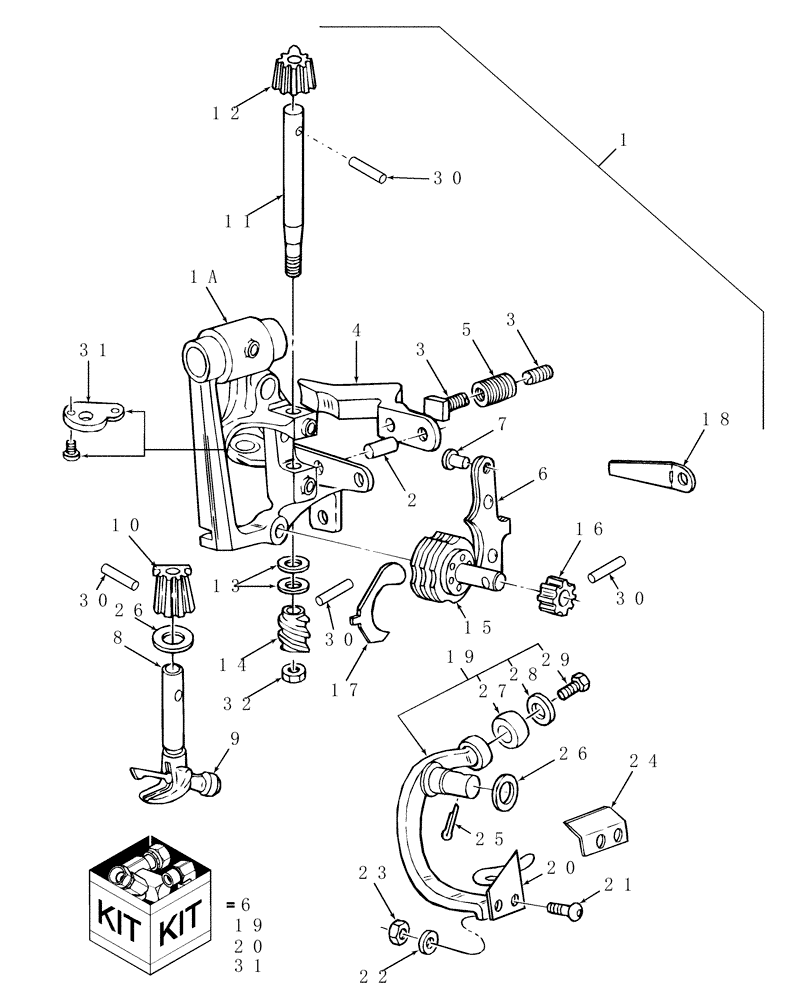

Запчасти Case IH SB531 (68.180.02[1]) - TWINE KNOTTER FRAME, SB531 (68) - TYING/WRAPPING

1

86977218

KNOTTER FRAME,Assembly

Knotter

2шт.

1a

86977223

KNOTTER

2шт.

219-93

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

6шт.

219-87

LUBE NIPPLE,1/4" - 28 NPTF

8шт.

2

11106

PIN,8.73mm OD x 25.4mm L

11/32" x 1"

2шт.

3

39170

BOLT,Sq Hd, 5/16" - 18 x 2 5/8", Gr 2

Sq Hd, G2, 5/16"-18 x 2-5/8"

2шт.

87463

NUT

Pal, 5/16"-18

2шт.

4

86836511

KNOTTER HOOK

2шт.

5

11104

SPRING

2шт.

6

47918622

HOLDER

Twine Holder

2шт.

Includes: Twine Holder & Twine Holder Pin

1шт.

7

9820351

SCREW,BTN HD, 5/16" - 18 x 0.88"

HS, Button Hd, Special, 5/16"-18 x 7/8"

2шт.

8

796734

BILL HOOK

Standard

2шт.

Hardened Steel Roller to use with knotter frames with a bolt on ramp for the roller - Kit 781216, Incl: Ref. 9 & Groove Pin

1шт.

8

854819

BILL HOOK

Optional, Large Diameter Sisal Twine

2шт.

Steel Roller, Includes: Ref. 9 & Groove Pin

1шт.

9

796738

TONGUE

2шт.

784746

GROOVED PIN

3/16" x 1/2"

2шт.

10

86977124

PINION

Bill Hook

2шт.

435-1614

GROOVED PIN,3/16" x 7/8", Type A

2шт.

11

86629480

SHAFT

Pinion

2шт.

12

86629478

WORM GEAR

Pinion

2шт.

13

773427

WASHER,0.65" ID x 1.09" OD x 0.02" Thk

.020"

1шт.

14

86629482

WORM SCREW

Knotter

2шт.

15

86977070

DISC

2шт.

16

86629481

DRIVE PINION

Twine Disc

2шт.

17

39224

CLEANER

Cleaner

4шт.

18

11109

SPRING

Tension

2шт.

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

SBX530 & SBX540

2шт.

19

86977418

KIT

Knife Arm, Includes; Ref. 25 - 29 & Arm

1шт.

20

615073

KNIFE

Includes; (2) Ref. 21, 22, 23, & (1) Knife

1шт.

21

88637

HEX SOC SCREW,Btn Hd, #8 - 32 x 1/2"

2шт.

22

492-11008

LOCK WASHER,#8

2шт.

23

225-14108

NUT,#8-32

2шт.

24

612244

GUIDE

2шт.

25

32-814

COTTER PIN,1/8" x 7/8"

2шт.

26

187426

SHIM,.015" Thk

.015"

1шт.

26

195903

SHIM,.025" Thk

1шт.

27

146

ROLLER,25.4mm OD x 12.7mm L

Knife Arm

2шт.

28

86528903

WASHER,6.76mm ID x 17.48mm OD x 1.52mm Thk

2шт.

29

86528797

LOCK BOLT,Button Hd, 1/4" - 20 x 0.50"

Button Hd, HS, Self-Locking,1/4"-20 x 1/2"

2шт.

30

9843711

GROOVED PIN,4.76mm OD x 22.23mm L

8шт.

31

781216

KIT

Bill Hook Cam, Includes Hardware

1шт.

32

425-116

NUT,3/8" - 24, Gr 5

2шт.
