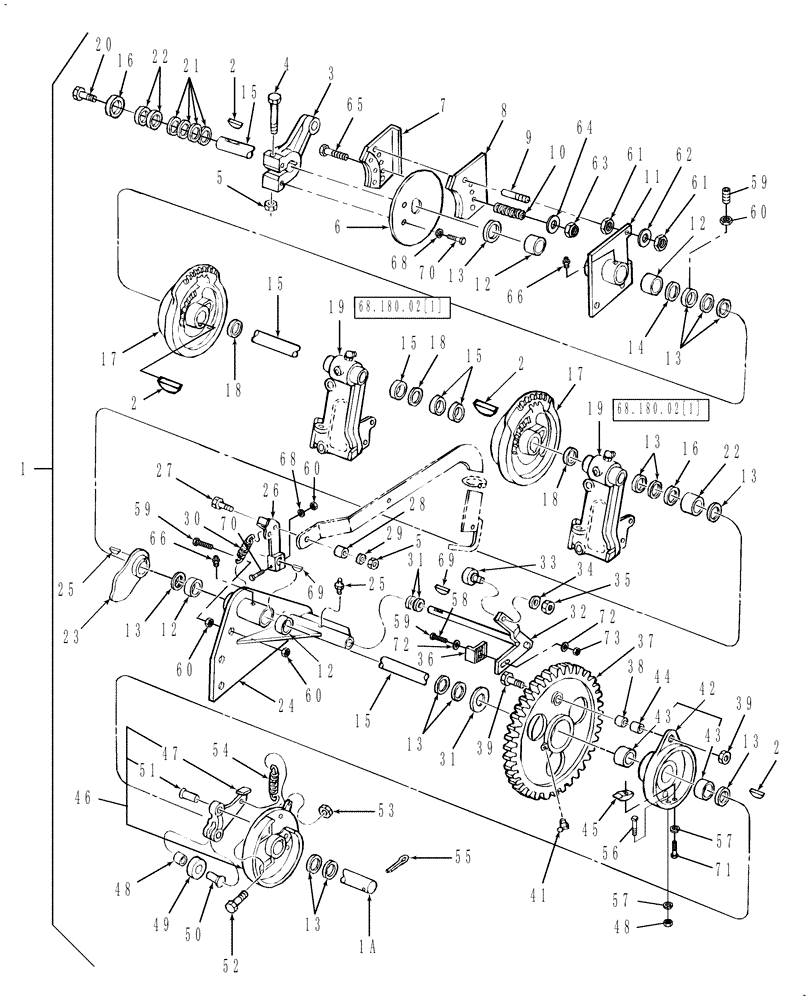

Запчасти Case IH SB531 (68.180.01[1]) - TWINE KNOTTER, SB531 (68) - TYING/WRAPPING

1

87044784

KNOTTER

1шт.

2

80765

WOODRUFF KEY,#18, 1/4" x 1 1/8"

4шт.

3

848664

ARM

Knotter

1шт.

4

280161

BOLT,Hex, 3/8" - 16 x 3", Gr 5

1шт.

5

88902

NUT,3/8"-16

1шт.

6

602702

BRAKE DISC

1шт.

7

791788

BRAKE SHOE

1шт.

8

791787

BRAKE SHOE

1шт.

9

770210

PIN,9.53mm OD x 60.2mm L

3/8"

2шт.

10

128383

SPRING

2шт.

11

849102

BEARING HOUSING,28.727 mm ID x 31.775 mm OD x 23 mm

RH, Includes: Ref. 12

1шт.

12

28280

BUSHING,28.71mm ID x 31.89mm OD x 25.4mm L

4шт.

13

672

WASHER

Spacer, 1/32"

1шт.

13

673

WASHER,29mm ID x 41mm OD x 1.52mm Thk

1шт.

14

634037

SPACER

2шт.

15

87044711

SHAFT

Knotter

1шт.

16

264198

WASHER,9.9mm ID x 39.1mm OD x 4.8mm Thk

1шт.

17

645744

SERVICE KIT,Knotter Cam

Gear Kit, Includes: Bill Hook Pinion & Worm Pinion

2шт.

18

86629477

WASHER

1шт.

19

86977218

KNOTTER FRAME,Assembly

Knotter

2шт.

20

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.

21

29046

WASHER,11.1mm ID x 25.4mm OD x 0.457mm Thk

7/16" x .018" Thick

4/ARшт.

22

80664

WASHER,0.38" ID x 0.88" OD x 0.08" Thk

2/ARшт.

23

86977194

CAM

Twine Finger

1шт.

24

87044716

SUPPORT

LH, Includes: Ref. 60

1шт.

25

88214

WOODRUFF KEY,#91, 1/4" x 3/4"

1шт.

26

87122

WOODRUFF KEY,#128, 5/16" x 2 1/8"

1шт.

27

88011

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

1шт.

28

9847146

SPACER

1шт.

29

87016

WASHER,0.41" ID x 0.81" OD x 0.07" Thk

1шт.

30

86640793

SPRING

1шт.

31

27697

WASHER,16.66mm ID x 27mm OD x 1.52mm Thk

.065" x .656" ID x 1.06" OD

3шт.

32

87609552

LEVER,173mm L

1шт.

33

36800

ROLLER BEARING

Cam Roller

1шт.

34

285072

WASHER,10.3mm ID x 22.2mm OD x 2.7mm Thk

(3/8")

1шт.

35

86509310

NUT,3/8" - 24, Gr 5

1шт.

36

166244

STOP

1шт.

37

848596

GEAR

39T, Includes: Ref. 38

1шт.

38

58148

SLEEVE

Shear Bolt

1шт.

39

86578266

SHEAR BOLT,12-24 x 1 1/2"

#12-24 x 1-1/2"

1шт.

41

88775

LUBE NIPPLE,1/4"-28

1шт.

42

87707051

HUB

Clutch, Includes: Ref. 43 & 44

1шт.

43

86900098

BUSHING,28.7mm ID x 31.84mm OD x 19.05mm L

2шт.

44

58147

SHEAR BOLT BUSHING,5.9mm ID x 17.36mm OD x 12mm L

1шт.

45

86502134

LATCH

1шт.

46

848852

CLUTCH

Knotter, Includes: Ref. 47 - 51

1шт.

47

86555352

PAWL

Knotter, Includes: Ref. 48 - 50

1шт.

48

9628503

NUT,3/8"-16, G5

1шт.

49

139881

ROLLER

1шт.

50

617446

RIVET,Csk, 1/2" x 1 3/8"

1шт.

51

617445

RIVET,Csk, 1/2" x 1 23/32"

1шт.

52

87972

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

1шт.

53

9636698

NUT,1/2"-13, GB

1шт.

54

18

SPRING

Safety Hook

1шт.

55

80754

COTTER PIN,3/16" OD x 1-1/2" OAL

1шт.

56

84443

SQUARE BOLT,3/8" - 16 x 3/4", Gr 2

1шт.

57

80680

LOCK WASHER,3/8 0.381 CST ZND

1шт.

58

48055

WASHER

2шт.

59

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

2шт.

60

9635082

NUT,5/16" - 18, Gr 5

1шт.

61

86509499

JAM NUT,3/8"-16, G2

4шт.

62

84807411

THIN NUT,Thin, M10 x 1.5, Cl 04

4шт.

63

20356

NUT,1/4"-20, GB

2шт.

64

87361

WASHER,0.28" ID x 0.62" OD x 0.07" Thk

2шт.

65

87845

BOLT,Hex, 1/4" - 20 x 2 1/2", Gr 5

2шт.

66

87414

LUBE NIPPLE,1/4" - 28

Used with Ref. 24

1шт.

66

571382

LUBE NIPPLE,1/4"-28 NPT x 1.62" lg

Used with Ref. 11

1шт.

68

80681

LOCK WASHER,5/16"

3шт.

69

10205810

WOODRUFF KEY,4mm x 6.5mm x 15.72mm

1шт.

70

9636711

BOLT,Hex, 5/16 - 18" x 2", Gr 5

2шт.

71

280266

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5, Full Thd

1шт.

72

48055

WASHER

2шт.

73

86629544

NUT,5/16” – 18, GR B

1шт.
