Запчасти Case IH SB531 (62.150.02[1]) - PLUNGER, SB531 (62) - PRESSING - BALE FORMATION

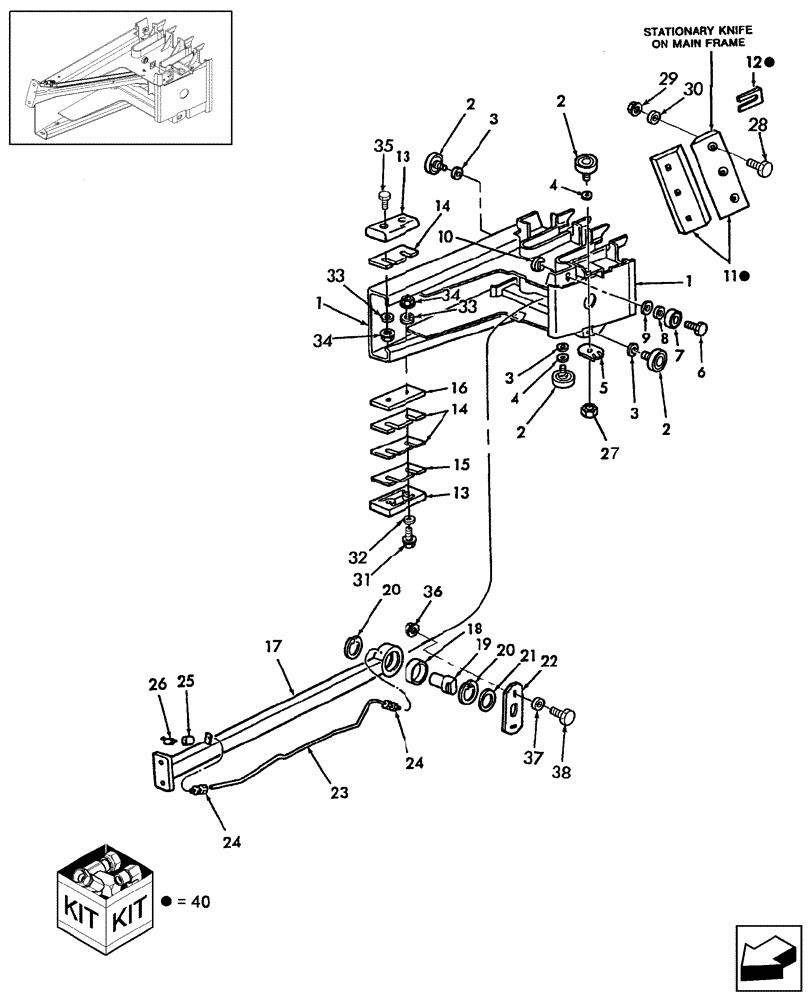

Схема запчастей Case IH SB531 - (62.150.02[1]) - PLUNGER, SB531 (62) - PRESSING - BALE FORMATION
2
37
19
10
6
14
27
8
24
14
9
3
16
34
1
17
2
33
20
7
13
31
26
28
4
11
33
18
24
35
15
3
12
2
13
3
20
32
40
25
36
22
2
38
23
1
4
29
5
30
21
34

Артикул

Название

Примечание

Количество

1

9807793

PLUNGER

1шт.

2

688282

BALL BEARING,0.748" ID x 63.5 mm OD x 22.6 mm

Plunger

4шт.

3

86512328

WASHER,19.46mm ID x 35.05mm OD x 3.43mm Thk

3шт.

4

86629517

WASHER

Sq, 1-3/8"

4шт.

5

691326

CAM

1шт.

6

88062

BOLT,Hex, 5/8" - 11 x 1 1/2", Gr 8

1шт.

7

165484

BALL BEARING,15.94mm ID x 50.8mm OD x 15mm W

1шт.

8

27367

WASHER,16.67mm ID x 31.75mm OD x 3.43mm Thk

1шт.

9

86977690

LOCK WASHER,Ext Tooth, 5/8"

1шт.

10

284620

BEARING LOCK NUT

Bearing

1шт.

11

625972

KNIFE,342.9mm L x 76.99mm W x 9.13mm Thk

Slicing

2шт.

12

686876

SHIM,.010" Thk

1шт.

12

686877

SHIM,.024" Thk

1шт.

13

848530

GUIDE

Slide, Plunger

2шт.

14

848533

SHIM,0.8mm Thk

1шт.

15

848534

SHIM,1.5mm Thk

2шт.

16

848536

SPACER

1шт.

17

848545

CONNECTING ROD

1шт.

18

848532

SPHERICAL BEARING,38.09mm ID x 61.91mm OD x 33.3mm W

Spherical

1шт.

19

848535

PIN,45mm OD x 91mm L

1шт.

20

370012

RING,M62, Internal

2шт.

21

443076

WASHER

1шт.

22

848531

PLATE

1шт.

23

848537

TUBE

Grease

1шт.

24

11787

FITTING,3/8"-24 Fem x 1/8" NPT

Includes: Ref. 41 & 42

2шт.

25

91932

COUPLING,1/8" - 27 NPT x 1/8" - 27 NPT

1/8" NPT

1шт.

26

80719

LUBE NIPPLE,1/8" NPT

1шт.

27

86547668

LOCK NUT,3/4" - 16, GB

4шт.

28

280320

PLOW BOLT,#3, 1/2" - 13 x 1 1/2", Gr 5, Full Thd

6шт.

29

280431

NUT,1/2"-13, G5

6шт.

30

86513238

LOCK WASHER,.515” ID x 1.070” OD x .120” TK

Belleville, 1/2"

6шт.

31

374892

CARRIAGE BOLT,M10 x 1.5 x 40mm, Cl 8.8

Bottom Slide

2шт.

32

35097

WASHER,10.3mm ID x 25.4mm OD x 5mm Thk

2шт.

33

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

34

100016

NUT,M10 x 1.5, Cl 8

4шт.

35

86512446

CARRIAGE BOLT,M10 x 1.5 x 30mm, Cl 8.8

2шт.

36

89706690

NUT,M8, Cl 8

2шт.

37

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

2шт.

38

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

40

87012132

KIT

Plunger Knife

1шт.

41

13362

SLEEVE,Compression, 3/16" Tube

2шт.

Not Illustrated

1шт.

42

13367

NUT,3/8" - 24

2шт.

Not Illustrated

1шт.

Выбрано товаров: 44
