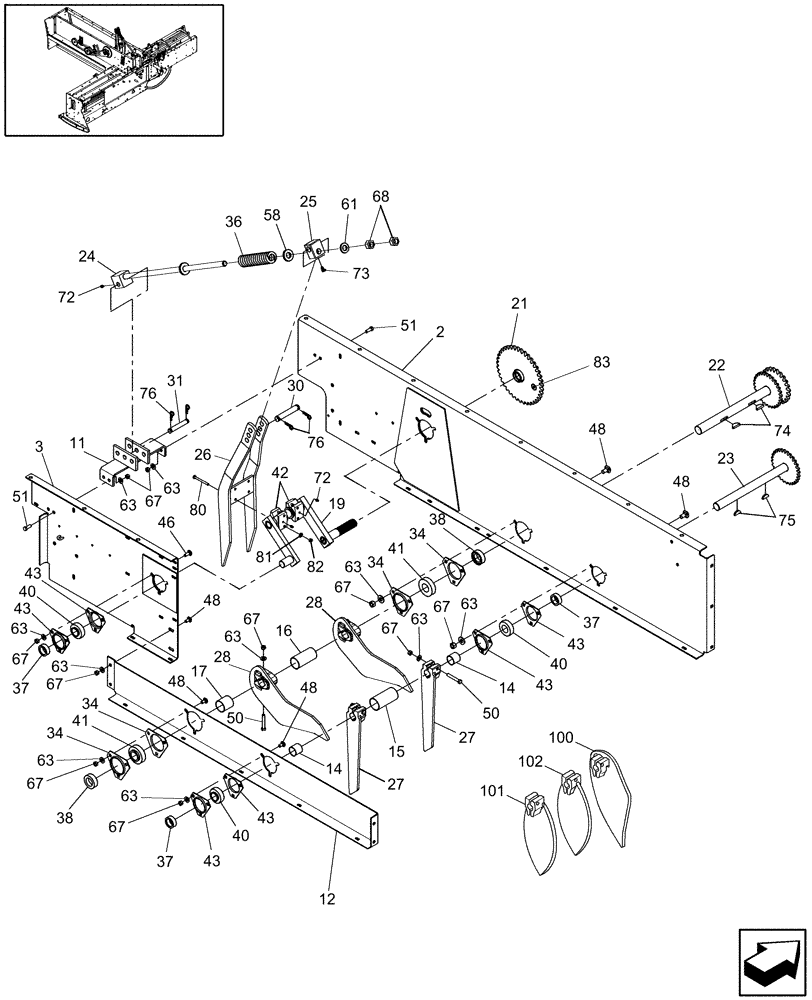

Запчасти Case IH SB531 (60.220.05[1]) - FEEDER FINGERS, SB531 (60) - PRODUCT FEEDING

2

87741340

FEEDER

Front

1шт.

3

87741346

FEEDER

Rear

1шт.

11

9845351

BRACKET

1шт.

12

848769

SUPPORT

Rotor

1шт.

14

9822653

SHIELD

2шт.

15

9820206

SHIELD

1шт.

16

9820205

SHIELD

1шт.

17

9822667

SHIELD

1шт.

19

9801475

LINK CONROD

1шт.

21

9822718

DRIVEN SPROCKET

39T, Includes: Ref. 83

1шт.

22

86526406

SHAFT

LH, 23T / 28T

1шт.

23

9821774

SHAFT

RH

1шт.

24

848690

ROD

1шт.

25

848689

PIN

Pivot

1шт.

26

86508203

FINGER

RH

1шт.

27

86641567

FINGER

Center

2шт.

North America

1шт.

27

86511493

FINGER

Center

2шт.

Australia

1шт.

28

86641566

FINGER

LH

2шт.

North America

1шт.

28

86511491

FINGER

LH

2шт.

Australia

1шт.

30

848686

CLEVIS PIN

2шт.

31

849361

PIN

2шт.

34

86620026

FLANGED BEARING

4шт.

36

13935

SPRING

Bale Tension

2шт.

37

38767

COLLAR,Lock, 31.9mm ID x 44mm OD 15.9mm Thk

3шт.

38

47067

RETAINER COLLAR,34.92mm ID x 56.33mm OD x 17.46mm Thk

2шт.

40

84484181

BALL BEARING,31.75mm ID x 62mm OD x 18mm W

3шт.

40

84484181GV

BEARING ASSY

Value, Ball Bearing

3шт.

41

47066

BALL BEARING,35mm ID x 72mm OD x 19mm W

2шт.

42

86518258

BEARING ASSY

Includes: Ref. 80 - 82

2шт.

43

86548970

FLANGED BEARING

6шт.

46

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

12шт.

48

86508748

CARRIAGE BOLT,Short Square Neck, 3/8" - 16 x 3/4", Grade 5

23шт.

50

87936

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 5

4шт.

51

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

58

86900099

WASHER

2шт.

61

87381

WASHER,0.81" ID x 1.47" OD x 0.13" Thk

1шт.

63

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

25шт.

67

9628503

NUT,3/8"-16, G5

25шт.

68

9706694

NUT,Hex, M20, Cl 8

2шт.

72

87414

LUBE NIPPLE,1/4" - 28

1шт.

73

87415

LUBE NIPPLE,90 Degree, 1/4" NPT x 3/4" L, Drive

2шт.

74

47609

WOODRUFF KEY,#25, 5/16" x 1 1/2", HT

2шт.

75

84361

WOODRUFF KEY,#21, 1/4" x 1 1/4"

2шт.

76

216698

COTTER PIN,0.125" OD x 1.75" L

4шт.

80

43133

BOLT,Hex, M8 x 1.25 x 80mm, Cl 8.8

4шт.

81

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

4шт.

82

9706690

NUT,M8 x 1.25, Cl 8

4шт.

83

80046060

SLEEVE

Shear Bolt

1шт.

Press Fit

1шт.

Not Illustrated

1шт.

100

86511491

FINGER

Feeder, Teardrop Option, LH

2шт.

101

86511492

FINGER

Feeder, Teardrop Option, Center

2шт.

102

86511493

FINGER

Feeder, Teardrop Option, RH

2шт.
