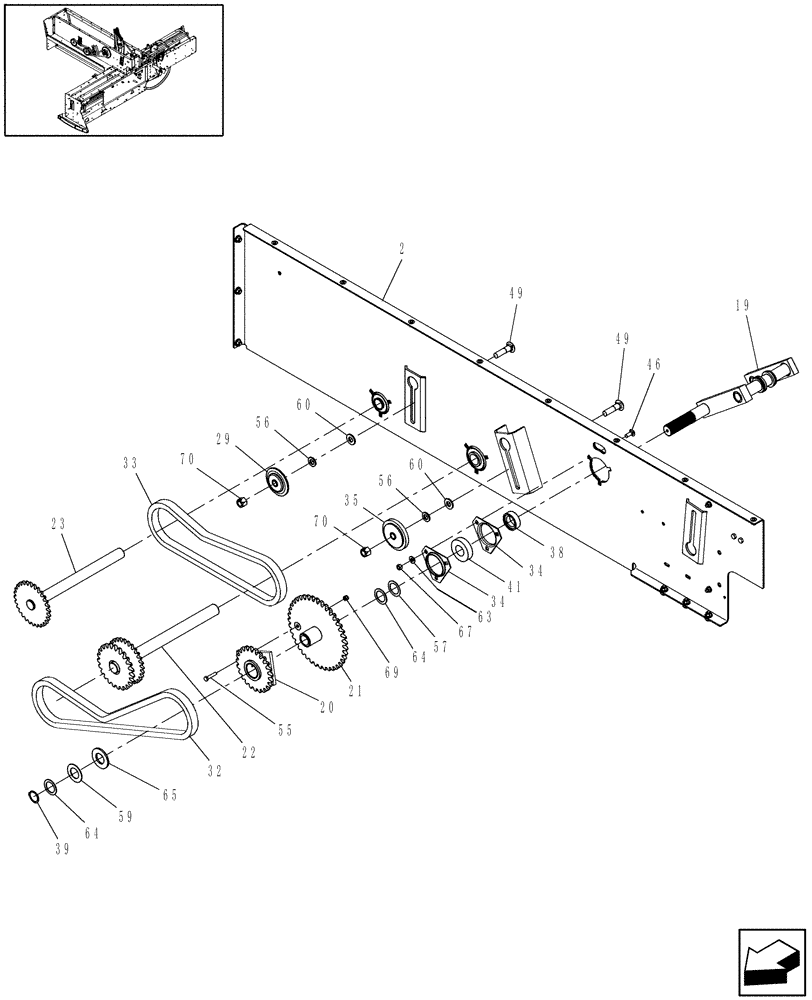

Запчасти Case IH SB531 (60.220.04[1]) - FEEDER FINGER DRIVE, SB531 (60) - PRODUCT FEEDING

2

87741340

FEEDER

Front

1шт.

19

9801475

LINK CONROD

1шт.

20

9822717

ARM

1шт.

21

9822718

DRIVEN SPROCKET

39T, Includes: Ref. 83

1шт.

22

86526406

SHAFT

LH, 23T / 28T

1шт.

23

9821774

SHAFT

RH

1шт.

29

103244

SPROCKET

17T

1шт.

32

9847046

CHAIN

#60H Riveted Type, 84 Total Pitches, 3/4" Pitch, Includes: Ref. 73 & 74

1шт.

33

848756

CHAIN

#R606 Riveted Type, 80 Total Pitches, 5/8" Pitch, Includes: Ref. 71 & 72

1шт.

34

86620026

FLANGED BEARING

2шт.

35

511265

SPROCKET

1шт.

38

47067

RETAINER COLLAR,34.92mm ID x 56.33mm OD x 17.46mm Thk

1шт.

39

9671424

SNAP RING,#137, Ext

1шт.

41

47066

BALL BEARING,35mm ID x 72mm OD x 19mm W

1шт.

46

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

3шт.

49

280466

CARRIAGE BOLT,Short Sq Nk, 5/8" - 11 x 2 1/2", Gr 5

2шт.

55

46402

SHEAR BOLT

3шт.

56

49637

WASHER,16.5mm ID x 30mm OD x 2.99mm Thk

2/ARшт.

57

58630

WASHER,.0299" Thk

1шт.

59

130357

WASHER,35.3mm ID x 60.3mm OD x 1.52 Thk

1шт.

60

87365

WASHER,0.66" ID x 1.31" OD x 0.1" Thk

2/ARшт.

63

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

3шт.

64

9800957

WASHER,35.81mm ID x 50.8mm OD x 1.52mm Thk

2/ARшт.

65

36732

WASHER

1шт.

67

9628503

NUT,3/8"-16, G5

3шт.

69

86629544

NUT,5/16” – 18, GR B

4шт.

70

19670

NUT,5/8"-11, GB

2шт.

71

25194

CONNECTING LINK

Spring Clip

1шт.

Not Illustrated

1шт.

72

25805

LINK CHAIN

Regular

79шт.

Not Illustrated

1шт.

73

785210

LINK,19.05mm Pitch

Spring Clip

1шт.

Not Illustrated

1шт.

74

187609

CONNECTING LINK

Regular

83шт.

Not Illustrated

1шт.
