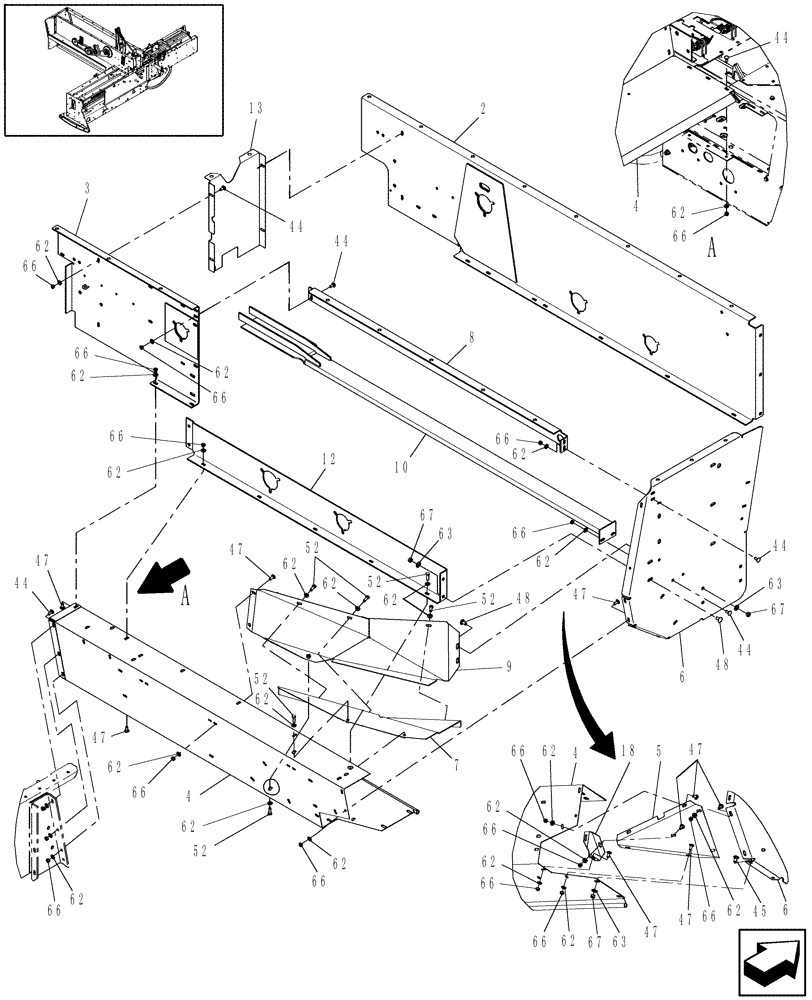

Запчасти Case IH SB531 (60.220.03[1]) - FEEDER SHIELDS, SB531 (60) - PRODUCT FEEDING

2

87741340

FEEDER

Front

1шт.

3

87741346

FEEDER

Rear

1шт.

4

84128991

FLOOR

Feeder

1шт.

5

86635544

STEEL PLATE

Corner

1шт.

6

84133791

SUPPORT

1шт.

7

86626124

SUPPORT

1шт.

8

87716777

SUPPORT

1шт.

9

86626121

PANEL SUPPORT

Corner

1шт.

10

849389

GUARD

Hay

1шт.

12

848769

SUPPORT

1шт.

13

87673700

PROTECTION PLATE

1шт.

18

87753027

FILLER

1шт.

44

280327

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5, Full Thd

14шт.

45

280430

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

47

280497

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 3/4", Gr 5, Full Thd

19шт.

48

86508748

CARRIAGE BOLT,Short Square Neck, 3/8" - 16 x 3/4", Grade 5

4шт.

52

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

7шт.

62

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

33шт.

63

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

6шт.

66

9635082

NUT,5/16" - 18, Gr 5

33шт.

67

9628503

NUT,3/8"-16, G5

6шт.
