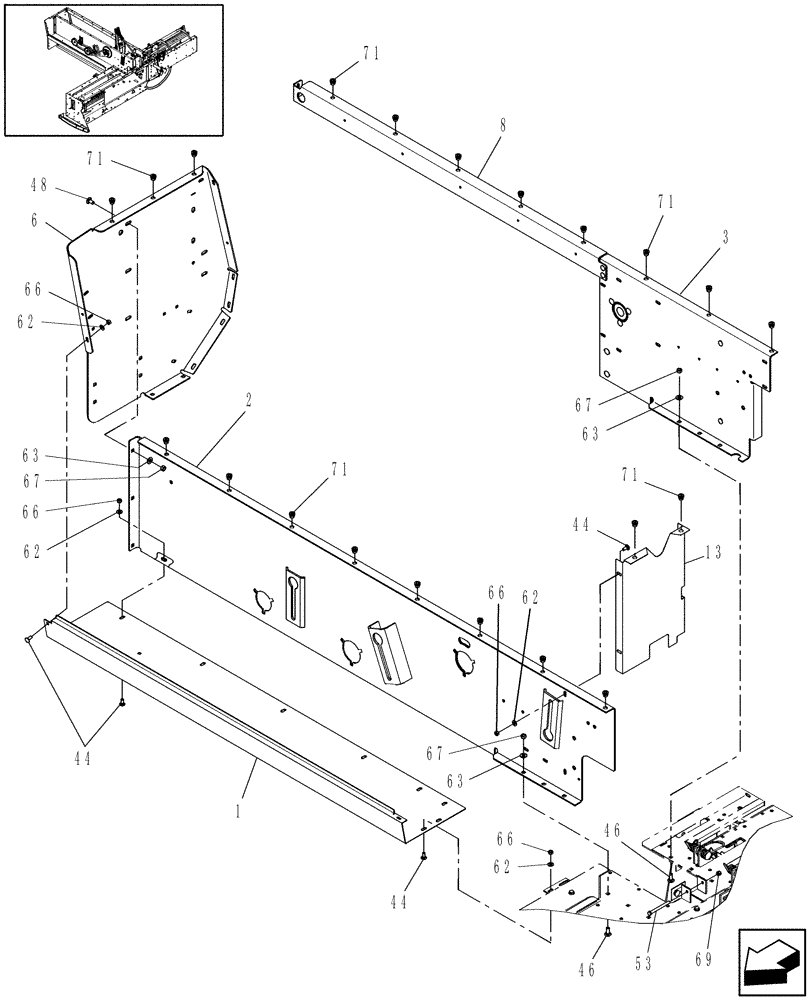

Запчасти Case IH SB531 (60.220.01[1]) - FEEDER FRAME, SB531 (60) - PRODUCT FEEDING

1

87705271

FEEDER

1шт.

2

87741340

FEEDER

1шт.

3

87741346

FEEDER

1шт.

6

84133791

SUPPORT

1шт.

8

87716777

SUPPORT

1шт.

13

87673700

PROTECTION PLATE

1шт.

44

280327

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5, Full Thd

11шт.

46

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

6шт.

48

86508748

CARRIAGE BOLT,Short Square Neck, 3/8" - 16 x 3/4", Grade 5

3шт.

53

86507008

BOLT,Hex, 5/16" - 18 x 3 1/2", Gr 5

1шт.

62

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

11шт.

63

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

9шт.

66

9635082

NUT,5/16" - 18, Gr 5

11шт.

67

9628503

NUT,3/8"-16, G5

9шт.

69

86629544

NUT,5/16” – 18, GR B

1шт.

71

86610200

THREADED INSERT,M8 x 1.25

13шт.
