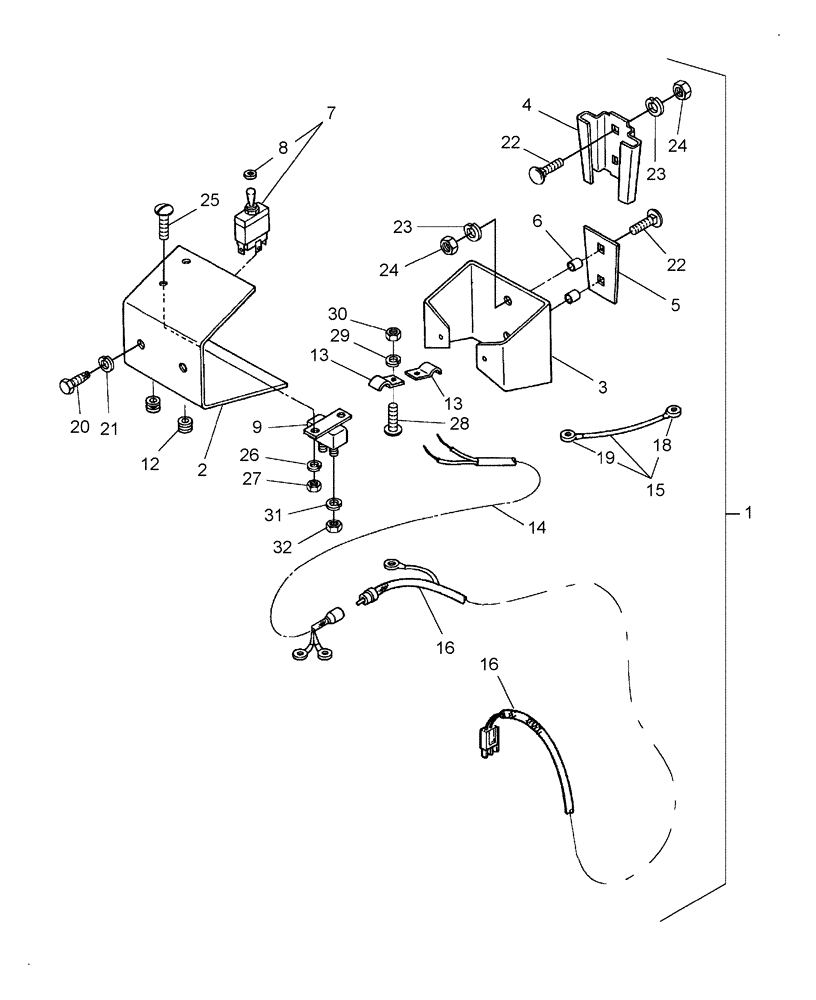

Запчасти Case IH SB531 (55.404.02) - LIGHTING CONTROL PANEL, WORKLAMPS (55) - ELECTRICAL SYSTEMS

1

87060719

CONTROL UNIT

1шт.

Refer to Installation Instructions for Correct Assembly Procedure.

1шт.

2

86633391

PANEL

1шт.

3

86633392

COVER

1шт.

4

847590

BRACKET

1шт.

Attach Near Tractor Seat For Mounting Electric Control Box In A Convenient Location For The Operator.

1шт.

5

9801636

BRACKET

1шт.

6

86633393

SPACER

2шт.

7

86536110

TOGGLE SWITCH

Work Lights

1шт.

8

619099

WASHER

1шт.

9

768115

CIRCUIT BREAKER

15A

1шт.

11

PL

PROCURE LOCALLY

14 Ga. x 4", Ref., Serial Range: 16-Ground

1шт.

12

46288

GROMMET

2шт.

13

44429

CLAMP,9.6mm ID, 10.3mm Bolt Hole, J Type

2шт.

14

87060709

WIRE HARNESS

Battery to Main Circuit Breaker in Tractor Cab

1шт.

15

87641177

WIRE HARNESS

Work Light Switch to Main Circuit Breaker in Tractor Cab

1шт.

16

87641176

WIRE HARNESS

Work Light Switch to Light Connector on Harness

1шт.

18

46431

TERMINAL CONNECTOR,16 - 14 SAE

Ring, #10

2шт.

19

PL

PROCURE LOCALLY

Terminal Ring, #6

5шт.

20

87667

SELF-TAP SCREW,Hex Hd, 1/4" x 1/2"

2шт.

21

80682

LOCK WASHER,1/4"

2шт.

22

280428

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 1", Gr 5

2шт.

23

80681

LOCK WASHER,5/16"

2шт.

24

9635082

NUT,5/16" - 18, Gr 5

2шт.

25

81743

SCREW,Slotted Truss Hd, #8 - 32 x 1/2"

2шт.

26

87812

LOCK WASHER,#8

2шт.

27

87653

NUT,#8-32

2шт.

28

87101

SCREW,Truss HD, 3/8" - 16 x 3/4"

1шт.

29

80680

LOCK WASHER,3/8 0.381 CST ZND

1шт.

30

9628503

NUT,3/8"-16, G5

1шт.

31

80684

LOCK WASHER,4.9mm ID x 8.48mm OD x 1.19mm Thk

2шт.

32

87825

NUT,#10-32

2шт.
