Запчасти Case IH SB531 (55.404.01) - WORKLAMPS KIT, NORTH AMERICA & AUSTRALIA (55) - ELECTRICAL SYSTEMS

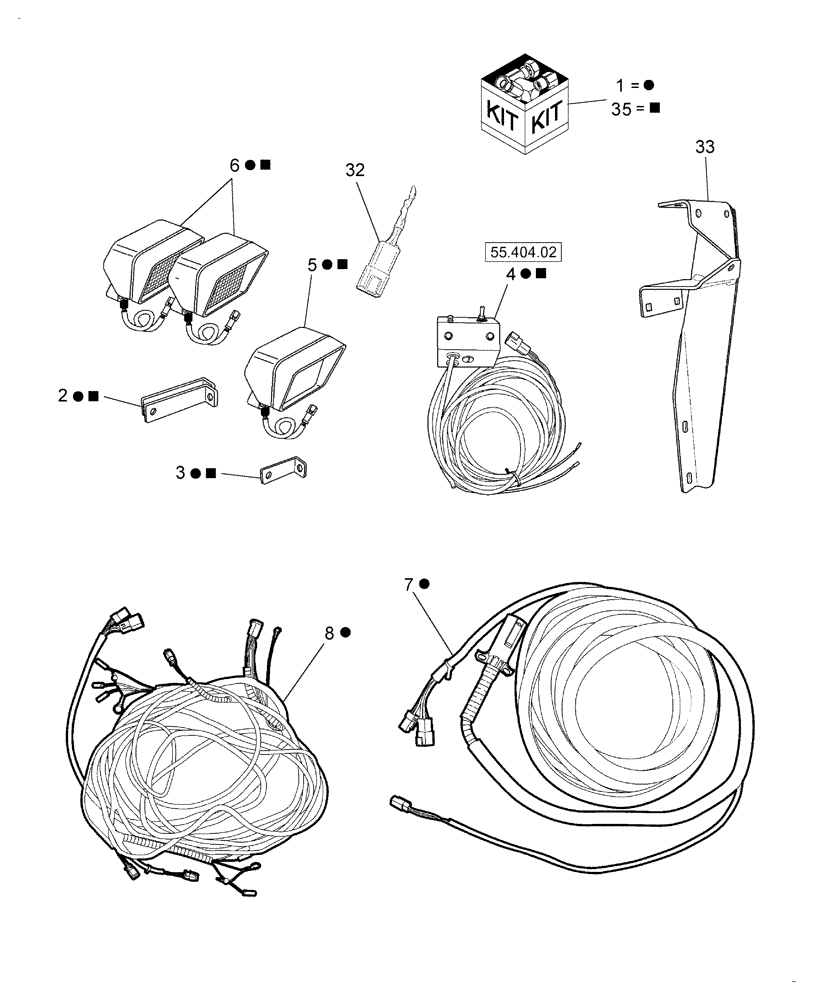

Схема запчастей Case IH SB531 - (55.404.01) - WORKLAMPS KIT, NORTH AMERICA & AUSTRALIA (55) - ELECTRICAL SYSTEMS
35
4
2
3
32
55.404.02
1
6
5
33
8
7

Артикул

Название

Примечание

Количество

1

87740470

KIT

Work Lights, North America

1шт.

Refer to Installation Instructions for Correct Assembly Procedure.

1шт.

2

87718276

BRACKET

2шт.

3

87718275

BRACKET

1шт.

4

87060719

CONTROL UNIT

Refer to Fig. 06.15

1шт.

5

86522148

WORK LAMP

Spot

1шт.

6

86522147

WORK LAMP

Flood

2шт.

7

87665705

WIRE HARNESS

Front, Includes: 36 - 44

1шт.

8

87060804

WIRE HARNESS

Rear

1шт.

9

173011

GROMMET,1” ID x 1.750” OD x .500” Tk

4шт.

Not Illustrated

1шт.

10

853765

CLAMP,7.9mm, Coat, 10.3mm Bolt Hole, P Type

9шт.

Not Illustrated

1шт.

11

9706748

CLAMP,15.9mm, Coat, 8.7mm Bolt Hole, P Type

2шт.

Not Illustrated

1шт.

12

700514

CLAMP,3.8mm, Coat, M8 Bolt

1шт.

Not Illustrated

1шт.

13

619284

CLAMP,23.8mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

Not Illustrated

1шт.

14

682052

GROMMET

1шт.

Not Illustrated

1шт.

15

646223

STRAP,8.0" L

18шт.

Not Illustrated

1шт.

16

527350

STRAP

2шт.

Not Illustrated

1шт.

17

87725682

CLIP

5шт.

Not Illustrated

1шт.

18

86512420

CARRIAGE BOLT,Rnd Head, M8 x 1.25 x 20mm, Full Thd, Cl 8.8

2шт.

Not Illustrated

1шт.

19

86512446

CARRIAGE BOLT,M10 x 1.5 x 30mm, Cl 8.8

2шт.

Not Illustrated

1шт.

20

80664

WASHER,0.38" ID x 0.88" OD x 0.08" Thk

2шт.

Not Illustrated

1шт.

21

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

2шт.

Not Illustrated

1шт.

22

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

1шт.

Not Illustrated

1шт.

23

86513238

LOCK WASHER,.515” ID x 1.070” OD x .120” TK

3шт.

Not Illustrated

1шт.

24

9706690

NUT,M8 x 1.25, Cl 8

2шт.

Not Illustrated

1шт.

25

100016

NUT,M10 x 1.5, Cl 8

1шт.

Not Illustrated

1шт.

26

280431

NUT,1/2"-13, G5

3шт.

Not Illustrated

1шт.

27

768115

CIRCUIT BREAKER

15A

1шт.

Not Illustrated

1шт.

28

87725683

TERMINAL CONNECTOR,12 GA

.375"

3шт.

Not Illustrated

1шт.

29

87725684

TERMINAL CONNECTOR,10 - 12 GA

.250"

2шт.

Not Illustrated

1шт.

30

87725685

TERMINAL CONNECTOR,12 GA

#10

4шт.

Not Illustrated

1шт.

31

86512446

CARRIAGE BOLT,M10 x 1.5 x 30mm, Cl 8.8

1шт.

Not Illustrated

1шт.

32

87537164

WIRE HARNESS

Jumper, Lights

1шт.

Order Separately, Not Included in Kit

1шт.

Refer to Installation Instructions for Correct Assembly Procedure.

1шт.

Australia Only

1шт.

33

84133809

BRACKET

Used with Bale Thrower

1шт.

Order Separately, Not Included in Kit

1шт.

Refer to Installation Instructions for Correct Assembly Procedure.

1шт.

34

86547782

REFLECTOR,YELLOW

Yellow Retro Reflective, Used with Bale Thrower

1шт.

Order Separately, Not Included in Kit

1шт.

Not Illustrated

1шт.

35

87044840

KIT

Work Light Completing, Includes: Ref. 2 - 6, 9, 11, 15, 19, 20, 22, 23, 25 & 26 - 30

1шт.

To Add Work Lights on a Baler that Already has Road Lights Installed, Order 87044840 Work Light Completing Kit.

1шт.

Installation Instructions to Add Work Lights is Included in the Kit.

1шт.

36

84131530

SOCKET/RECEPTACLE

1шт.

Not Illustrated

1шт.

37

87707796

ELEC CONNECTOR

1шт.

Not Illustrated

1шт.

38

87421341

MULTIPOLE CONNECTOR,Male, 4 Pole

1шт.

Not Illustrated

1шт.

39

87707798

WEDGE

1шт.

Not Illustrated

1шт.

40

87710849

SOCKET/RECEPTACLE

1шт.

Not Illustrated

1шт.

41

84137504

MULTIPOLE CONNECTOR,Female, 7 Pole

1шт.

Not Illustrated

1шт.

42

87696144

ELEC. TERMINAL PIN,Male, 2 - 3.5 mm2

4шт.

Not Illustrated

1шт.

43

87697875

ELEC. TERMINAL PIN,Female, 2 - 3.6 mm2

5шт.

Not Illustrated

1шт.
