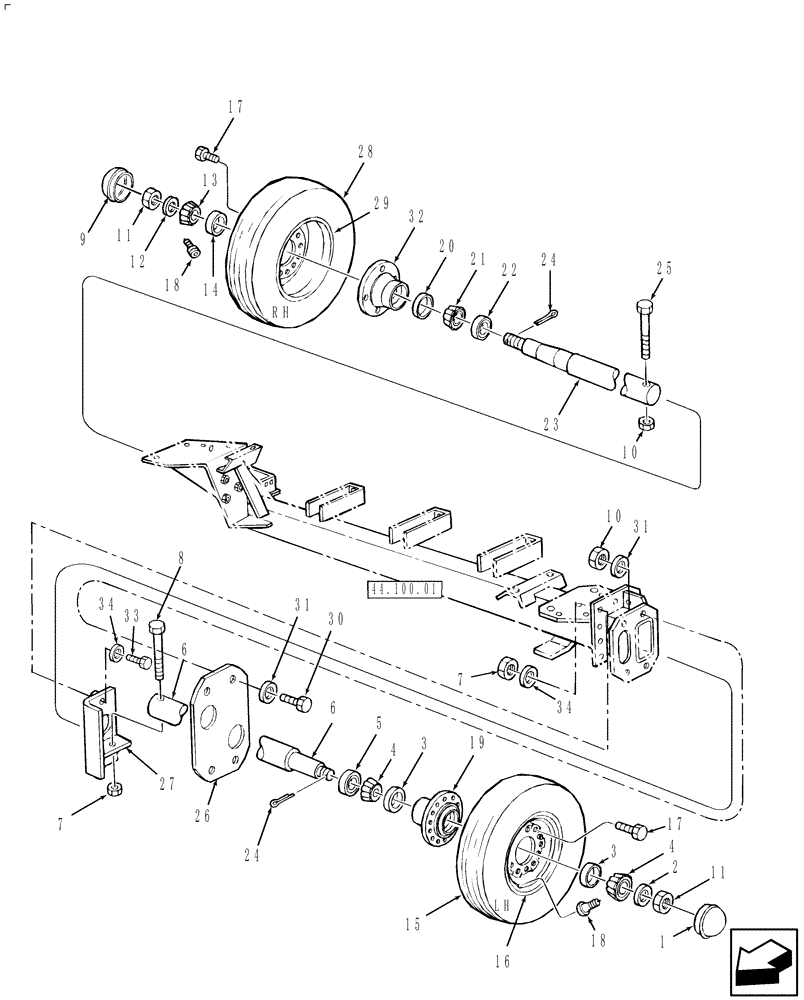

Запчасти Case IH SB531 (44.511.01) - WHEELS (44) - WHEELS

1

115940

HUB CAP

LH

1шт.

2

81543

WASHER,0.81" ID x 2" OD x 0.15" Thk

2шт.

3

72062

BEARING CUP,69.04mm OD x 15.08mm W

Bearing

2шт.

4

36057

BEARING CONE,38.11mm ID x 19.05mm W

2шт.

5

100412

SEAL,44.45mm ID x 69.19mm OD x 10.72mm Thk

1шт.

6

849410

SPINDLE

LH

1шт.

7

100038

NUT,M12 x 1.75, Cl 8

1шт.

8

412085

BOLT,Hex, M12 x 1.75 x 80mm, Cl 10.9

1шт.

9

26808

CAP

RH

1шт.

10

86000441

NUT,M16 x 2.0, Cl 8

5шт.

11

412106

SLOTTED NUT,M20 x 1.5, Cl 04

2шт.

12

86512839

WASHER,0.81" ID x 1.47" OD x 0.13" Thk

1шт.

13

574809

BEARING CONE,21.98mm ID x 16.64mm W

1шт.

14

574810

BEARING CUP,45.26mm OD x 12.06mm W

Bearing

1шт.

15

86564435

TYRE/TIRE

LH, Rib Implement, 31 x 13.50 - 15, 6 Ply

1шт.

16

87047834

WHEEL

15 x 10, Flotation

1шт.

16

87047831

WHEEL

16.1 x w11C, Hi-Flotation

1шт.

17

32383

BOLT,Wheel, G5, 1/2"-20 x 13/16"

Wheel, G5, 1/2"-20 x 13/16"

12шт.

18

86626246

VALVE STEM

1шт.

19

86836910

HUB

Wheel, LH

1шт.

20

36723

BEARING CUP,59.16mm OD x 11.81mm W

1шт.

21

36726

BEARING CONE,31.75mm ID x 16.76mm W

1шт.

22

36727

OIL SEAL,38.1mm ID x 59.28mm OD x 13.11mm Thk

Oil

1шт.

23

9847584

SPINDLE

RH

1шт.

24

84887

COTTER PIN,5/32" x 1 1/4"

1шт.

25

120093

BOLT,M16 x 2.0 x 90.18mm, Cl 8.8

1шт.

26

86629995

PLATE

1шт.

27

86630431

ANGLE

1шт.

28

224151

TYRE/TIRE

RH, Terra-Rib, 27 x 9.50 - 15 6 Ply

1шт.

29

86621299

WHEEL

1шт.

30

120090

BOLT,Hex, M16 x 50mm, Cl 8.8

4шт.

31

781316

WASHER,16.66mm ID x 28.45mm OD x 3.43mm Thk

8шт.

32

86631051

HUB

Wheel, RH

1шт.

33

9706702

BOLT,Hex, M12 x 1.75 x 50mm, Cl 8.8

2шт.

34

65319

WASHER,13.1mm ID x 25.4mm OD x 3.68mm Thk

4шт.
