Запчасти Case IH SB531 (90.105.52) - SHIELDS, FRONT & FLYWHEEL GUARD, SB531 AUSTRALIA (90) - PLATFORM, CAB, BODYWORK AND DECALS

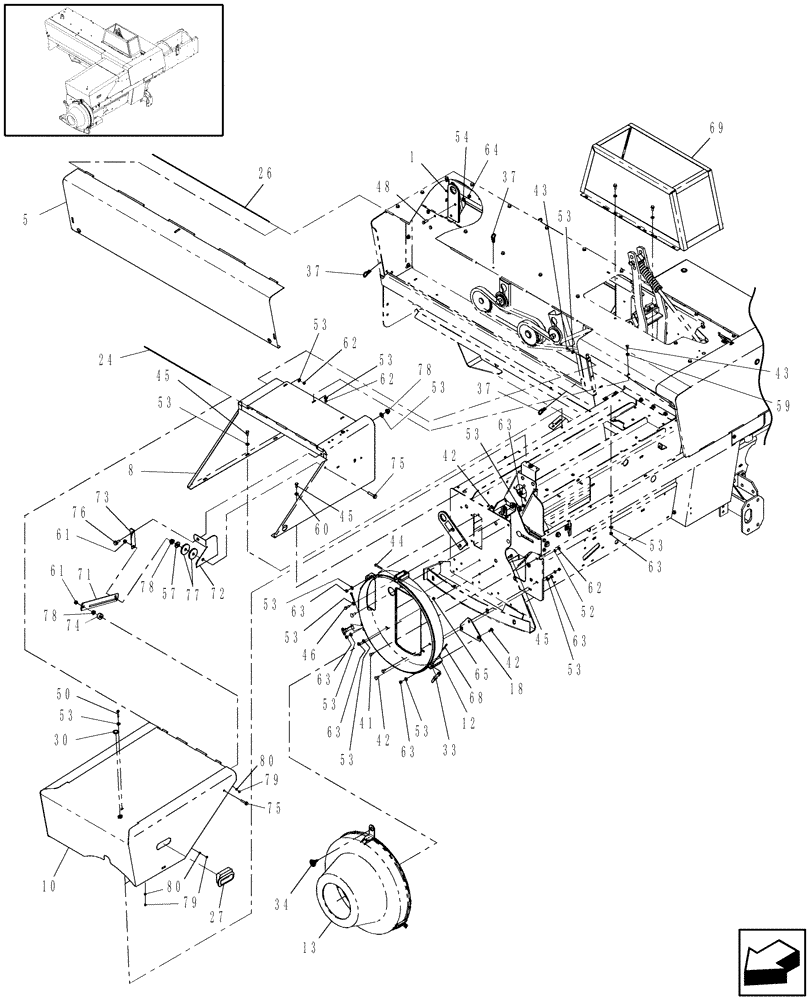

Схема запчастей Case IH SB531 - (90.105.52) - SHIELDS, FRONT & FLYWHEEL GUARD, SB531 AUSTRALIA (90) - PLATFORM, CAB, BODYWORK AND DECALS
79
26
62
18
24
78
61
75
27
48
61
33
46
53
80
50
63
42
53
62
53
53
37
76
62
79
37
45
53
53
53
12
71
45
69
73
63
42
1
80
45
72
44
30
63
43
63
63
5
42
57
78
37
53
34
52
63
75
77
64
53
8
53
53
65
59
53
43
63
54
41
10
13
53
53
78
60
68
74

Артикул

Название

Примечание

Количество

1

86630681

BRACKET

1шт.

5

87705266

DOOR

Front, Includes: Ref. 6

1шт.

6

86626958

WARNING DECAL

English

1шт.

8

87708956

FILLER

1шт.

10

87746174

HOOD

Includes: Ref. 14 - 18

1шт.

12

9615816

SHIELD

1шт.

13

86518330

PROTECTION CAP

1шт.

14

84014116

DECAL

1шт.

Not Illustrated. Refer to Decal Figures for Decal Placement.

1шт.

15

730650

DECAL

1шт.

Not Illustrated. Refer to Decal Figures for Decal Placement.

1шт.

16

84014115

DECAL

1шт.

Not Illustrated. Refer to Decal Figures for Decal Placement.

1шт.

17

84004744

IMPORTANT DECAL

1шт.

Not Illustrated. Refer to Decal Figures for Decal Placement.

1шт.

18

84004731

WARNING DECAL

1шт.

Not Illustrated. Refer to Decal Figures for Decal Placement.

1шт.

24

9604432

SPINDLE

1шт.

27

3962571

HANDLE

1шт.

30

285412

PLUG

1шт.

33

211495

HANDLE

2шт.

34

86512919

LATCH

1шт.

37

264552

FASTENER

3шт.

41

280638

CARRIAGE BOLT,Short NK, 1/4"-20 x 3/4", G5, Full Thd

1шт.

42

280497

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 3/4", Gr 5, Full Thd

4шт.

43

280641

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

6шт.

44

280164

BOLT,Hex, 1/4" - 20 x 1 3/4", Gr 5

1шт.

45

87872

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

8шт.

46

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

1шт.

48

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

52

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

1шт.

53

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

20шт.

54

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

2шт.

59

87361

WASHER,0.28" ID x 0.62" OD x 0.07" Thk

3шт.

60

87362

WASHER,5/16" SAE

3шт.

62

7770

NUT,Hex, 1/4 - 20, Cl 5

7шт.

63

9635082

NUT,5/16" - 18, Gr 5

11шт.

64

9628503

NUT,3/8"-16, G5

2шт.

65

20356

NUT,1/4"-20, GB

1шт.

68

80754

COTTER PIN,3/16" OD x 1-1/2" OAL

2шт.

69

87746186

COVER

1шт.

71

87749605

LATCH

1шт.

72

87749603

SUPPORT

1шт.

73

87749606

BRACKET

1шт.

74

87494304

SPACER

1шт.

75

280350

BOLT

2шт.

76

86521553

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

77

322

WASHER,8.73mm ID x 42.07mm OD x 3.43mm Thk

2шт.

78

86521605

FLANGE NUT,5/16"-18, Cl 5

3шт.

79

284422

BUMPER

6шт.

80

9824840

WASHER,4.3mm ID x 9mm OD x 0.8mm Thk

6шт.

Выбрано товаров: 51
