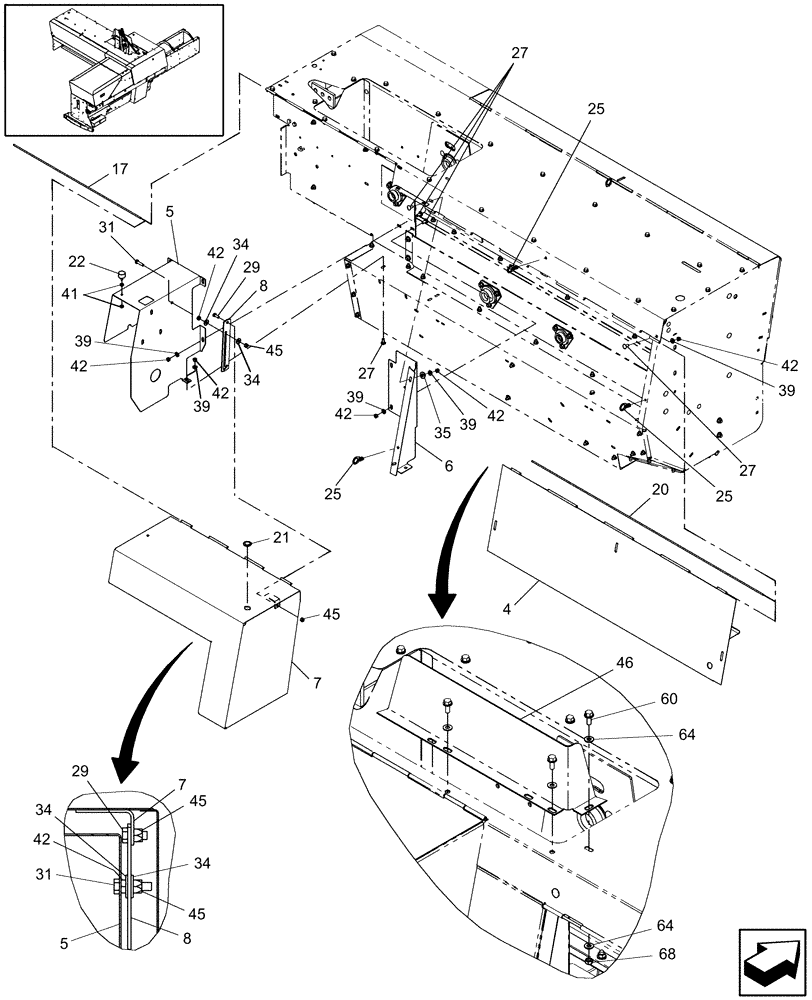

Запчасти Case IH SB531 (90.105.12) - SHIELDS, REAR, SB531 NORTH AMERICA (90) - PLATFORM, CAB, BODYWORK AND DECALS

3

86629205

WARNING DECAL

1шт.

Not Illustrated. Refer to Decal Figures for Decal Placement.

1шт.

4

87663978

DOOR

Includes: Ref. 3

1шт.

5

86635526

SHIELD

1шт.

6

87663979

SUPPORT

1шт.

7

86635524

COVER

1шт.

8

86629754

LATCH

1шт.

10

86635565

SUPPORT

1шт.

17

637576

PIN,4.76mm OD x 2057.4mm L

, Serial Range: Cut-Length

1шт.

20

255541

ROD

SPARE PART

1шт.

21

285412

PLUG

1шт.

22

9844656

BUMPER

1шт.

25

264552

FASTENER

3шт.

27

280497

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 3/4", Gr 5, Full Thd

11шт.

28

280641

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

2шт.

29

87872

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

31

87657

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 5

1шт.

32

86521552

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

34

80664

WASHER,0.38" ID x 0.88" OD x 0.08" Thk

2шт.

35

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

1шт.

38

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

4шт.

39

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

13шт.

41

7770

NUT,Hex, 1/4 - 20, Cl 5

1шт.

42

9635082

NUT,5/16" - 18, Gr 5

15шт.

45

86629544

NUT,5/16” – 18, GR B

2шт.

46

86630332

GUARD

1шт.

60

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.

64

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

2шт.

68

43362

NUT,M8 x 1.25, Cl 10

1шт.
