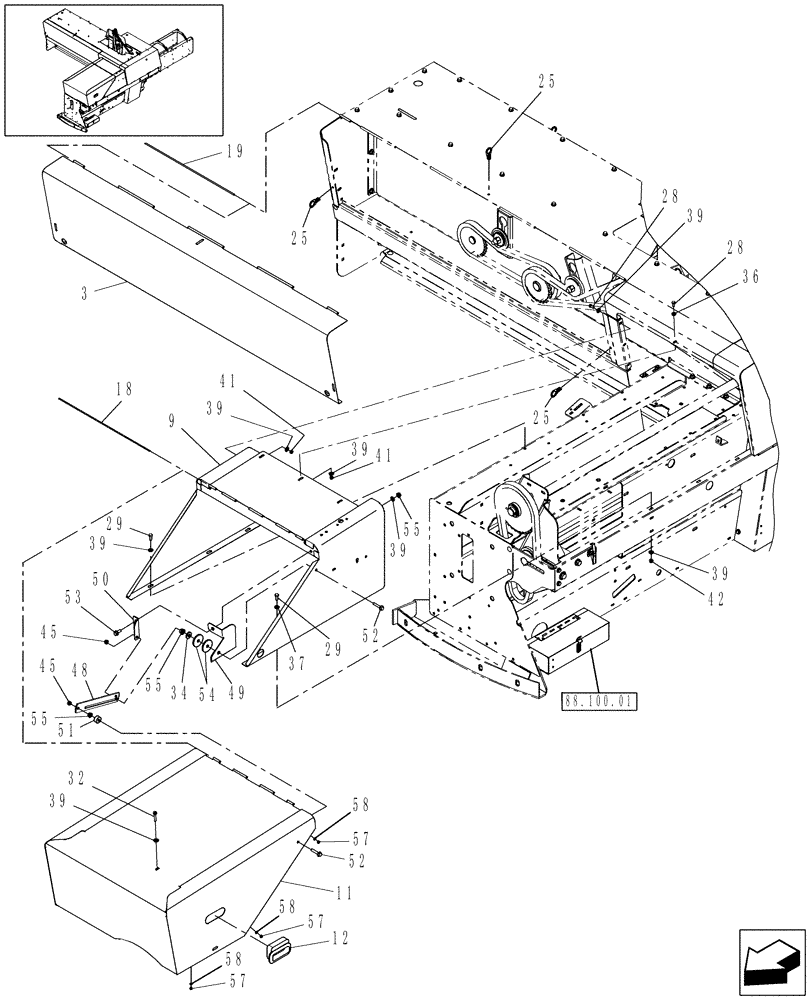

Запчасти Case IH SB531 (90.105.11) - SHIELDS, FRONT, SB531 , NORTH AMERICA (90) - PLATFORM, CAB, BODYWORK AND DECALS

3

87705265

DOOR

1шт.

4

86626958

WARNING DECAL

English

1шт.

Not Illustrated. Refer to Decal Figures for Decal Placement.

1шт.

9

87708956

FILLER

1шт.

11

87708949

HOOD

1шт.

12

3962571

HANDLE

1шт.

18

9604432

SPINDLE

1шт.

19

691829

PIN

1шт.

25

264552

FASTENER

3шт.

28

280641

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

6шт.

29

87872

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

6шт.

32

86977692

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 1 1/2"

1шт.

36

87361

WASHER,0.28" ID x 0.62" OD x 0.07" Thk

3шт.

37

87362

WASHER,5/16" SAE

3шт.

39

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

15шт.

41

7770

NUT,Hex, 1/4 - 20, Cl 5

6шт.

42

9635082

NUT,5/16" - 18, Gr 5

3шт.

48

87749605

LATCH

1шт.

45

86629544

NUT,5/16” – 18, GR B

2шт.

49

87749603

SUPPORT

1шт.

50

87749606

BRACKET

1шт.

51

87494304

SPACER

1шт.

52

280350

BOLT

2шт.

53

86521553

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

54

322

WASHER,8.73mm ID x 42.07mm OD x 3.43mm Thk

2шт.

55

86521605

FLANGE NUT,5/16"-18, Cl 5

3шт.

57

284422

BUMPER

6шт.

58

9824840

WASHER,4.3mm ID x 9mm OD x 0.8mm Thk

6шт.
