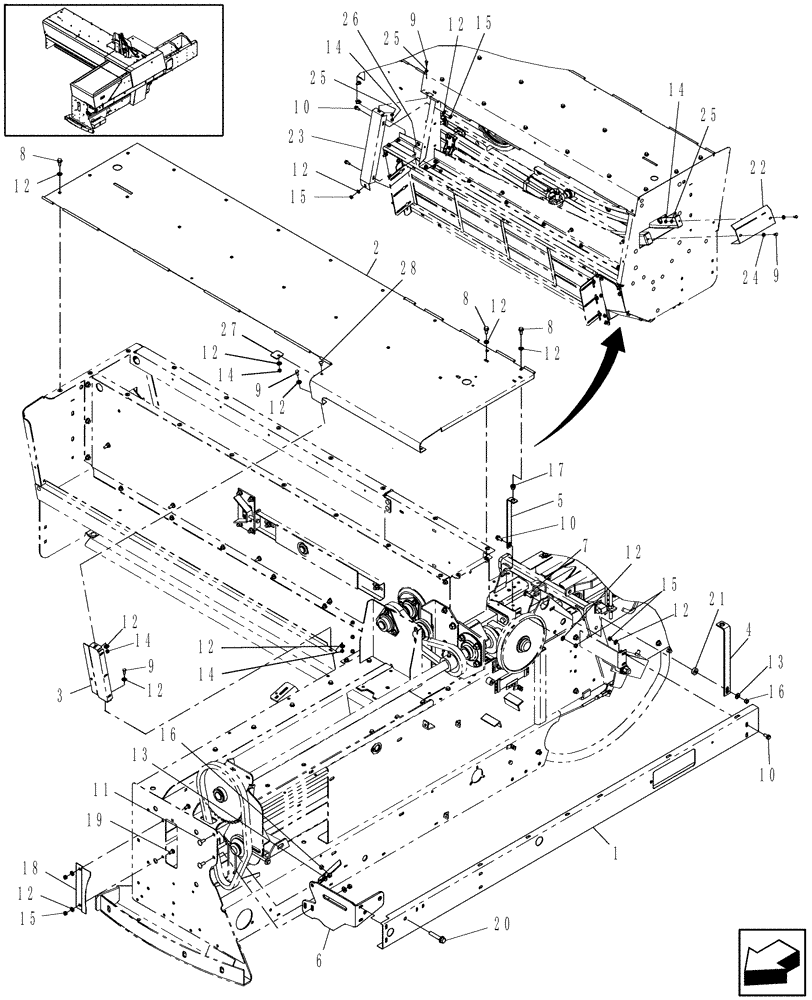

Запчасти Case IH SB521 (90.105.10) - HOUSING, FEEDER TOP (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

87721883

CHANNEL

1шт.

2

87705268

TOP COVER

1шт.

3

87746164

SUPPORT

1шт.

4

86640938

SUPPORT

1шт.

5

87475625

SUPPORT

1шт.

6

9848065

SUPPORT

1шт.

7

86508749

CARRIAGE BOLT,Short Square Neck, 3/8" - 16 x 1 1/4", Grade 5

1шт.

8

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

20шт.

9

280641

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

5шт.

10

86521552

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5шт.

11

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

12

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

33шт.

13

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

3шт.

14

7770

NUT,Hex, 1/4 - 20, Cl 5

6шт.

15

9635082

NUT,5/16" - 18, Gr 5

8шт.

16

9628503

NUT,3/8"-16, G5

3шт.

17

86610200

THREADED INSERT,M8 x 1.25

1шт.

18

848897

SHIELD

1шт.

19

280327

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5, Full Thd

2шт.

20

86521618

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

1шт.

21

607503

SPACER

1шт.

22

86635530

COVER

1шт.

23

9604434

BRACKET

1шт.

24

87361

WASHER,0.28" ID x 0.62" OD x 0.07" Thk

2шт.

25

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

4шт.

26

280497

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 3/4", Gr 5, Full Thd

1шт.

27

84134277

STOP

1шт.

28

280700

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 1/2", Gr 5, Full Thd

1шт.
