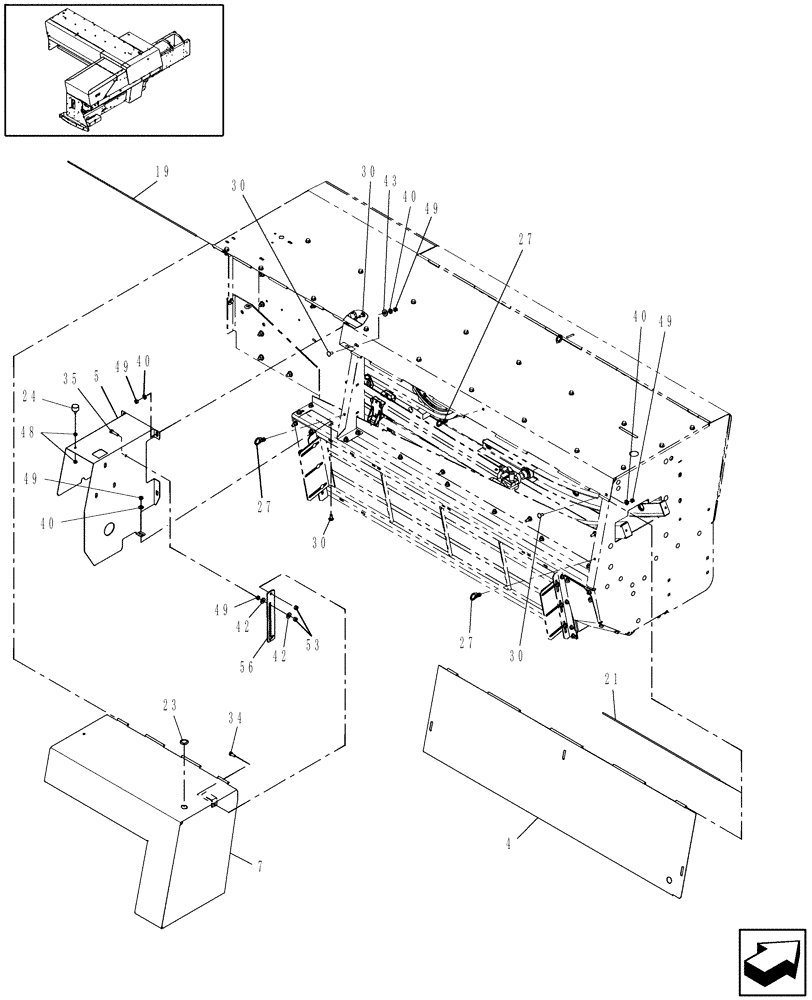

Запчасти Case IH SB521 (90.105.01) - SHIELDS, REAR (90) - PLATFORM, CAB, BODYWORK AND DECALS

4

86635515

DOOR

1шт.

5

86635526

SHIELD

1шт.

7

86635524

COVER

1шт.

19

637576

PIN,4.76mm OD x 2057.4mm L

, Serial Range: Cut-Length

1шт.

21

241294

PIN

1шт.

23

285412

PLUG

1шт.

24

9844656

BUMPER

1шт.

27

264552

FASTENER

3шт.

28

87494304

SPACER

1шт.

30

280497

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 3/4", Gr 5, Full Thd

8шт.

33

280641

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

3шт.

34

87872

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

11шт.

35

87657

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 5

1шт.

39

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

4шт.

40

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

10шт.

42

80664

WASHER,0.38" ID x 0.88" OD x 0.08" Thk

2шт.

43

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

1шт.

44

87361

WASHER,0.28" ID x 0.62" OD x 0.07" Thk

2шт.

48

7770

NUT,Hex, 1/4 - 20, Cl 5

5шт.

49

9635082

NUT,5/16" - 18, Gr 5

11шт.

53

86629544

NUT,5/16” – 18, GR B

2шт.

56

86629754

LATCH

1шт.

58

86977692

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 1 1/2"

1шт.
