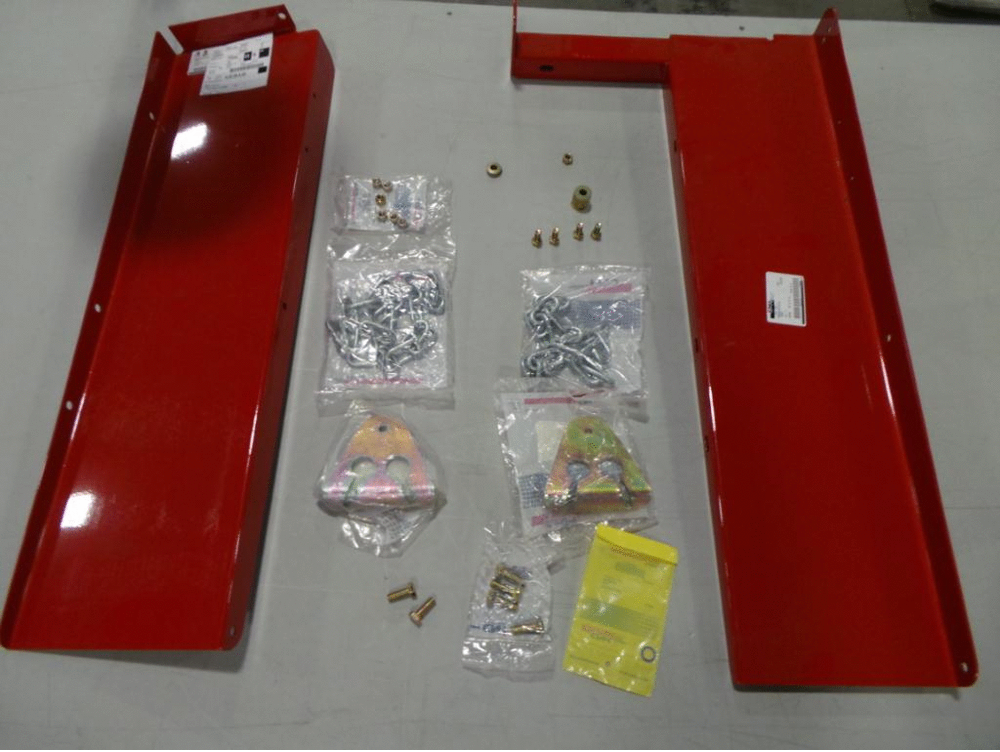

Запчасти Case IH SB521 (88.510.06) - KIT TRIPLE PURPOSE BALE CHUTE (88) - ACCESSORIES

1

47754086

KIT

Incl 2 - 14

1шт.

2

87727804

INSTRUCTION

1шт.

3

9637692

NUT,3/8"-16, GB

6шт.

4

88902

NUT,3/8"-16

1шт.

5

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

6

87727277

BRACKET

2шт.

7

86630008

CHUTE

1шт.

8

86630006

CHUTE

1шт.

9

86508749

CARRIAGE BOLT,Short Square Neck, 3/8" - 16 x 1 1/4", Grade 5

4шт.

10

86500692

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

4шт.

11

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

10шт.

12

51200224

WASHER

1шт.

13

196348

CHAIN,823.91mm L

2шт.

14

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.
