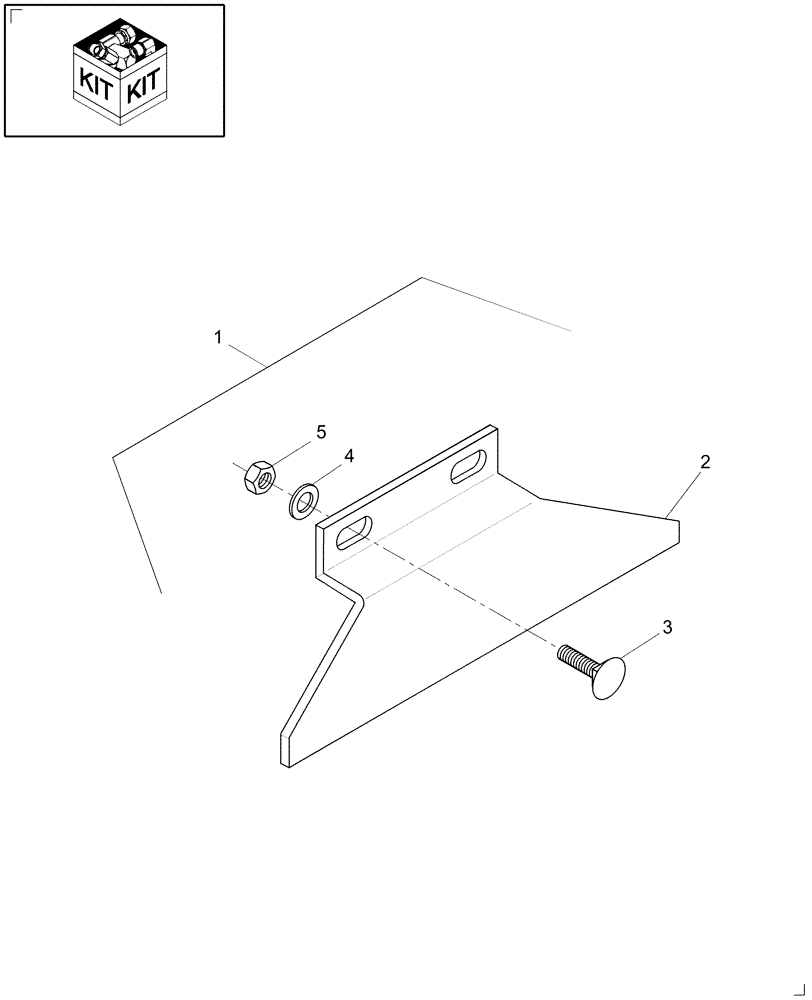

Запчасти Case IH SB521 (88.510.03) - TRASH GUARD KIT (88) - ACCESSORIES

1

87737439

DIA KIT, HARVESTER

Trash Guard, Includes: Installation Instructions

1шт.

Refer to Installation Instructions for Correct Assembly Procedure.

1шт.

2

577509

GUARD

1шт.

3

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

2шт.

4

87016

WASHER,0.41" ID x 0.81" OD x 0.07" Thk

2шт.

5

80680

LOCK WASHER,3/8 0.381 CST ZND

2шт.

6

9628503

NUT,3/8"-16, G5

2шт.
