(70.280.02) - BALE CHUTE, TRIPLE PURPOSE

Запчасти Case IH SB521 (70.280.02) - BALE CHUTE, TRIPLE PURPOSE (70) - EJECTION

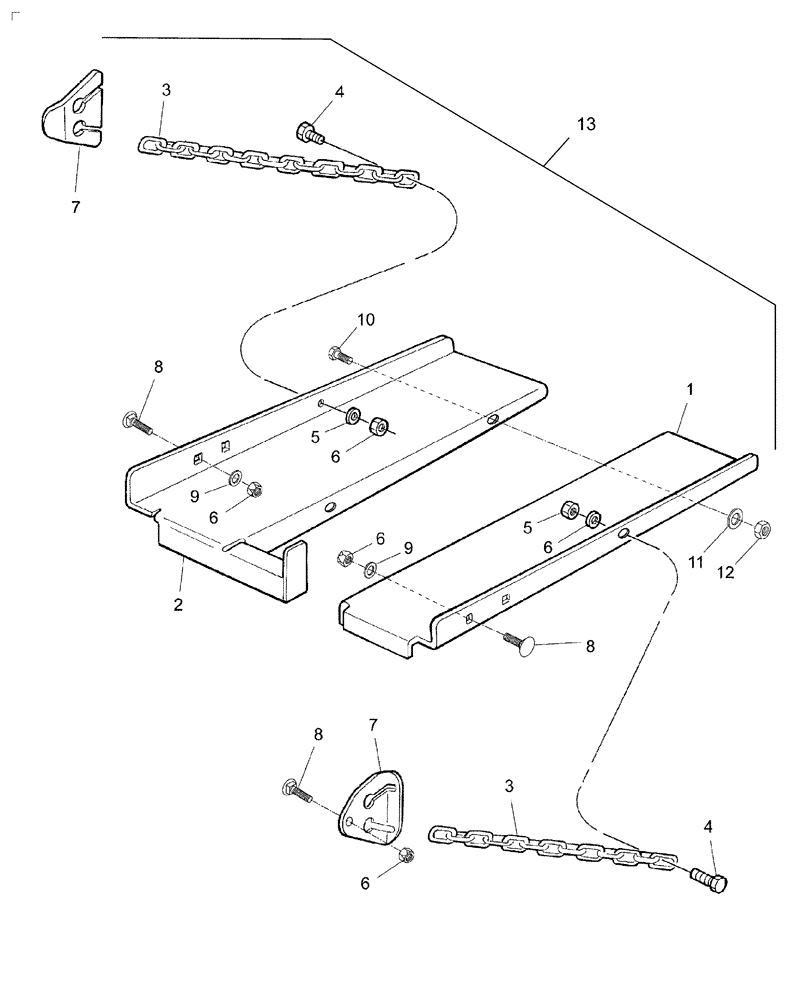

Схема запчастей Case IH SB521 - (70.280.02) - BALE CHUTE, TRIPLE PURPOSE (70) - EJECTION
4
11
6
6
8
5
1
6
8
2
9
5
3
10
3
12
8
9
7
4
13
6
6
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

86630006

CHUTE

Bale

1шт.

2

86630008

CHUTE

Rollover Bale Chute

1шт.

3

264035

CHAIN

Bale Chute

2шт.

4

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

5

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

2шт.

6

9637692

NUT,3/8"-16, GB

2шт.

7

86630012

BRACKET

Chain Adjustment

2шт.

8

86508749

CARRIAGE BOLT,Short Square Neck, 3/8" - 16 x 1 1/4", Grade 5

4шт.

9

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

6шт.

10

88434

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

11

80680

LOCK WASHER,3/8 0.381 CST ZND

4шт.

12

9628503

NUT,3/8"-16, G5

4шт.

13

715223006

DIA KIT, ADD PROD

Triple Purpose Bale Chute, Includes: Installation Instructions

1шт.

Refer to Installation Instructions for Correct Assembly Procedure.

1шт.
