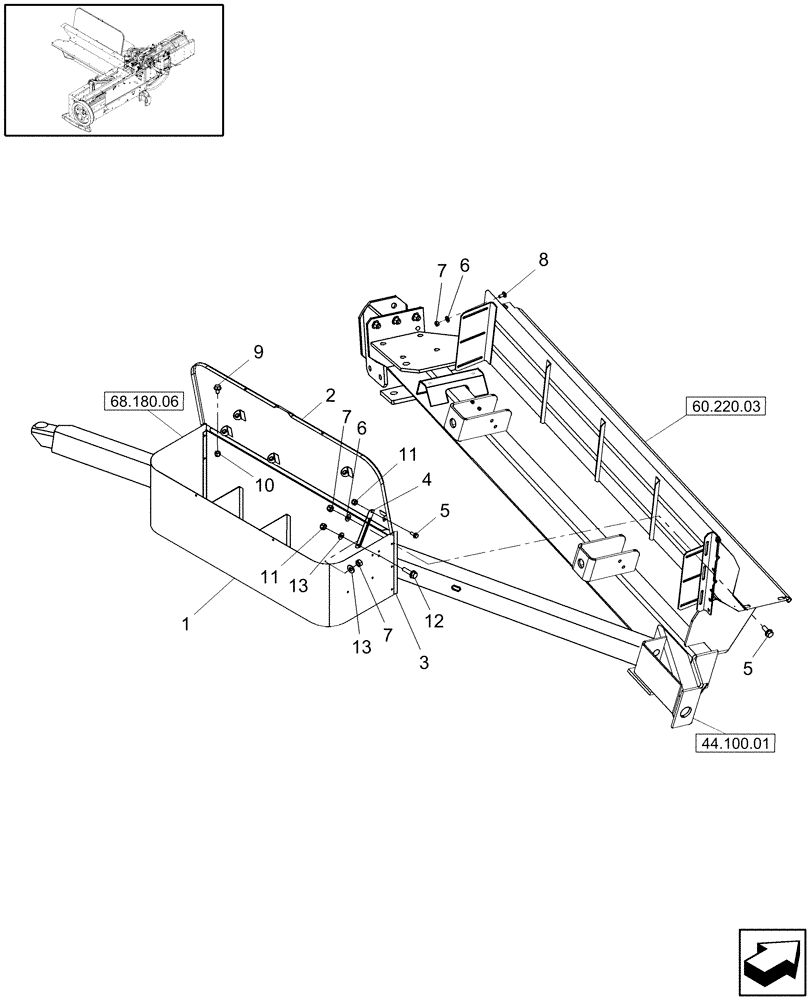

Запчасти Case IH SB521 (68.180.05) - TWINE BOX MOUNTING (68) - TYING/WRAPPING

1

86635453

BOX

Twine

1шт.

2

86635455

LID

Twine Box

1шт.

3

86640839

SUPPORT

Twine Box

2шт.

4

86629754

LATCH

Twine Box Lid

1шт.

5

86521552

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

7шт.

6

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

6шт.

7

9635082

NUT,5/16" - 18, Gr 5

7шт.

8

280327

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5, Full Thd

2шт.

9

523291

BOLT,Hex Serr Flg, 1/4" - 20 x 1/2"

4шт.

10

42576

NUT

2шт.

11

86629544

NUT,5/16” – 18, GR B

2шт.

12

280699

HEX SOC SCREW,5/16" - 18 x 1 1/4"

1шт.

13

80664

WASHER,0.38" ID x 0.88" OD x 0.08" Thk

2шт.
