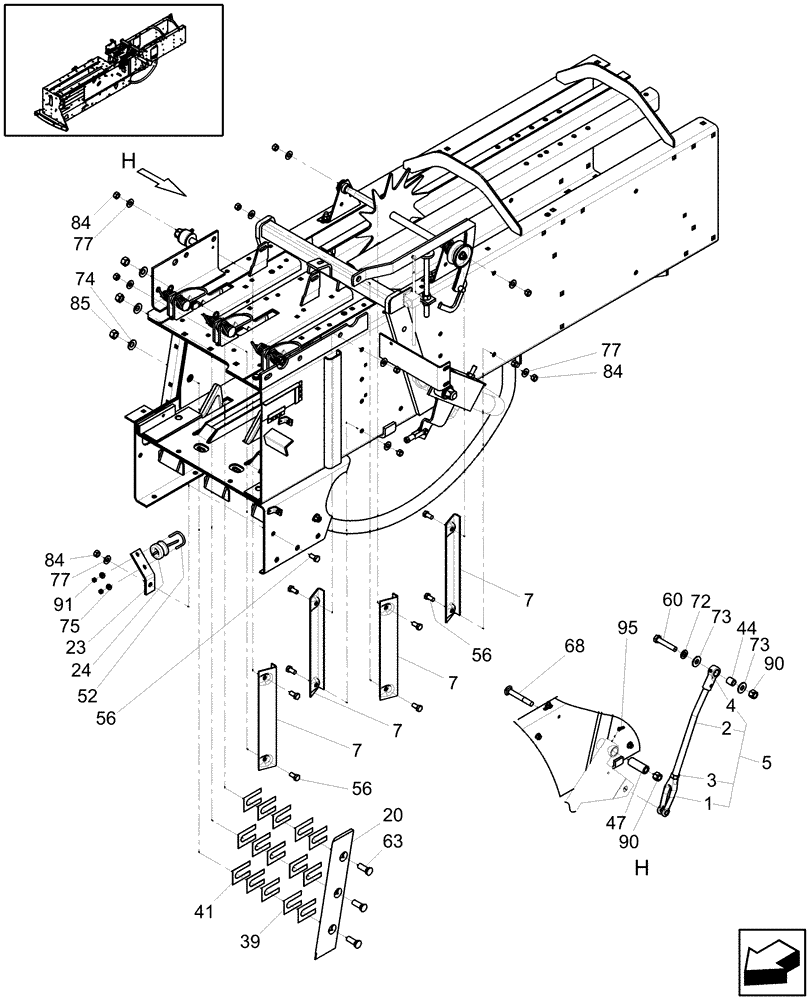

Запчасти Case IH SB521 (62.150.03) - STATIONARY KNIFE, NEEDLE YOKE ROD & HAY WEDGES (62) - PRESSING - BALE FORMATION

1

9604514

CLEVIS

1шт.

2

848472

ADJUSTMENT ROD

Needle Yoke

1шт.

3

320771

NUT,Thin, M20 x 1.5, Cl 04

1шт.

4

87414

LUBE NIPPLE,1/4" - 28

1шт.

5

0C

ORDER COMPONENTS

Needle Yoke Adjustment Rod

1шт.

7

32124

STOP

Hay

4шт.

20

625972

KNIFE,342.9mm L x 76.99mm W x 9.13mm Thk

Stationary

1шт.

23

848783

SUPPORT

1шт.

24

86543545

GUIDE

1шт.

39

67510

SHIM,0.254mm Thk

6/ARшт.

41

67606

SHIM,0.6mm Thk

9/ARшт.

44

132449

SPACER

1шт.

48

848470

SPACER

1шт.

53

28114

U-BOLT

1шт.

56

88434

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

9шт.

60

9827853

BOLT,Hex, 5/8" - 11 x 3 1/4", Gr 5

1шт.

63

280320

PLOW BOLT,#3, 1/2" - 13 x 1 1/2", Gr 5, Full Thd

3шт.

68

9602207

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 4 1/2", Gr 5

1шт.

72

49637

WASHER,16.5mm ID x 30mm OD x 2.99mm Thk

1шт.

73

86516680

WASHER

2шт.

74

86513238

LOCK WASHER,.515” ID x 1.070” OD x .120” TK

3шт.

75

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

2шт.

77

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

9шт.

84

9628503

NUT,3/8"-16, G5

9шт.

85

280431

NUT,1/2"-13, G5

3шт.

90

19670

NUT,5/8"-11, GB

2шт.

91

87304

NUT,#10-24

2шт.

95

87569

LUBE NIPPLE,45 Degree, 1/4" NPT x 4/5" L, Drive

2шт.
