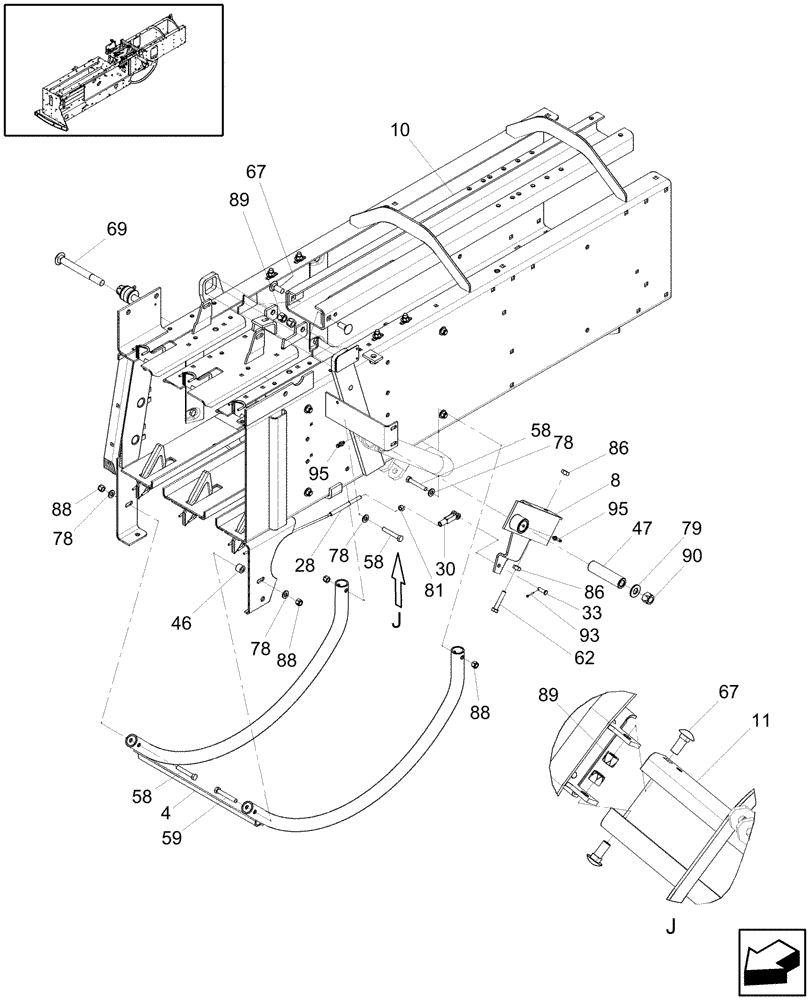

Запчасти Case IH SB521 (62.140.03) - BALE TENSION RAIL & NEEDLE YOKE GUARD (62) - PRESSING - BALE FORMATION

4

848471

NEEDLE

Guard

1шт.

8

848465

ARM

Needle Yoke

1шт.

10

87688066

RAIL ASSY.

Upper Tension Rail

1шт.

11

87688070

RAIL ASSY.

Lower Tension Rail

1шт.

28

848939

CABLE,1355mm L

1шт.

30

86629512

YOKE,5/16" - 24

Adjustable

1шт.

33

200731

CLEVIS PIN,7.9mm OD x 26.72mm L

1шт.

45

254146

SPACER,25/64" ID x 5/8" OD x 1/2" L

1шт.

46

698872

SPACER

1шт.

47

848469

SPACER

1шт.

58

88546

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 5

2шт.

59

87936

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 5

1шт.

62

120113

BOLT,Hex, M10 x 1.5 x 50mm, Cl 8.8, Full Thd

1шт.

67

87868

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/4", Gr 5, Full Thd

4шт.

69

9807008

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 6", Gr 5

1шт.

78

87016

WASHER,0.41" ID x 0.81" OD x 0.07" Thk

4шт.

79

87365

WASHER,0.66" ID x 1.31" OD x 0.1" Thk

1шт.

81

86629539

NUT,5/16"-24, G5

1шт.

86

100016

NUT,M10 x 1.5, Cl 8

1шт.

88

9637692

NUT,3/8"-16, GB

4шт.

89

9636698

NUT,1/2"-13, GB

4шт.

90

19670

NUT,5/8"-11, GB

3шт.

93

280250

COTTER PIN,3/32" OD x 3/4" L

1шт.

95

87569

LUBE NIPPLE,45 Degree, 1/4" NPT x 4/5" L, Drive

1шт.
