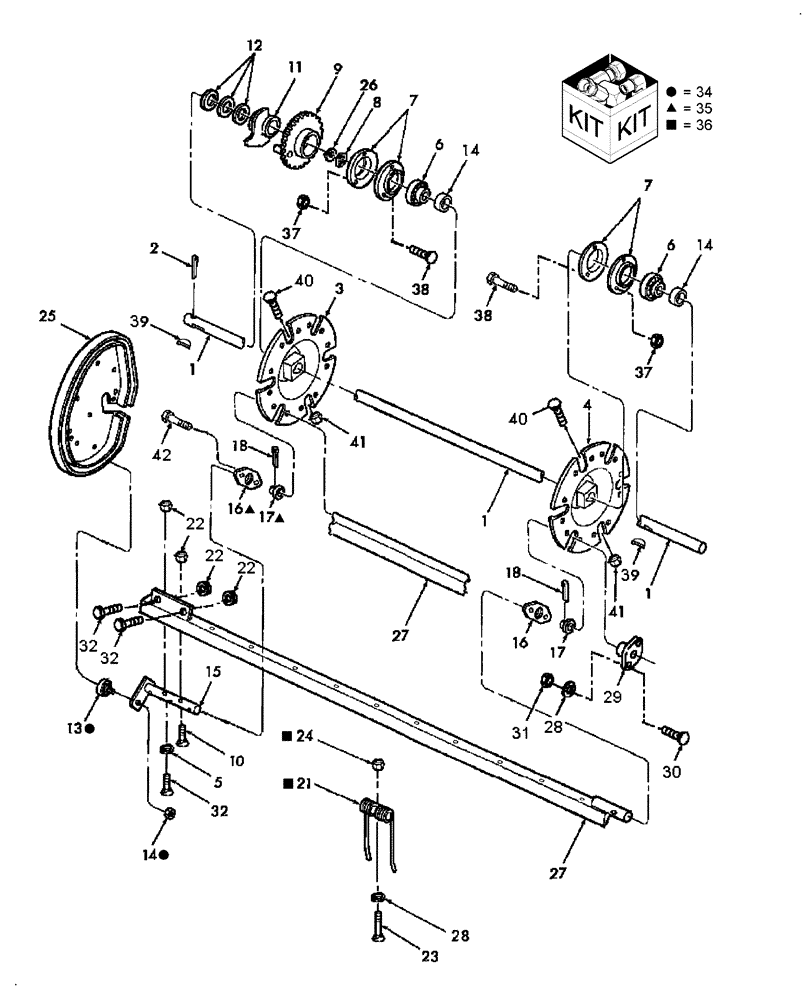

Запчасти Case IH SB521 (60.220.08) - PICKUP SHAFT & PICKUP FINGER (60) - PRODUCT FEEDING

1

9801511

DRIVEN SHAFT

Reel Driven

1шт.

2

87399

COTTER PIN,1/2 x 3 Bolt

1шт.

3

87010612

DISC

Finger, RH

1шт.

4

87010610

DISC

Finger, LH

1шт.

5

252687

WASHER,0.34" ID x 0.75" OD x 0.09" Thk

44шт.

6

45882

BALL BEARING,28.57mm ID x 62mm OD x 18mm W

2шт.

7

86548970

FLANGED BEARING

2шт.

8

80370008

SNAP RING,M50, Ext

1шт.

9

86641546

DRIVING SPROCKET

33T, Includes Ref. 10

1шт.

10

9636711

BOLT,Hex, 5/16 - 18" x 2", Gr 5

4шт.

11

86641547

HUB

1шт.

12

140108

WASHER,31mm ID x 37mm OD x 1mm Thk

M1 Thk

4/ARшт.

13

40714

CAM FOLLOWER,31.8 mm OD x 15.9 mm

Cam Roller

4шт.

14

80855

NUT,Hex, 3/8" - 24

4шт.

15

86516592

ANGLE BAR

Use W/ Ref. 27

5шт.

16

54695

BEARING HOUSING

4шт.

17

86641856

BEARING,27.1 mm ID x 47 mm OD x 25.4 mm

4шт.

18

136521

COTTER PIN,5.7mm OD x 44.45mm L

Hardened, 1/4" x 1-3/4"

12шт.

19

87394242

TORSION SPRING,Coiled, 2 Prong, 186.5mm L

Pickup, Curved, Premium, Standard

6шт.

19

87607074

TINE

Pickup, Curved, Economy, Optional

6шт.

20

280736

NUT,5/16"-18, GC

6шт.

Not Illustrated

1шт.

21

86641710

FINGER

Tine, Set of 6, Incl 5, 22, 23

44шт.

22

87382

LOCK NUT,5/16"-18, GB

56шт.

23

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

44шт.

24

87382

LOCK NUT,5/16"-18, GB

44шт.

25

86640846

CAM

1шт.

26

67517

WASHER

44шт.

27

86641592

ANGLE BAR

4шт.

28

252687

WASHER,0.34" ID x 0.75" OD x 0.09" Thk

44шт.

29

638025

FLANGE

4шт.

30

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

8шт.

31

9628503

NUT,3/8"-16, G5

16шт.

32

9707515

BOLT,Hex, 5/16 - 18" x 1 3/4", Gr 5

2шт.

33

280736

NUT,5/16"-18, GC

4шт.

34

87012134

BEARING ASSY

Pickup Cam Bearing, Incl: (2) Ref. 13 & 14

1шт.

35

87012135

BEARING ASSY

Pickup Bearing & Carrier, Incl (2) Ref. 16 & 17 plus Hardware

1шт.

36

87012136

REPAIR KIT

Pickup Tine, Incl Ref. 19 & 20

1шт.

37

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

9шт.

38

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

9шт.

39

84361

WOODRUFF KEY,#21, 1/4" x 1 1/4"

1шт.

40

87936

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 5

2шт.

41

88902

NUT,3/8"-16

2шт.

42

280430

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5, Full Thd

8шт.

43

84168980

KIT

Pickup Tine Kit, Includes: (6) of Ref. 5, 21, 22 & 23

1шт.
