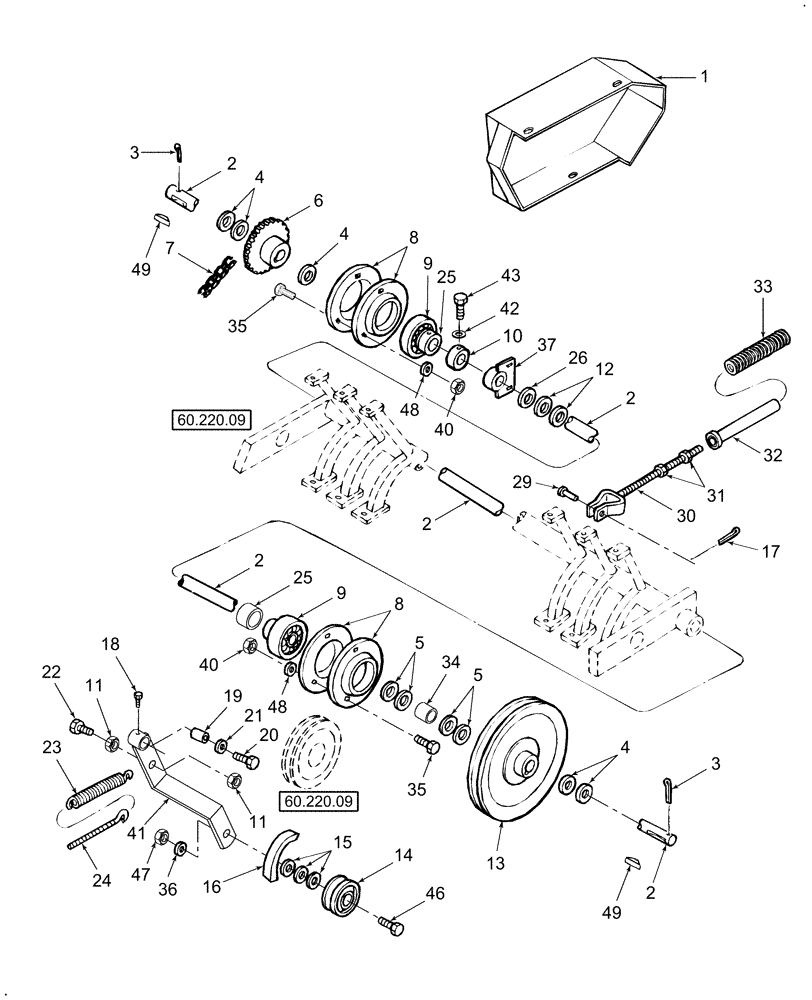

Запчасти Case IH SB521 (60.220.07) - PICKUP DRIVE (60) - PRODUCT FEEDING

1

86626118

SHIELD

RH

1шт.

2

87735726

SHAFT

Pickup Drive

1шт.

3

87399

COTTER PIN,1/2 x 3 Bolt

2шт.

4

26402

WASHER,25.8mm ID x 38.1mm OD x 1.7mm Thk

1шт.

5

26301

WASHER

1шт.

6

86629624

DRIVING SPROCKET

21T

1шт.

7

9621910

CHAIN,2050, 36 Links x 31.75mm = 1143mm

Roller, RC 2050, 36 Pitches, Includes: Ref. 38 & 39

1шт.

8

86603075

FLANGE,Bearing, 52.01 mm ID x 95.3 mm OD x 8.7 mm

4шт.

9

574844

BALL BEARING,25.4mm ID x 52mm OD x 15mm W

1.000" ID

2шт.

10

165796

COLLAR

1шт.

11

9628503

NUT,3/8"-16, G5

9шт.

12

86529375

WASHER,2.44" ID x 3.5" OD x 0.24" Thk

1шт.

13

86629583

SHEAVE

6шт.

14

86636724

IDLER,101.6mm Idler Dia x 115.49mm OD x 37.31mm W

1шт.

15

87364

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

3шт.

16

86629763

V-BELT,0.66" W x 82.90" L

1шт.

17

80755

COTTER PIN,1/8" OD x 1" L

2шт.

18

87569

LUBE NIPPLE,45 Degree, 1/4" NPT x 4/5" L, Drive

1шт.

19

334712

BUSHING,11mm ID x 20mm OD x 30mm L

1шт.

20

120069

BOLT,M10 x 1.5 x 56.58mm OAL, Cl 8.8

1шт.

21

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

1шт.

22

88011

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3шт.

23

86633427

SPRING

Tension

1шт.

24

27953

EYEBOLT

G2, 3/8"-16 x 5-1/2"

1шт.

25

38260

COLLAR

Locking

2шт.

26

86529374

WASHER,2.5" ID x 3.5" OD x 0.13" Thk

2-1/2" ID, 3-1/2" OD x .13" Thick

1шт.

27

128303

WASHER

1-1/8"

1шт.

29

76877

CLEVIS PIN,12.6mm OD x 34.52mm L

1/2" x 1-3/8"

2шт.

30

573004

CLEVIS

2шт.

31

9636972

JAM NUT,Jam, 5/8"-11, G2

2шт.

32

86629628

TUBE

2шт.

33

50564

SPRING

2шт.

34

706279

HUB

1шт.

35

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.

36

86513238

LOCK WASHER,.515” ID x 1.070” OD x .120” TK

Belleville, 1/2"

1шт.

37

226039

SPINDLE

1шт.

38

25810

LINK CHAIN

Roller, RC 2050, Cotter Style

35шт.

Not Illustrated

1шт.

39

86977795

CONNECTING LINK

Roller, RC 2050, Cotter Style

1шт.

Not Illustrated

1шт.

40

9706690

NUT,M8 x 1.25, Cl 8

6шт.

41

87044685

ARM

1шт.

42

9638005

JAM NUT,1/2"-13, Gr2

1шт.

43

87591

SET SCREW,Sq Hd, 1/2" - 13 x 1 1/2"

1шт.

46

87972

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

1шт.

47

280431

NUT,1/2"-13, G5

1шт.

48

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

6шт.

49

80768

WOODRUFF KEY,#15, 1/4" x 1"

2шт.
