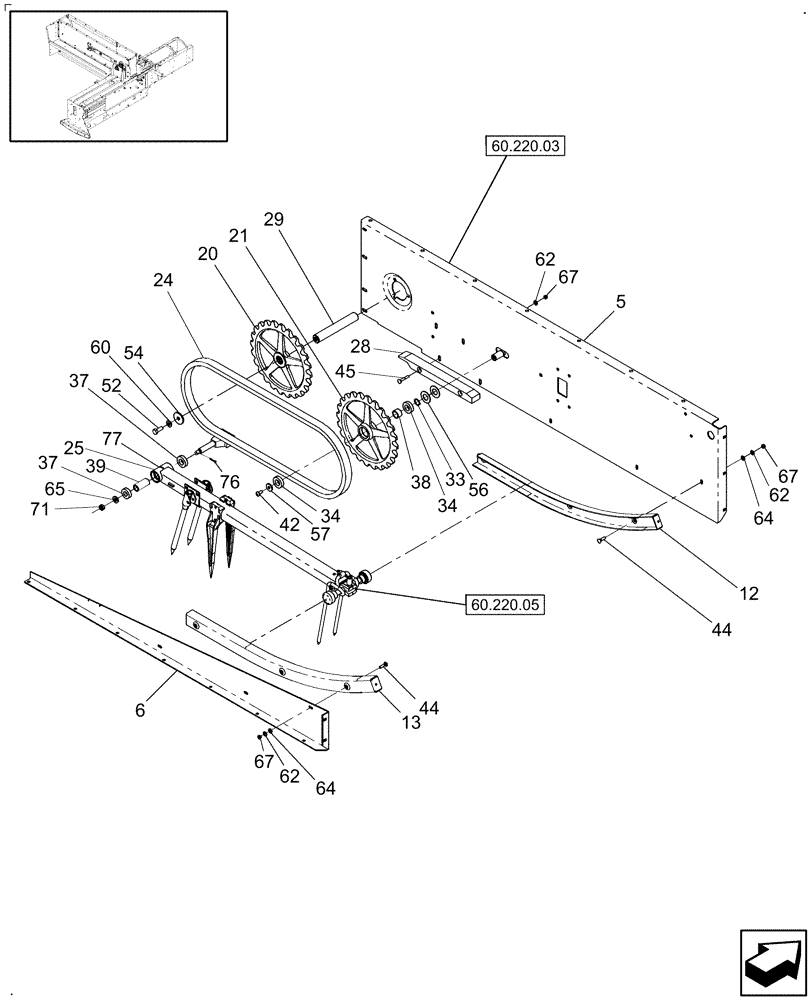

Запчасти Case IH SB521 (60.220.04) - FEEDER, FINGER BAR DRIVE (60) - PRODUCT FEEDING

1

637008

CHAIN,CA550, 25 Links x 41.4mm = 1035mm

2шт.

Not Illustrated

1шт.

2

80643360

SNAP RING,#28, Ext

2шт.

Not Illustrated

1шт.

3

643361

PIN,7.23mm OD x 49.21mm L

2шт.

Not Illustrated

1шт.

4

44536

LEVER

1шт.

Not Illustrated

1шт.

5

87704747

SUPPORT

Plate

1шт.

6

849210

SUPPORT

Rear

1шт.

7

40241

LINK,41.4mm Pitch

1шт.

Not Illustrated

1шт.

12

86640892

CHAIN GUIDE

CHAIN TRACK Front

1шт.

13

86640899

CHAIN GUIDE

CHAIN TRACK Rear

1шт.

20

137361

DRIVEN SPROCKET

24T

1шт.

21

134064

DRIVING SPROCKET

24T

1шт.

24

0C

ORDER COMPONENTS

Feeder Chain, Includes: Ref. 1 - 4 & 7

1шт.

637007

1шт.

25

0C

ORDER COMPONENTS

Finger Bar

1шт.

848928

1шт.

28

646318

GUIDE,Chain, Wood Block

1шт.

29

9801469

SHAFT

1шт.

33

25121

SNAP RING,#100, Ext

1шт.

34

58260

BALL BEARING,25mm ID x 47mm OD x 12mm W

2шт.

37

44680

BALL BEARING,20mm ID x 42mm OD x 12mm W

2шт.

38

58224

SPACER

1шт.

39

86629515

SPACER,20.68mm ID x 25.53mm OD x 51.89mm L

1шт.

42

380425

BOLT,M10 x 20mm

1шт.

44

280507

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 1 1/4", Gr 5

6шт.

45

280618

CARRIAGE BOLT,Short NK, 5/16"-18 x 2", G5

2шт.

52

87670

BOLT,1/2" - 13 x 1-1/4", Full Thd, Gr 5

1шт.

54

214445

WASHER

1шт.

56

27318

WASHER,26mm ID x 51mm OD x 1.5mm Thk

2/ARшт.

57

58225

WASHER,10.32mm ID x 31.8mm OD x 3.45mm Thk

1шт.

60

86513238

LOCK WASHER,.515” ID x 1.070” OD x .120” TK

1шт.

62

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

7шт.

64

87362

WASHER,5/16" SAE

5шт.

65

87364

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

1шт.

67

9635082

NUT,5/16" - 18, Gr 5

8шт.

71

87240

SLOTTED NUT,1/2"-13

1шт.

76

80755

COTTER PIN,1/8" OD x 1" L

1шт.
