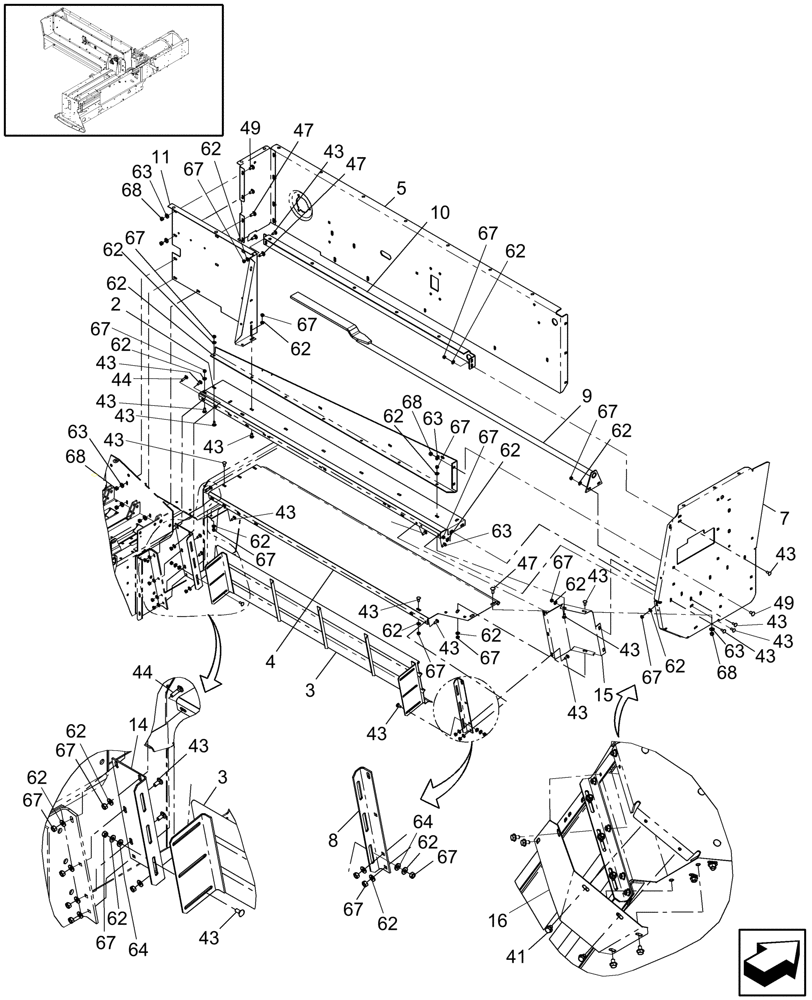

Запчасти Case IH SB521 (60.220.03) - FEEDER, REAR (60) - PRODUCT FEEDING

2

849197

STEEL PLATE

Top

1шт.

3

86635495

STEEL PLATE

Back

1шт.

4

86635492

STEEL PLATE

Bottom

1шт.

5

87704747

SUPPORT

Plate

1шт.

6

849210

SUPPORT

Rear

1шт.

7

87704744

SUPPORT

End

1шт.

8

849211

ANGLE

1шт.

9

86641489

GUARD

Hay

1шт.

10

87705280

SUPPORT

1шт.

11

87704750

D PANEL

Rear

1шт.

14

849202

PLATE

1шт.

15

9604451

PIPE

1шт.

16

86626087

SHIELD

1шт.

41

381014

SCREW,Flng, M8 x 16mm

6шт.

43

280327

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5, Full Thd

41шт.

44

280507

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 1 1/4", Gr 5

2шт.

47

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

3шт.

49

86508748

CARRIAGE BOLT,Short Square Neck, 3/8" - 16 x 3/4", Grade 5

4шт.

62

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

38шт.

63

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

9шт.

64

87362

WASHER,5/16" SAE

10шт.

67

9635082

NUT,5/16" - 18, Gr 5

41шт.

68

9628503

NUT,3/8"-16, G5

9шт.
