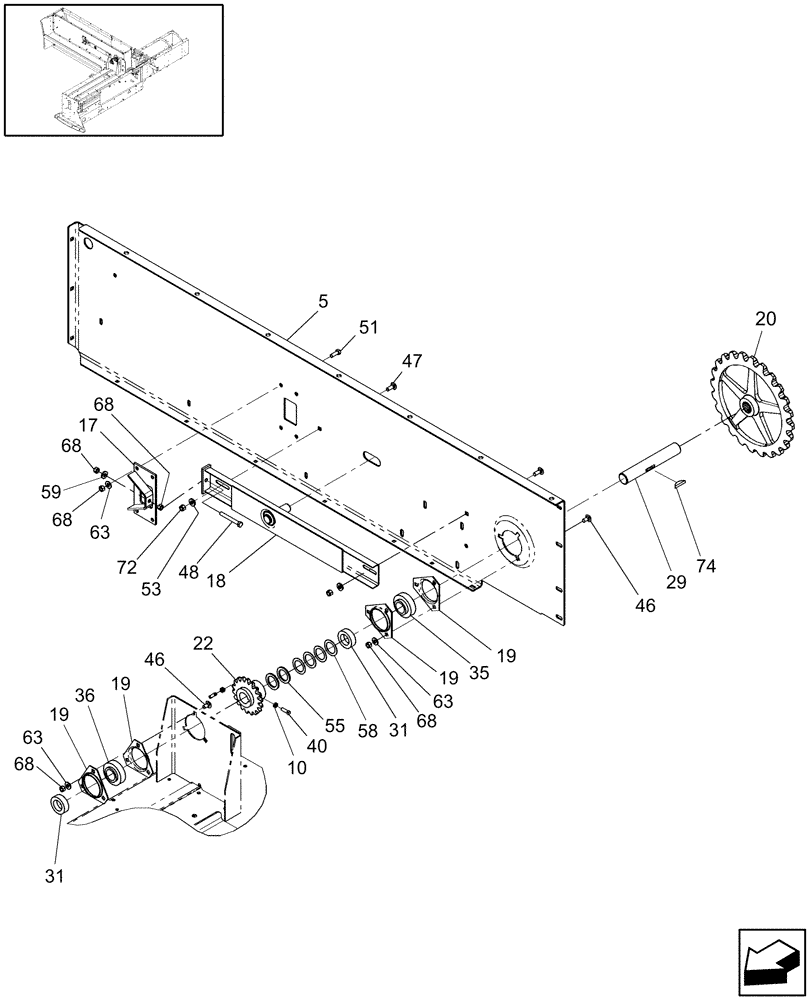

Запчасти Case IH SB521 (60.220.02) - FEEDER DRIVE (60) - PRODUCT FEEDING

5

87704747

SUPPORT

Plate

1шт.

17

637020

BRACKET

1шт.

18

9604476

SUPPORT

1шт.

19

86620026

FLANGED BEARING

4шт.

20

86640837

SPROCKET

24T

1шт.

22

86641548

DRIVING SPROCKET

18T

1шт.

29

9801469

SHAFT

1шт.

31

47067

RETAINER COLLAR,34.92mm ID x 56.33mm OD x 17.46mm Thk

2шт.

35

47559

BALL BEARING,39.937 mm ID x 72 mm OD x 37.7 mm

1шт.

36

47066

BALL BEARING,35mm ID x 72mm OD x 19mm W

1шт.

40

88971

SET SCREW,5/16" - 18 x 1"

2шт.

46

280430

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5, Full Thd

6шт.

47

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

2шт.

48

280626

BOLT,Hex, 3/8" - 16 x 3", Gr 5, Full Thd

1шт.

51

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

53

145788

WASHER,10.32mm ID x 22.23mm OD x 3.5mm Thk

2шт.

55

267571

WASHER

2шт.

58

58630

WASHER,.0299" Thk

4шт.

59

285072

WASHER,10.3mm ID x 22.2mm OD x 2.7mm Thk

(3/8")

1шт.

63

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

10шт.

68

9628503

NUT,3/8"-16, G5

12шт.

70

9626568

JAM NUT,Jam, 5/16"-18, G2

2шт.

72

88902

NUT,3/8"-16

2шт.

74

87122

WOODRUFF KEY,#128, 5/16" x 2 1/8"

1шт.
