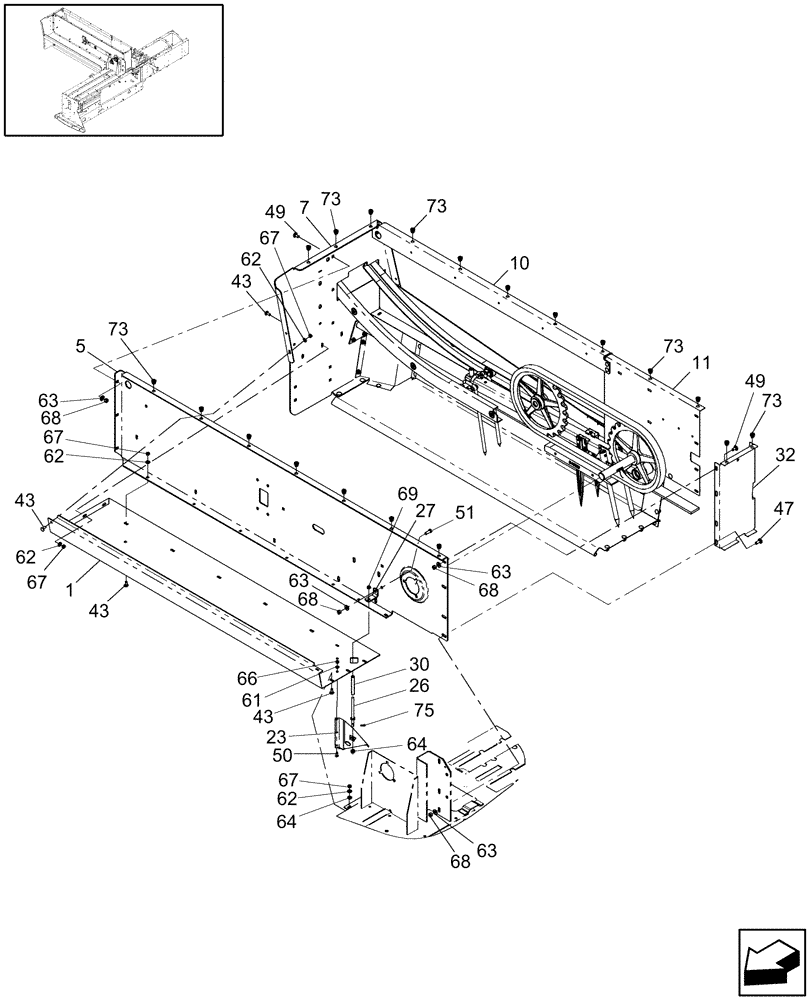

Запчасти Case IH SB521 (60.220.01) - FEEDER, SUPPORTS (60) - PRODUCT FEEDING

1

87704756

FEEDER

Top

1шт.

5

87704747

SUPPORT

Plate

1шт.

7

87704744

SUPPORT

End

1шт.

10

87705280

SUPPORT

1шт.

11

87704750

D PANEL

Rear

1шт.

23

643593

STOP

Hay

1шт.

26

86640790

CONNECTING LINK

1шт.

27

645970

BRACKET

1шт.

30

38527

SPRING

1шт.

32

87704753

D PANEL

End

1шт.

43

280327

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5, Full Thd

12шт.

47

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

3шт.

49

86508748

CARRIAGE BOLT,Short Square Neck, 3/8" - 16 x 3/4", Grade 5

4шт.

50

280641

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

3шт.

51

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

61

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

3шт.

62

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

12шт.

63

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

8шт.

64

87362

WASHER,5/16" SAE

3шт.

66

7770

NUT,Hex, 1/4 - 20, Cl 5

3шт.

67

9635082

NUT,5/16" - 18, Gr 5

12шт.

68

9628503

NUT,3/8"-16, G5

8шт.

69

86629544

NUT,5/16” – 18, GR B

1шт.

73

86610200

THREADED INSERT,M8 x 1.25

16шт.

75

88163

COTTER PIN

1шт.
