Запчасти Case IH SB521 (55.404.04) - ROAD LIGHTS (55) - ELECTRICAL SYSTEMS

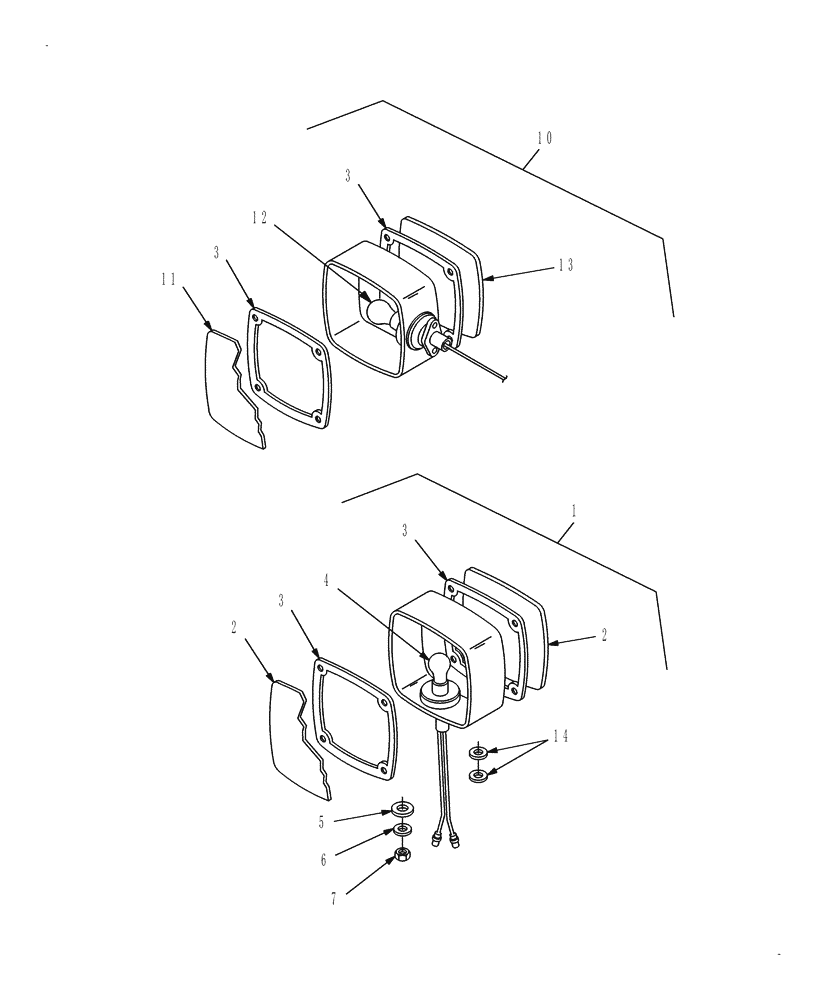

Схема запчастей Case IH SB521 - (55.404.04) - ROAD LIGHTS (55) - ELECTRICAL SYSTEMS
2
13
1
3
3
3
7
11
5
4
3
2
14
12
10
6

Артикул

Название

Примечание

Количество

1

86536572

LAMP

Amber, Includes: (2) Ref. 2, (2) Ref. 3, (1) Ref. 4, (1) Ref. 5, (1) Ref. 6 & (1) Ref. 7

2шт.

2

F0NN15N581BA

LENS

Amber Lens, Includes: (2) Ref. 3

4шт.

3

853709

GASKET,1.65mm Thk

8шт.

4

529068

BULB,#1156, 12V, 21W

2шт.

5

80700

WASHER,0.56" ID x 1.38" OD x 0.11" Thk

2шт.

6

80679

LOCK WASHER,1/20.507 CST ZND

4шт.

7

280963

NUT,Nut, 1/2-20 GR 5 ZND

2шт.

10

86514198

TAIL LAMP

Red, Includes: (1) Ref. 3, (1) Ref. 5, (1) Ref. 6, (1) Ref. 7, (1) Ref. 11 (1) Ref. 12 & (1) Ref. 13

2шт.

11

86537132

KIT

Lens, Black. Includes: (1) Ref. 3

2шт.

12

86537133

BULB,C6, #1157, 12.8V

2шт.

13

853711

LENS

Red: Includes: (2) Ref. 3

2шт.

Выбрано товаров: 11
