Запчасти Case IH SB521 (55.404.03) - ROAD LIGHTS KIT (55) - ELECTRICAL SYSTEMS

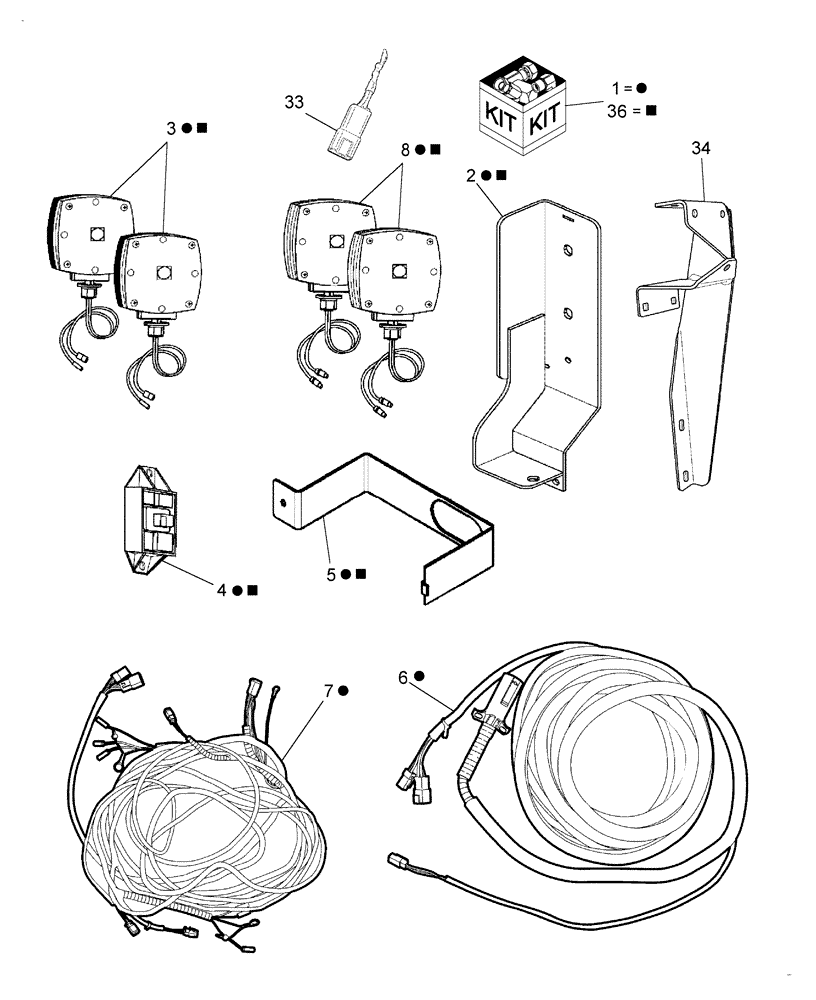

Схема запчастей Case IH SB521 - (55.404.03) - ROAD LIGHTS KIT (55) - ELECTRICAL SYSTEMS
7
8
33
5
6
1
4
3
2
34
36

Артикул

Название

Примечание

Количество

1

87740469

KIT

Road Lights, North America

1шт.

Refer to Installation Instructions for Correct Assembly Procedure.

1шт.

2

87044658

BRACKET

1шт.

3

86536572

LAMP

Double Faced, Refer to Fig. 06.25

2шт.

4

86561136

MODULE

Lighting Control

1шт.

5

87044637

CHANNEL

2шт.

6

87665705

WIRE HARNESS

Front, Includes: 37 - 45

1шт.

7

87060804

WIRE HARNESS

Rear

1шт.

8

86514198

TAIL LAMP

Refer to Fig. 06.25

2шт.

9

853765

CLAMP,7.9mm, Coat, 10.3mm Bolt Hole, P Type

9шт.

Not Illustrated

1шт.

10

9706748

CLAMP,15.9mm, Coat, 8.7mm Bolt Hole, P Type

2шт.

Not Illustrated

1шт.

11

700514

CLAMP,3.8mm, Coat, M8 Bolt

1шт.

Not Illustrated

1шт.

12

619284

CLAMP,23.8mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

Not Illustrated

1шт.

13

682052

GROMMET

1шт.

Not Illustrated

1шт.

14

646223

STRAP,8.0" L

18шт.

Not Illustrated

1шт.

15

527350

STRAP

2шт.

Not Illustrated

1шт.

16

87725682

CLIP

5шт.

Not Illustrated

1шт.

17

86512420

CARRIAGE BOLT,Rnd Head, M8 x 1.25 x 20mm, Full Thd, Cl 8.8

2шт.

Not Illustrated

1шт.

18

280503

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

3шт.

Not Illustrated

1шт.

19

86508769

CARRIAGE BOLT,Sq Nk, 1/4" - 20 x 1", Gr 5

2шт.

Not Illustrated

1шт.

20

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

2шт.

Not Illustrated

1шт.

21

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

3шт.

Not Illustrated

1шт.

22

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

3шт.

Not Illustrated

1шт.

23

80701

WASHER,0.31" ID x 0.73" OD x 0.07" Thk

2шт.

Not Illustrated

1шт.

24

9628503

NUT,3/8"-16, G5

3шт.

Not Illustrated

1шт.

25

9706690

NUT,M8 x 1.25, Cl 8

2шт.

Not Illustrated

1шт.

26

7770

NUT,Hex, 1/4 - 20, Cl 5

2шт.

Not Illustrated

1шт.

27

768115

CIRCUIT BREAKER

15A

1шт.

Not Illustrated

1шт.

28

87725683

TERMINAL CONNECTOR,12 GA

.375"

3шт.

Not Illustrated

1шт.

29

87725684

TERMINAL CONNECTOR,10 - 12 GA

.250"

2шт.

Not Illustrated

1шт.

30

87725685

TERMINAL CONNECTOR,12 GA

#10

4шт.

Not Illustrated

1шт.

31

173011

GROMMET,1” ID x 1.750” OD x .500” Tk

4шт.

Not Illustrated

1шт.

32

86547781

REFLECTOR,RED

Red Retroreflective

1шт.

Not Illustrated

1шт.

33

87537164

WIRE HARNESS

Jumper, Lights

1шт.

Order Separately, Not Included in Kit

1шт.

34

84133809

BRACKET

Used with Bale Thrower

1шт.

Order Separately, Not Included in Kit

1шт.

35

86547782

REFLECTOR,YELLOW

Yellow, Retro Reflective, Used with Bale Thrower

1шт.

Order Separately, Not Included in Kit

1шт.

Not Illustrated

1шт.

36

87738127

KIT

Road Light Completing, Includes: Ref. 2 - 5, 8, 10, 18 - 20, (2) 21, 22 - 24, 26 & 32

1шт.

To Add Road Lights on a Baler that Already has Work Lights Installed, Order 87738127 Road Light Completing Kit.

1шт.

Installation Instructions to Add Work Lights is Included in the Kit.

1шт.

37

84131530

SOCKET/RECEPTACLE

1шт.

Not Illustrated

1шт.

38

87707796

ELEC CONNECTOR

1шт.

Not Illustrated

1шт.

39

87421341

MULTIPOLE CONNECTOR,Male, 4 Pole

1шт.

Not Illustrated

1шт.

40

87707798

WEDGE

1шт.

Not Illustrated

1шт.

41

87710849

SOCKET/RECEPTACLE

1шт.

Not Illustrated

1шт.

42

84137504

MULTIPOLE CONNECTOR,Female, 7 Pole

1шт.

Not Illustrated

1шт.

43

87696144

ELEC. TERMINAL PIN,Male, 2 - 3.5 mm2

4шт.

Not Illustrated

1шт.

44

87697875

ELEC. TERMINAL PIN,Female, 2 - 3.6 mm2

5шт.

Not Illustrated

1шт.

Выбрано товаров: 83
