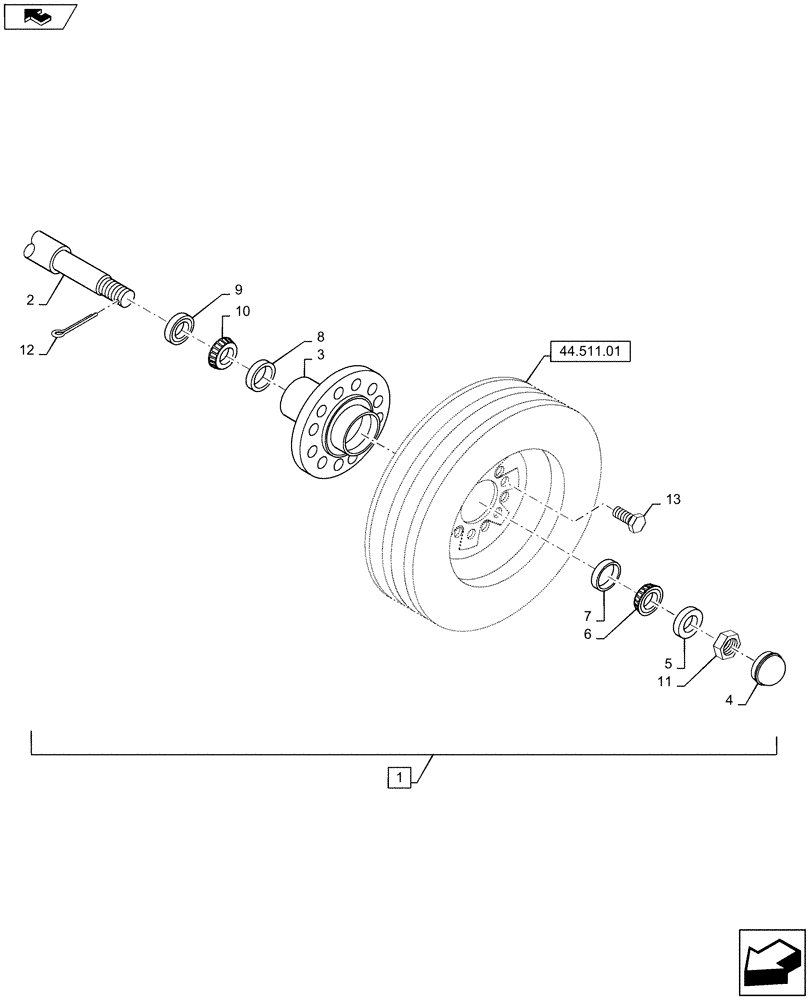

Запчасти Case IH SB521 (44.511.03) - WHEEL HUB, LH (44) - WHEELS

1

86626082

HUB

LH

1шт.

2

9604345

SPINDLE

1шт.

3

127587

HUB

Wheel, LH

1шт.

4

72015

CAP COVER

LH

1шт.

5

81543

WASHER,0.81" ID x 2" OD x 0.15" Thk

2шт.

6

86516468

ROLLER BEARING

1шт.

7

86516467

BEARING CUP,65.08mm OD x 13.97mm W

1шт.

8

72062

BEARING CUP,69.04mm OD x 15.08mm W

1шт.

9

100412

SEAL,44.45mm ID x 69.19mm OD x 10.72mm Thk

1шт.

10

36057

BEARING CONE,38.11mm ID x 19.05mm W

1шт.

11

412106

SLOTTED NUT,M20 x 1.5, Cl 04

2шт.

12

84887

COTTER PIN,5/32" x 1 1/4"

2шт.

13

32383

BOLT,Wheel, G5, 1/2"-20 x 13/16"

Wheel, LH, G5, 1/2"-20 x 13/16"

6шт.
