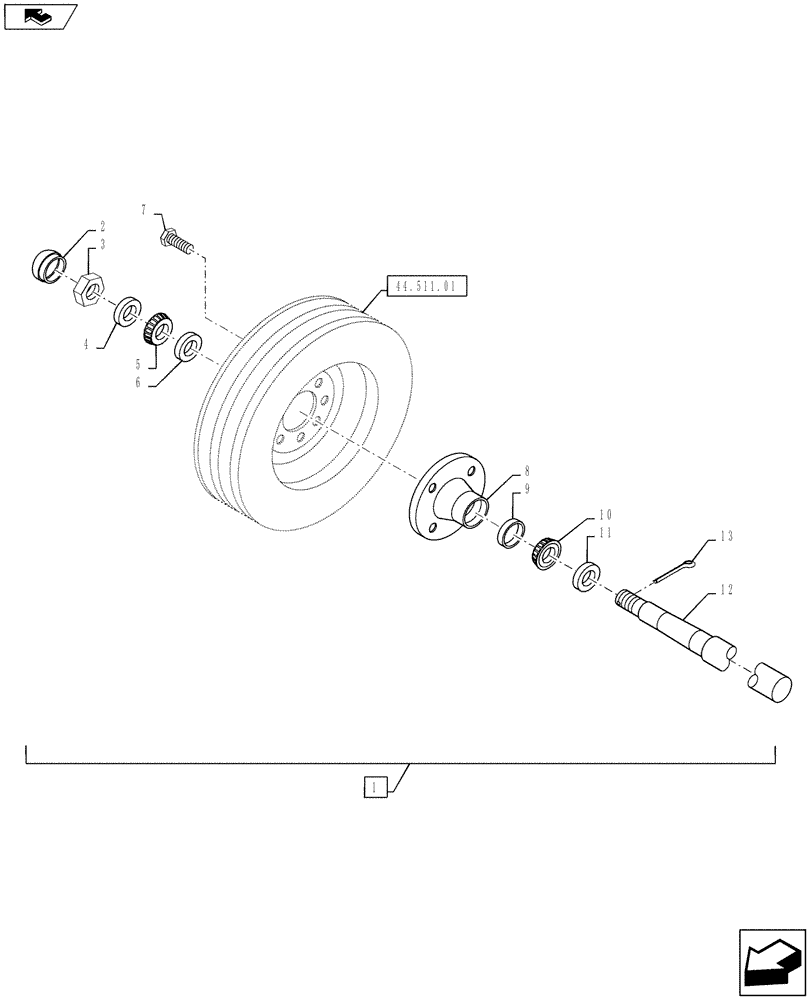

Запчасти Case IH SB521 (44.511.02) - WHEEL HUB, RH (44) - WHEELS

1

86629990

HUB

RH

1шт.

2

26808

CAP

1шт.

3

412106

SLOTTED NUT,M20 x 1.5, Cl 04

2шт.

4

86512839

WASHER,0.81" ID x 1.47" OD x 0.13" Thk

1шт.

5

574809

BEARING CONE,21.98mm ID x 16.64mm W

1шт.

6

574810

BEARING CUP,45.26mm OD x 12.06mm W

Bearing

1шт.

7

32383

BOLT,Wheel, G5, 1/2"-20 x 13/16"

Wheel, G5, 1/2"-20 x 13/16"

4шт.

8

39552

HUB

Wheel, RH

1шт.

9

36723

BEARING CUP,59.16mm OD x 11.81mm W

1шт.

10

36726

BEARING CONE,31.75mm ID x 16.76mm W

1шт.

11

36727

OIL SEAL,38.1mm ID x 59.28mm OD x 13.11mm Thk

Oil

1шт.

12

9847584

SPINDLE

RH

1шт.

13

84887

COTTER PIN,5/32" x 1 1/4"

2шт.
