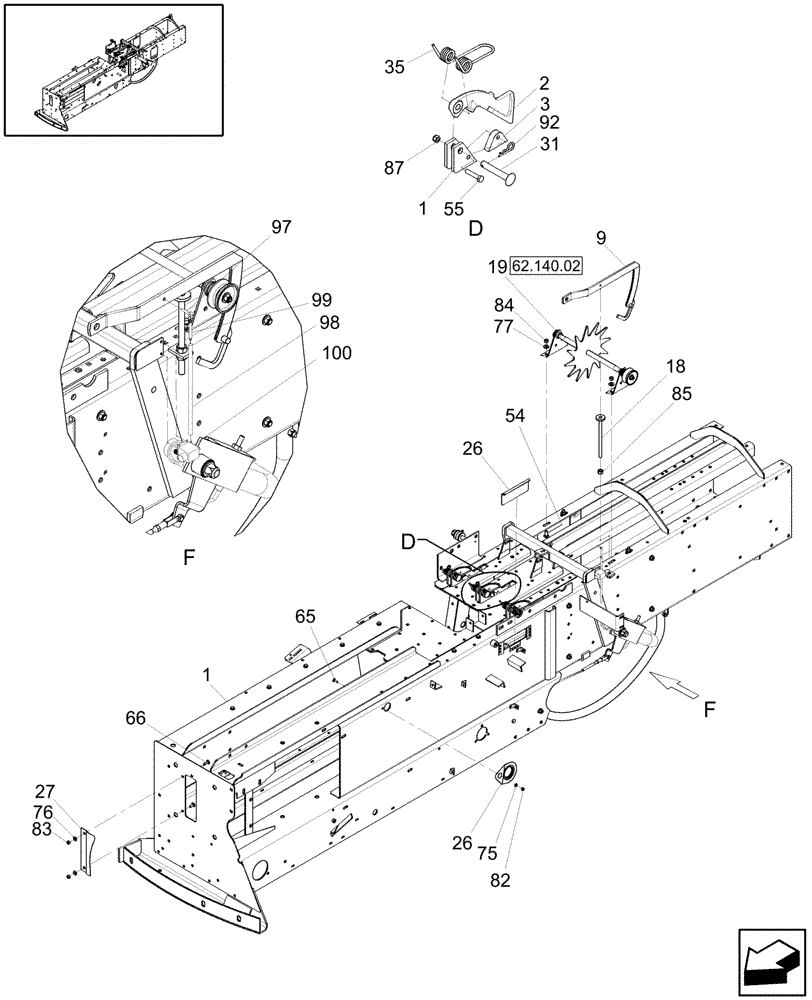

Запчасти Case IH SB521 (39.100.01) - MAIN FRAME (39) - FRAMES AND BALLASTING

1

87060279

BALE CHAMBER

SB521

1шт.

2

714862

DOG

Hay

6шт.

3

854913

STOP

Hay

6шт.

4

84133827

BRACKET

Hay Dog Mount

1шт.

Welding Required

1шт.

Not Illustrated

1шт.

9

86519043

TRIP ARM

1шт.

18

714808

ROD

1шт.

19

0C

ORDER COMPONENTS

Metering Wheel, Refer to Figure 62.140.02

1шт.

86978748

1шт.

25

321662

COVER

1шт.

26

87704728

COVER

1шт.

27

848897

SHIELD

1шт.

31

771478

PIN,12.7mm OD x 86.77mm L

6шт.

35

86505745

SPRING,Torsion

6шт.

54

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

55

88275

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5

6шт.

65

88832

CARRIAGE BOLT,Sq Nk, 1/4" - 20 x 3/4", Gr 5, Full Thd

1шт.

66

280327

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5, Full Thd

2шт.

75

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

1шт.

76

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

2шт.

77

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

82

7770

NUT,Hex, 1/4 - 20, Cl 5

1шт.

83

9635082

NUT,5/16" - 18, Gr 5

2шт.

84

9628503

NUT,3/8"-16, G5

4шт.

85

280431

NUT,1/2"-13, G5

1шт.

87

86629544

NUT,5/16” – 18, GR B

6шт.

92

216698

COTTER PIN,0.125" OD x 1.75" L

6шт.

97

87019

COTTER PIN,3/16" x 3/4"

1шт.

98

197559

CHAIN,9" L

1шт.

99

197717

SPRING

1шт.

100

86608973

BALE COUNTER

1шт.
