Запчасти Case IH SB521 (35.550.02) - HYDRAULIC CYLINDER, TONGUE SWING (35) - HYDRAULIC SYSTEMS

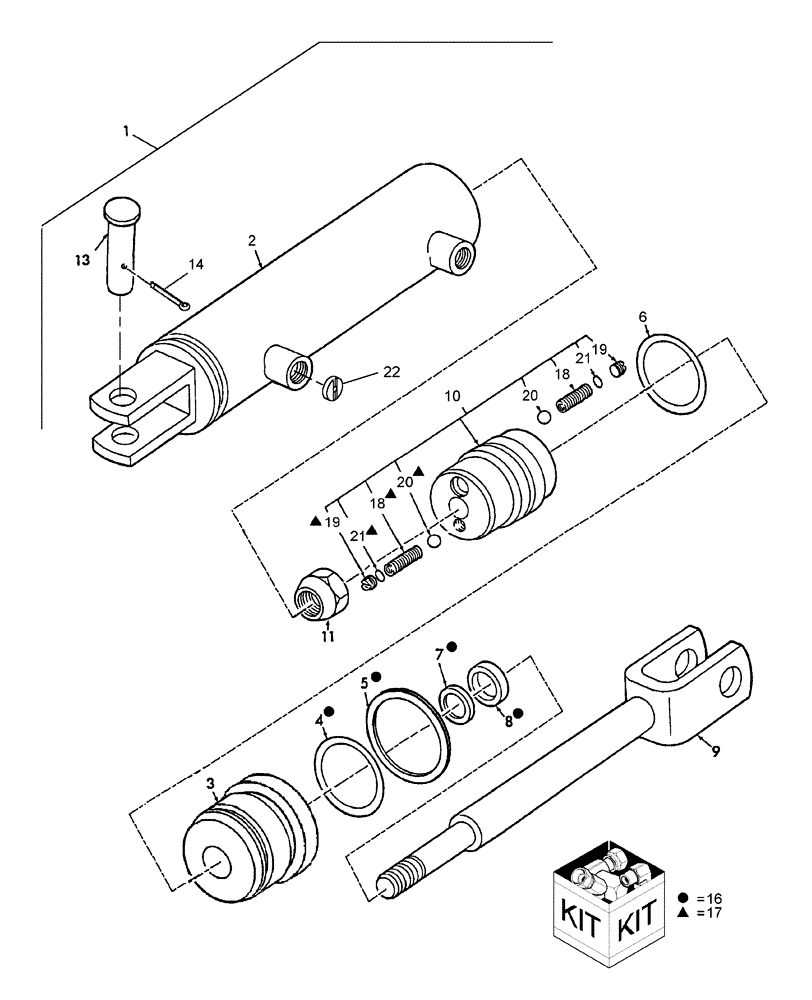

Схема запчастей Case IH SB521 - (35.550.02) - HYDRAULIC CYLINDER, TONGUE SWING (35) - HYDRAULIC SYSTEMS
1
10
7
18
13
20
4
9
18
20
14
19
11
2
19
8
22
3
21
6
16
5
21
17

Артикул

Название

Примечание

Количество

1

87018094

HYDRAULIC CYLINDER,Double Acting, 28.7mm Rod, 165.1mm Stroke

Tonque Swing

1шт.

Manufacturer's Production Date Stamp - (ex. M 02 2008 = M / week / year)

1шт.

2

NSS

NOT SOLD SEPARAT

Cylinder Barrel

1шт.

3

87027939

HEAD

Cylinder

1шт.

4

238-6232

O-RING,0.139" Thk x 2.734" ID, -232, Cl 6, 90 Duro

2шт.

5

270114

RUBBER WASHER

2.756" ID x .043" Thk.

1шт.

6

86900100

O-RING,0.215" Thk x 2.61" ID, -334, 90 Duro

2.600" ID x .210" Thick

1шт.

7

80592790

SEAL,28.7mm ID x 34.8mm OD x 6.35mm Thk

1-1/8" ID x 1-3/8" OD

1шт.

8

128406

SEAL,28.57mm ID x 41.45mm OD x 6.35mm Thk

Rod Wiper

1шт.

9

87032293

PISTON ROD

1шт.

10

87033642

PISTON

1шт.

11

280724

LOCK NUT,3/4" - 16

1шт.

13

514864

PIN

1" x 3-1/8"

2шт.

14

86511448

COTTER PIN,0.148" Dia x 3.31" L

9/64" x 3-5/16"

2шт.

16

87027951

SEAL KIT

KIT

1шт.

17

86527438

KIT

Relief Valve

1шт.

18

593702

COMPRESSION SPRING

2шт.

19

NSS

NOT SOLD SEPARAT

FITTING

2шт.

20

211-9

BALL,5/16" Dia

Steel

2шт.

21

238-5012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

2шт.

22

849287

ORIFICE

.0465"

1шт.

Выбрано товаров: 21
