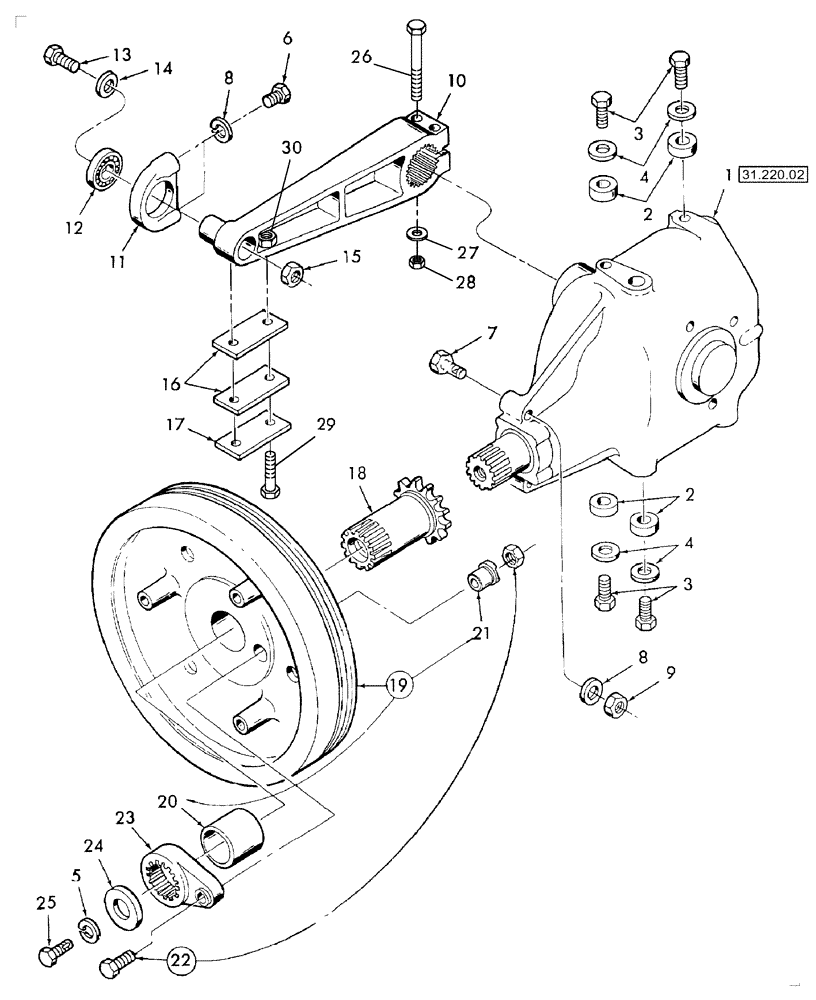

Запчасти Case IH SB521 (31.220.01) - GEARBOX & FLYWHEEL (31) - IMPLEMENT POWER TAKE OFF

1

86635535

GEARBOX

Main Drive

1шт.

2

128868

SPACER

4шт.

3

86505999

BOLT,Hex, 5/8" - 11 x 2", Gr 5

4шт.

4

86516680

WASHER

41/64" ID x 1-1/2" OD x .107" Thick

4шт.

5

130358

WASHER,16.28mm ID x 38.35mm OD x 4.11mm Thk

Hardened, 5/8"

1шт.

6

87670

BOLT,1/2" - 13 x 1-1/4", Full Thd, Gr 5

2шт.

7

9637417

BOLT,Hex, 1/2" - 13 x 3 1/2", Gr 5

2шт.

8

86513238

LOCK WASHER,.515” ID x 1.070” OD x .120” TK

Belleville, 1/2"

4шт.

9

280431

NUT,1/2"-13, G5

2шт.

10

86640881

CRANKSHAFT

1шт.

11

86525589

BEARING ASSY,36.52mm ID

Select Fit, Incl 12

1шт.

12

NSS

NOT SOLD SEPARAT

Bearing

1шт.

13

87972

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

1шт.

14

29684

WASHER,13.5mm ID x 50.8mm OD x 5.52mm Thk

17/32" ID x 2" OD x 3/16" Thick

1шт.

14

86629511

WASHER,13.49mm ID x 63.5mm OD x 6.35mm Thk

.531 ID x 2.50" OD x .250" Thk.

1шт.

15

88871

NUT,1/2"-13, GC

1шт.

16

286948

CUSHION

Rubber

2шт.

17

286947

PLATE

Cushion

1шт.

18

86640891

SPROCKET

& Hub, 13T

1шт.

19

86626120

FLYWHEEL

1 Belt Groove, Includes: Ref. 20, 21 & 31

1шт.

20

636420

DRIVE BUSHING,57.15mm ID x 60.49mm OD x 76mm L

1шт.

21

9604539

SLEEVE

Shear Bolt

1шт.

22

633169

BOLT AND NUT

& Nut

1шт.

23

86977125

HUB

Shear Bolt

1шт.

24

636422

WASHER,16.66mm ID x 69.85mm OD

21/32" ID x 2-3/4" OD x 3/8" Thick

1шт.

25

848780

BOLT

CL 8.8, Self-Locking, M16 x 2 x 40

1шт.

26

280183

BOLT,Hex, 5/8" - 11 x 4 1/2", Gr 5

2шт.

27

140048

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk

2шт.

28

280374

NUT,Hex, 5/8" - 11, Gr 5

2шт.

29

87936

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 5

2шт.

30

88902

NUT,3/8"-16

2шт.

31

87414

LUBE NIPPLE,1/4" - 28

1шт.

Not Illustrated

1шт.
