Запчасти Case IH SB521 (31.201.03) - POWER TAKE OFF, REAR (31) - IMPLEMENT POWER TAKE OFF

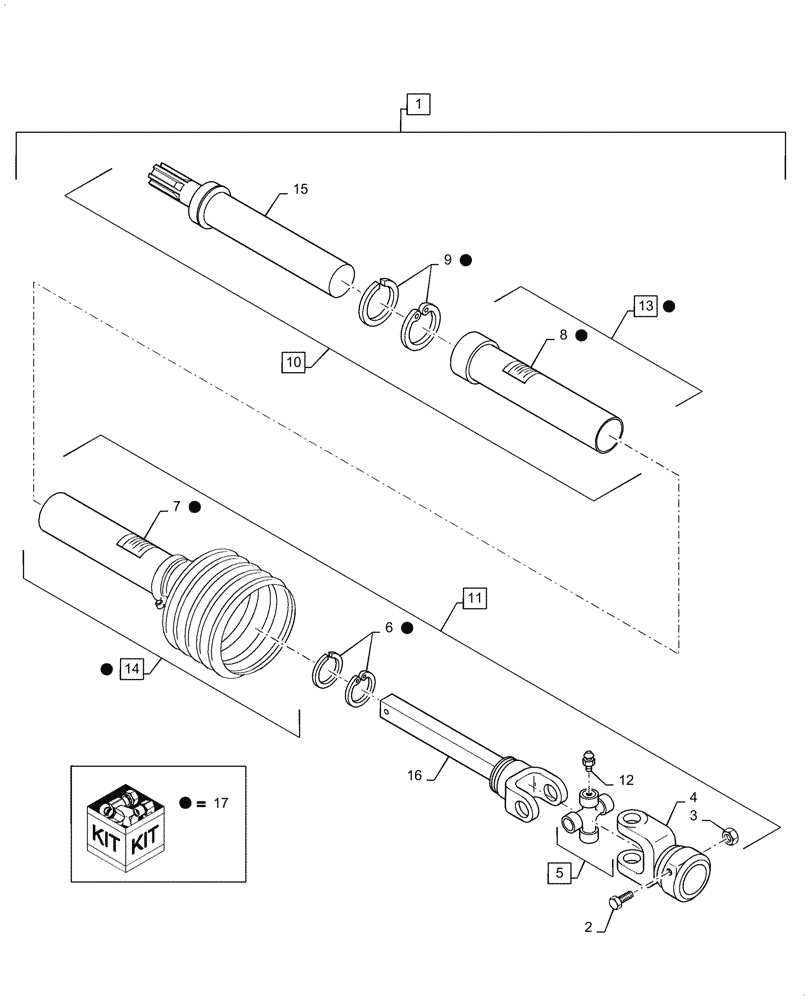

Схема запчастей Case IH SB521 - (31.201.03) - POWER TAKE OFF, REAR (31) - IMPLEMENT POWER TAKE OFF
4
11
17
3
17
14
17
10
17
17
16
17
17
15
13
8
12
2
9
6
1
17
5
7

Артикул

Название

Примечание

Количество

1

0C

ORDER COMPONENTS

PTO, Rear

1шт.

87399497

1шт.

2

4932

BOLT

1шт.

3

85700693

NUT,5/8" - 11, Gr C

1шт.

4

700712732

FORK

1шт.

5

86520904

BEARING ASSY

1шт.

6

87042238

REPAIR KIT

1шт.

7

849471

DANGER DECAL

English, Included with Ref. 1

1шт.

7

849482

DANGER DECAL

French

1шт.

Locate Decal Adjacent to English Decal Where Possible. Install Decal Over English Decal Where Necessary.

1шт.

7

9801260

DANGER DECAL

Spanish

1шт.

Locate Decal Adjacent to English Decal Where Possible. Install Decal Over English Decal Where Necessary.

1шт.

8

849472

DANGER DECAL

English, Included with Ref. 1

1шт.

8

849483

DANGER DECAL

French

1шт.

Locate Decal Adjacent to English Decal Where Possible. Install Decal Over English Decal Where Necessary.

1шт.

8

9801256

DANGER DECAL

Spanish

1шт.

Locate Decal Adjacent to English Decal Where Possible. Install Decal Over English Decal Where Necessary.

1шт.

9

86520902

REPAIR KIT

Shield

1шт.

10

87757083

TUBE

Tube Half

1шт.

11

87757086

PTO SHAFT

Shaft Half

1шт.

12

80714

LUBE NIPPLE,1/4"-28 NPT x .54" lg

1шт.

13

NSS

NOT SOLD SEPARAT

Guard, Inner

1шт.

14

NSS

NOT SOLD SEPARAT

Guard, Outer

1шт.

15

NSS

NOT SOLD SEPARAT

Shaft

1шт.

16

NSS

NOT SOLD SEPARAT

Tube & Yoke

1шт.

17

84180545

GUARD

1шт.

Выбрано товаров: 26
