Запчасти Case IH SB521 (31.201.02) - POWER TAKE OFF, FRONT (31) - IMPLEMENT POWER TAKE OFF

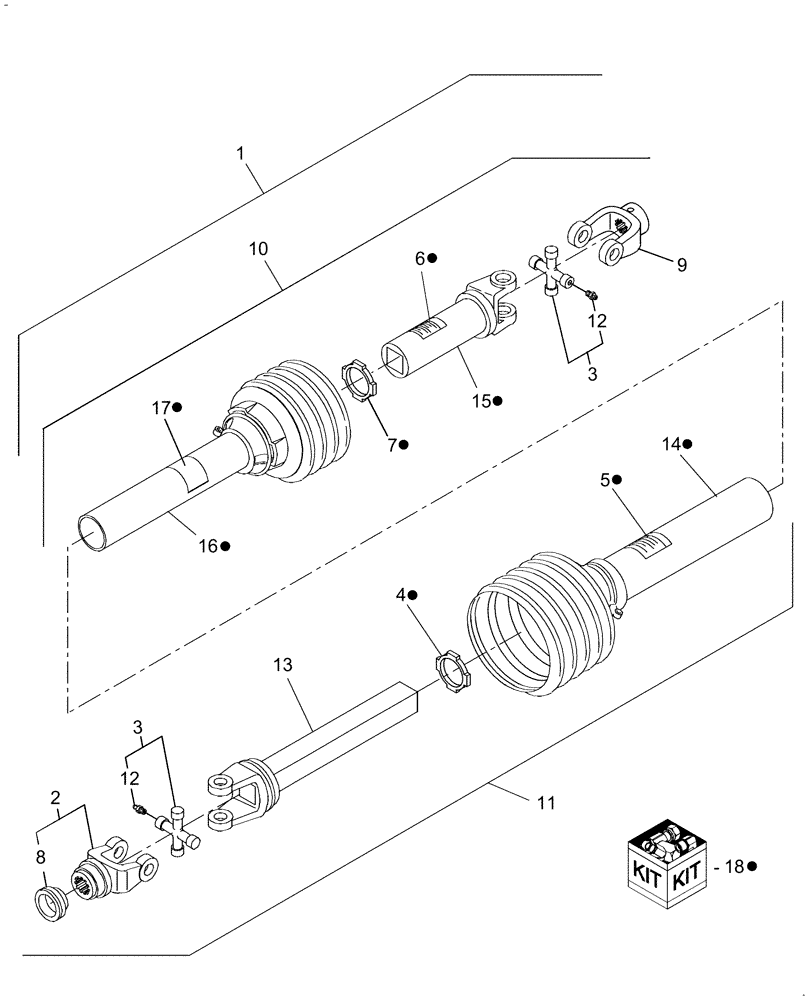

Схема запчастей Case IH SB521 - (31.201.02) - POWER TAKE OFF, FRONT (31) - IMPLEMENT POWER TAKE OFF
10
16
4
9
3
12
2
1
13
17
11
8
-
14
7
15
6
12
18
3
5

Артикул

Название

Примечание

Количество

1

0C

ORDER COMPONENTS

Front

1шт.

87399496

1шт.

2

87757074

YOKE

Front

1шт.

3

687115

BEARING ASSY,0.843" ID x 1.252" OD x 3.209"

Cross & Bearing

1шт.

4

87042238

REPAIR KIT

Guard Bearing

1шт.

5

849471

DANGER DECAL

English, Included with Ref. 1

1шт.

5

849482

DANGER DECAL

French

1шт.

Locate Decal Adjacent to English Decal Where Possible. Install Decal Over English Decal Where Necessary.

1шт.

5

9801260

DANGER DECAL

Spanish

1шт.

Locate Decal Adjacent to English Decal Where Possible. Install Decal Over English Decal Where Necessary.

1шт.

6

849472

DANGER DECAL

English, Included with Ref. 1

1шт.

6

849483

DANGER DECAL

French

1шт.

Locate Decal Adjacent to English Decal Where Possible. Install Decal Over English Decal Where Necessary.

1шт.

6

9801256

DANGER DECAL

Spanish

1шт.

Locate Decal Adjacent to English Decal Where Possible. Install Decal Over English Decal Where Necessary.

1шт.

7

87042234

KIT

Nylon Repair

1шт.

8

86534533

REPAIR KIT

Auto-Lok Repair

1шт.

9

87757075

YOKE

Rear

1шт.

10

87757077

REAR PTO ASSY

Half, Includes: Guard Set

1шт.

11

87757076

FRONT PTO ASSY

Half, Includes: Guard Set

1шт.

12

80714

LUBE NIPPLE,1/4"-28 NPT x .54" lg

2шт.

13

NSS

NOT SOLD SEPARAT

Yoke & Tube, Front Half

1шт.

14

NSS

NOT SOLD SEPARAT

Guard, Front Half

1шт.

15

NSS

NOT SOLD SEPARAT

Yoke & Tube, Rear Half

1шт.

16

NSS

NOT SOLD SEPARAT

Guard, Rear Half

1шт.

17

87041061

WARNING DECAL

English

1шт.

17

87042013

DECAL

WARNING French

1шт.

Locate Decal Adjacent to English Decal Where Possible. Install Decal Over English Decal Where Necessary.

1шт.

17

87042014

DECAL

WARNING Spanish

1шт.

Locate Decal Adjacent to English Decal Where Possible. Install Decal Over English Decal Where Necessary.

1шт.

18

84180544

GUARD

1шт.

Выбрано товаров: 31
