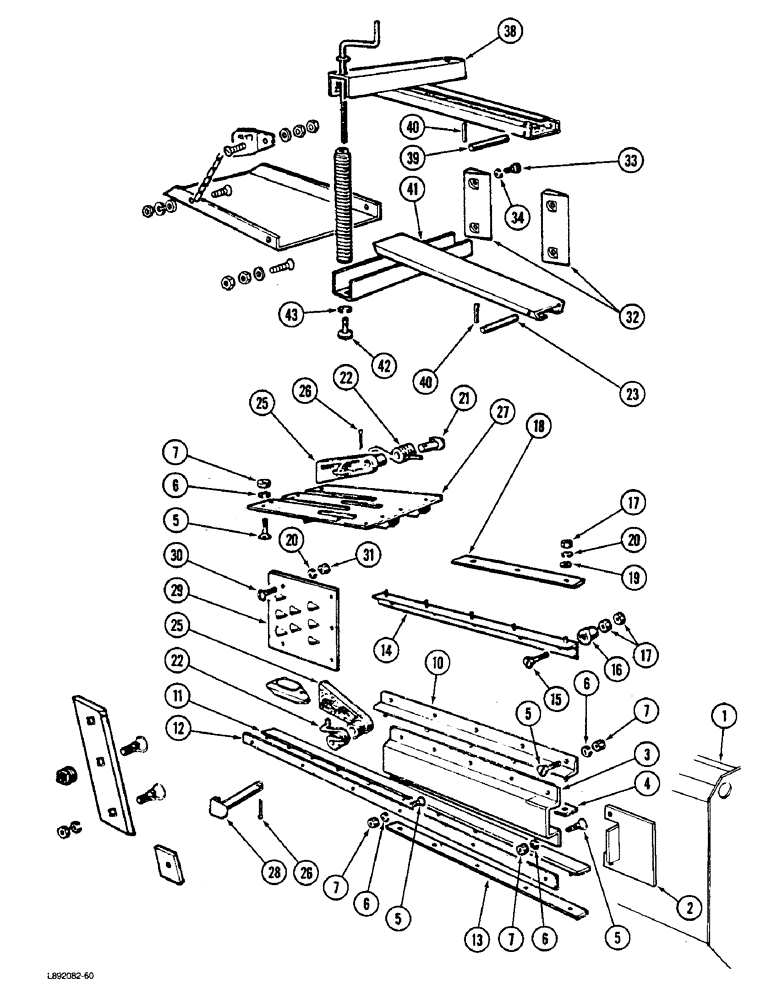

Запчасти Case IH 5420 (9-06) - BALE CHAMBER (09) - CHASSIS

1

ZA551176

CHAMBER

- bale

1шт.

2

1337171C1

SHIELD

- chamber

1шт.

3

1337191C1

GUIDE

- chamber

1шт.

4

1337192C1

SHIM

- guide

1шт.

5

31180R1

SCREW,Hex Flat Hd, M8 x 20, 4.8

- flat head cross recess, 8 mm - 1.25 x 20 mm

1шт.

6

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

7

30167R1

NUT,M8, Cl 10

- hex, 8 mm, Cl 10

1шт.

10

1337190C1

GUIDE

- chamber

1шт.

11

1337193C1

GUIDE

- chamber

1шт.

12

1337195C1

GUIDE

- chamber

1шт.

13

1337194C1

SHIM

- guide

1шт.

14

1337184C1

GUIDE

- chamber

1шт.

15

1337799C1

SCREW,Cross Rec Flat Hd, M8 x 1.25 x 40mm

- flat head cross recess, 8 mm - 1.25 x 40 mm

5шт.

16

1337798C1

SCREW

- adjusting

5шт.

17

30167R1

NUT,M8, Cl 10

- hex, 8 mm, Cl 10

1шт.

18

1337189C1

SHIM

- guide

1шт.

19

120393

BEARING WASHER,5/16", SAE

WASHER - flat, 11/32 x 11/16 x 3/64 inch

1шт.

20

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

21

1337188C1

PIN

- pivot

2шт.

22

1337180C1

SPRING

- return

4шт.

23

1337186C1

PIN

- pressure plate

1шт.

25

1337181C1

PAWL

- divider

4шт.

26

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

3шт.

27

1337183C1

DIVIDER

- chamber

1шт.

28

1337187C1

PIN

- pivot

1шт.

29

1337182C1

RETAINER

- chamber

2шт.

30

86511938

SCREW,Pan, 5/16" - 18 x 3/4"

- pan head slotted machine, 5/16 NC x 3/4 inch

10шт.

31

120376

NUT,5/16"-18, G5

10шт.

32

ZA551154

WEDGE

- compression

4шт.

33

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

- hex, 3/8 NC x 3/4 inch

8шт.

34

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

8шт.

38

ZA551260

CHANNEL

PLATE - pressure, top (P.I.N. CCB0000555 and after)

1шт.

38

1337173C1

PLATE

- pressure, top (Prior to P.I.N. CCB0000555)

1шт.

39

1337185C1

PIN

- retaining

1шт.

40

103396

PIN, SPLIT (COTTER),5/32" x 1"

5/32" x 1"

4шт.

41

1337175C1

PLATE

- pressure, bottom (Prior to P.I.N. CCB0000555)

1шт.

41

ZA551264

CHANNEL

PLATE - pressure, bottom (P.I.N. CCB0000555 and after)

1шт.

42

30043R1

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

- hex, 12 mm - 1.75 x 35 mm (Prior to P.I.N. CCB0000555)

2шт.

43

120384

WASHER,1/2"

LOCK, (Prior to P.I.N. CCB0000555) 1/2"

2шт.
