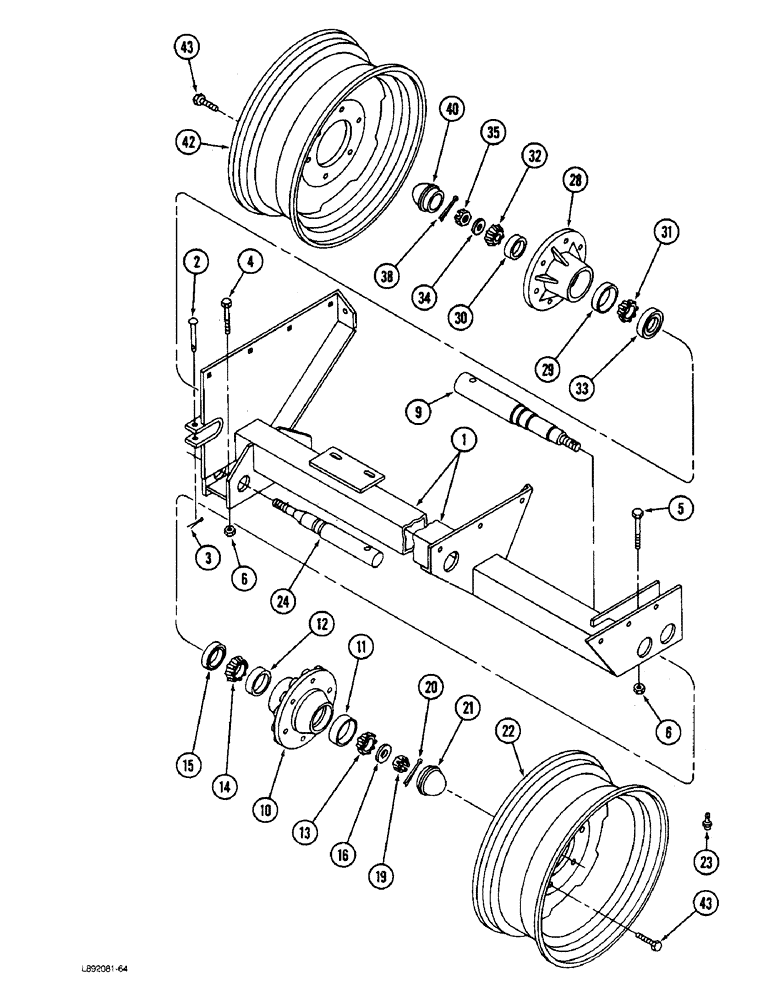

Запчасти Case IH 5420 (9-04) - AXLE AND WHEELS (09) - CHASSIS

1

ZA551060

CENTER AXLE

AXLE - baler

1шт.

2

21994R1

HEADED PIN,1/2" x 3 1/4"

PIN - headed, 1/2 x 3-1/4 inch

1шт.

3

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

4

413-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

- hex, 5/8 NC x 2-3/4 inch

1шт.

5

413-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

- hex, 5/8 NC x 3-1/4 inch

1шт.

6

19508R1

LOCK NUT,5/8"-11, GB

NUT - hex lock, 5/8 inch NC

2шт.

9

ZA103696

SPINDLE

- axle, left (Prior to P.I.N. CCB0000555)

1шт.

9

ZA551254

SPINDLE

- axle, left (P.I.N. CCB0000555 and after)

1шт.

10

ZA625501

HUB

ASSEMBLY - wheel, left

1шт.

11

651817R1

BEARING CUP

CUP - bearing, outer

1шт.

12

478793R1

BEARING CUP

CUP - bearing, inner

1шт.

13

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

CONE - bearing

1шт.

14

160558C91

BEARING ASSY,1.5005" ID x 2.5635" OD x 0.72"

CONE - bearing

1шт.

15

1254019C1

OIL SEAL

SEAL - oil

1шт.

16

495-11094

WASHER,7/8", SAE

- flat, 15/16 x 1-3/4 x 7/64 inch

1шт.

19

427646

SLOTTED NUT,7/8"-14, G5

NUT - hex slotted, 7/8 inch NF

1шт.

20

103397

COTTER PIN,5/32" x 1 1/4"

Pin, Split (Cotter), 5/32" x 1 1/4"

1шт.

21

614406R1

CAP

- hub

1шт.

22

1336823C1

WHEEL

RIM - wheel, left (26 x 12 terra rib 4 ply tire)

1шт.

23

387841R91

VALVE

ASSEMBLY - air

1шт.

24

ZA551085

SPINDLE

- axle, right

1шт.

28

662993R11

HUB

ASSEMBLY - wheel, right

1шт.

29

651817R1

BEARING CUP

CUP - bearing, inner

1шт.

30

651814R1

BEARING CUP

CUP - bearing, outer

1шт.

31

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

CONE - bearing

1шт.

32

651815R91

BEARING ASSY,7.508" ID x 17.82" OD x 6"

CONE- bearing

1шт.

32

651815R91GV

BEARING CONE

Value, Cone Bearing

1шт.

33

126621C1

SEAL

SEAL - oil

1шт.

34

369857R1

WASHER,20.7mm ID x 31.75mm OD x 3mm Thk

- flat, 25/32 x 1-1/4 x 5/64 inch

1шт.

35

69442D

NUT

- hex slotted, 3/4 inch NC

1шт.

38

103386

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

1шт.

40

651194R1

CAP

CUP - hub

1шт.

42

1253448C1

WHEEL

RIM - wheel, right (26 x 12 terra rib 4 ply tire)

1шт.

43

549962R1

BOLT,1 1/2" - 20 x 1 1/2", Class 3

- mounting, wheel

12шт.
