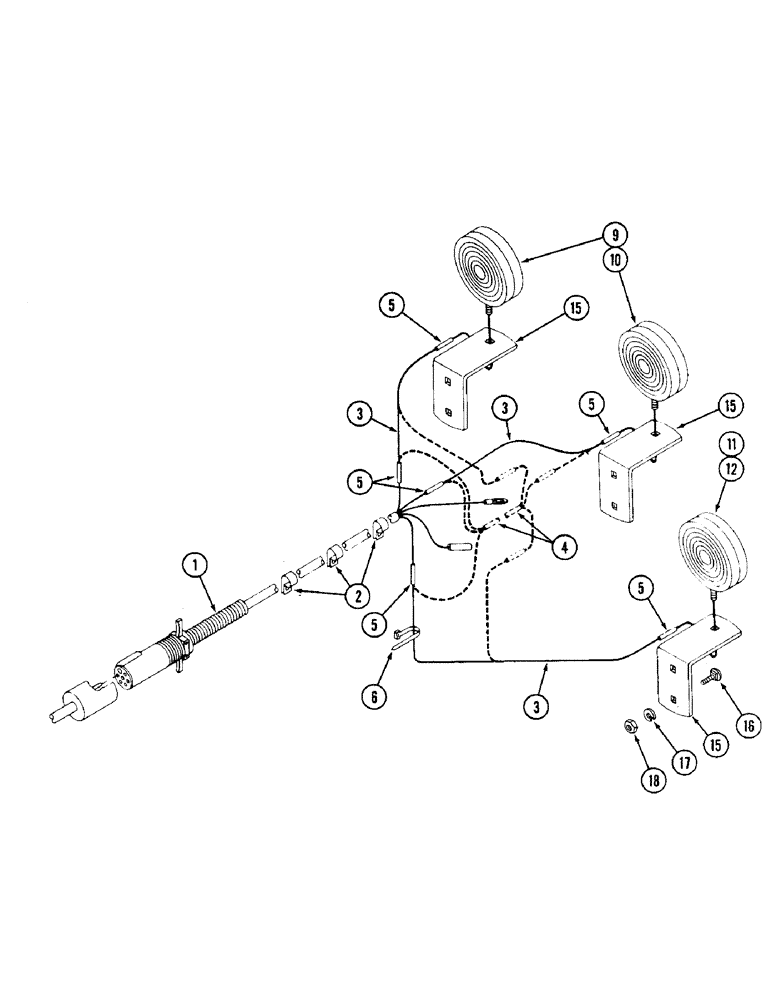

Запчасти Case IH 5420 (4-2) - LIGHTING SYSTEM (04) - ELECTRICAL SYSTEMS

1

ZA104936

HARNESS

CONNECTOR AND HARNESS ASSEMBLY - lighting

1шт.

2

299614C1

CLAMP

CLIP - harness

3шт.

3

NSS

NOT SOLD SEPARAT

WIRE - lighting, No. 14 x 30 foot long (See Note)

1шт.

4

NSS

NOT SOLD SEPARAT

WIRE - lighting, No. 14 (See Note)

1шт.

5

ZA707964

TERMINAL CONNECTOR,14 - 16

CONNECTOR - splice, wire

1шт.

6

291207C1

CLAMP

TIE - wire

12шт.

9

ZA103735

LIGHT

LAMP ASSEMBLY - flasher (Amber)

2шт.

10

9417866

BULB,C6, #1156, 12.8V

- flasher, No. 1156

1шт.

11

ZA103734

LIGHT

LAMP ASSEMBLY - flasher (Red)

1шт.

12

9417866

BULB,C6, #1156, 12.8V

- flasher, No. 1156

1шт.

15

ZA708451

BRACKET

- mounting, lamp

3шт.

16

598803R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G5, Full Thd

BOLT - round head, square neck, 5/16 NC x 1 inch

6шт.

17

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

18

120376

NUT,5/16"-18, G5

6шт.
