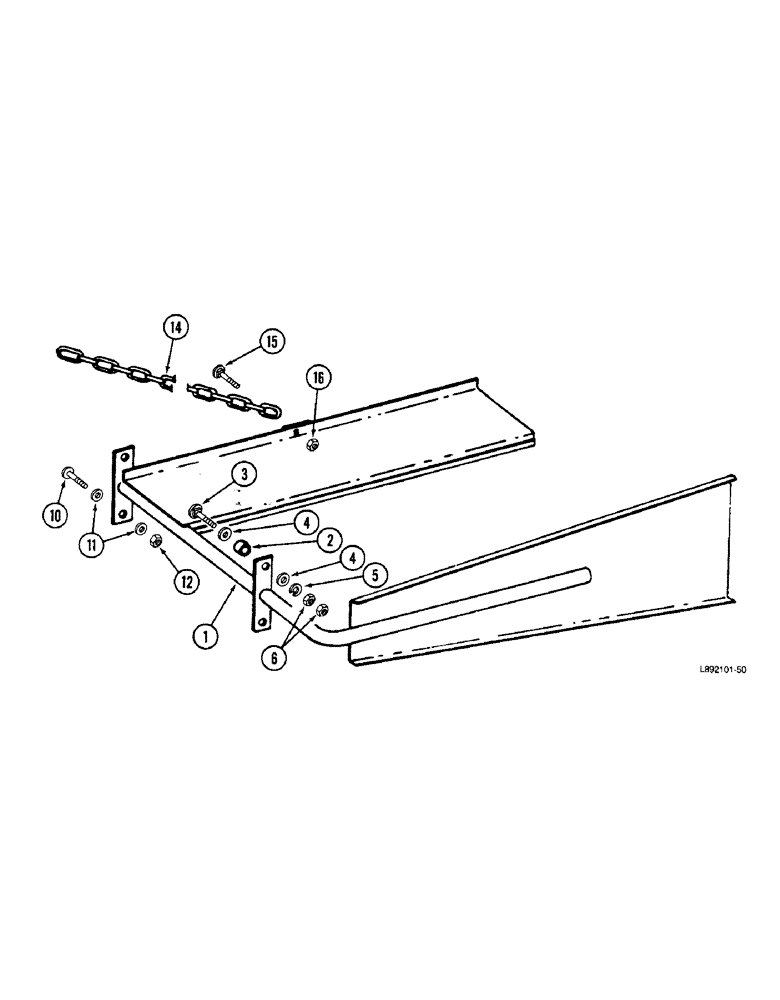

Запчасти Case IH 5420 (9-52) - BALE TURNER (09) - CHASSIS

1

674032R1

VALVE BLOCK

TURNER - bale

1шт.

2

604433R1

SPACER,1/2" Pipe x 13/16"

- bolt

1шт.

3

598804R1

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1 1/4", Gr 5

BOLT - round head square neck, 5/16 NC x 1-1/4 inch

1шт.

4

619855R1

WASHER

- flat, 11/32 x 3/4 x 3/64 inch

2шт.

5

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

6

120376

NUT,5/16"-18, G5

2шт.

10

160844

SCREW,Pan Hd, 3/8" x 1 1/4"

- pan head cross slotted, 3/8 NC x 1-1/4 inch

2шт.

11

21403R1

WASHER

- flat, 13/32 x 1 x 1/8 inch

10шт.

12

120377

NUT,3/8" - 16, Gr 5

4шт.

14

495526R1

CHAIN (AG)

CHAIN - holder, turner

1шт.

15

598804R1

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1 1/4", Gr 5

BOLT - round head square neck, 5/16 NC x 1-1/4 inch

1шт.

16

120376

NUT,5/16"-18, G5

2шт.
