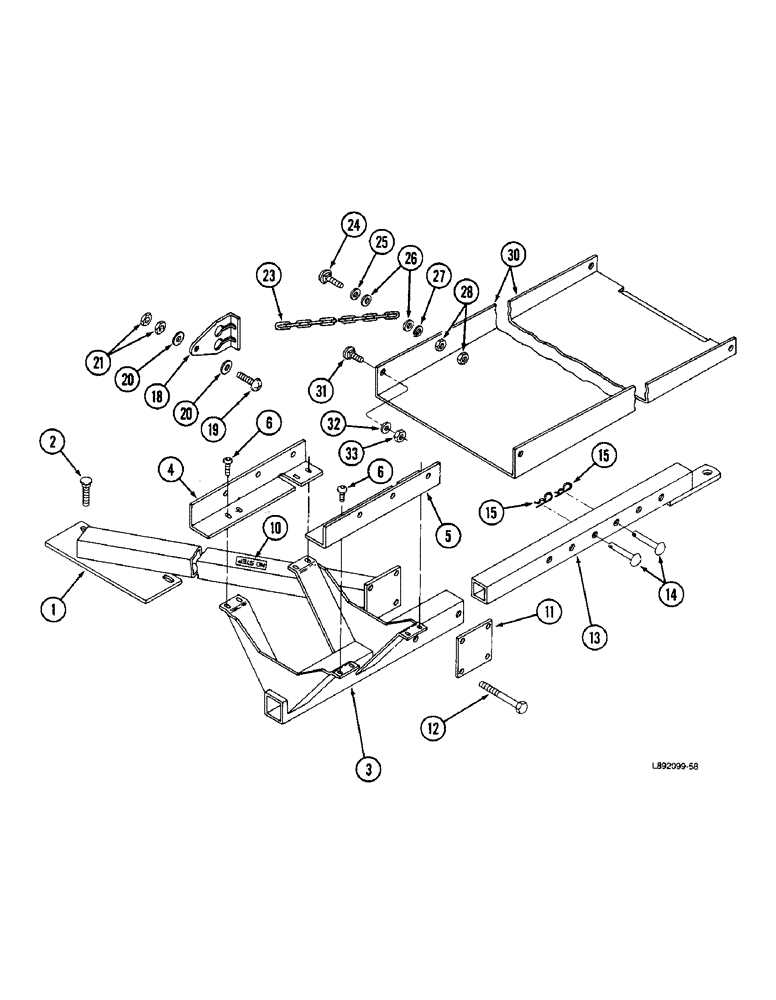

Запчасти Case IH 5420 (9-48) - WAGON HITCH AND BALE CHUTE EXTENSION (09) - CHASSIS

1

ZA551112

BRACE

- cross

1шт.

2

485734R1

CARRIAGE BOLT,Short NK, 1/2"-13 x 1 1/4", G5, Full Thd

BOLT - round head square neck, 1/2 NC x 1-1/4 inch

2шт.

3

ZA551092

BRACKET

- hitch, wagon

1шт.

4

ZA551091

ANGLE

- reinforcement, right

1шт.

5

ZA551090

ANGLE

- reinforcement, left

1шт.

6

ZA551319

SCREW

- hex button head, 3/8 NC x 1-1/4 inch

14шт.

10

ZA602550

DECAL

- no step

1шт.

11

ZA551114

PLATE

- mounting

1шт.

12

433156

BOLT,Hex, 1/2" - 13 x 4 1/2", Gr 5

- hex, 1/2 NC x 4-1/2 inch

4шт.

13

ZA551058

TRAILER HITCH

HITCH - wagon

1шт.

14

23171R1

SPLIT PIN/SAFETY PIN

PIN - round head

2шт.

15

407211R1

CLIP

PIN - clip

2шт.

18

203187C1

HOLDER

- chain (Replaces ZA203187)

2шт.

19

160844

SCREW,Pan Hd, 3/8" x 1 1/4"

- pan head cross slotted, 3/8 NC x 1-1/4 inch

1шт.

20

120394

WASHER,3/8", SAE

WASHER - flat, 13/32 x 13/16 x 3/64 inch

2шт.

21

120377

NUT,3/8" - 16, Gr 5

2шт.

23

669647R1

CHAIN (AG)

CHAIN - chute

2шт.

24

598804R1

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1 1/4", Gr 5

BOLT - round head square neck, 5/16 NC x 1-1/4 inch

2шт.

25

668569R1

WASHER

- flat, 11/32 x 1-1/2 x 3/16 inch

2шт.

26

619855R1

WASHER

- flat, 11/32 x 3/4 x 11/64 inch

4шт.

27

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

28

120376

NUT,5/16"-18, G5

4шт.

30

203091C1

CHUTE (DOWNWARD)

EXTENSION - long, bale chute

1шт.

31

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - round head square neck, 3/8 NC x 3/4 inch (Replaces 18508R1)

2шт.

32

20803R1

WASHER

- flat, 13/32 x 1 x 3/16 inch

2шт.

33

385525R1

LOCK NUT,3/8"-16, GB

NUT - hex lock, 3/8 inch NC

2шт.
