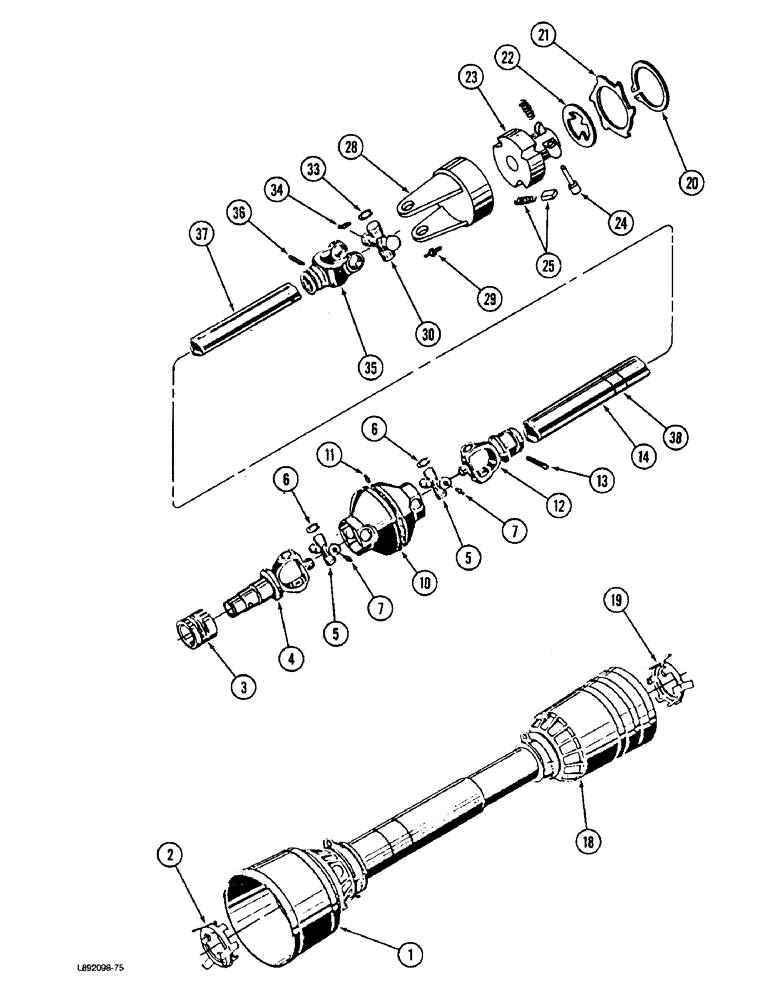

Запчасти Case IH 5420 (9-46) - TELESCOPING DRIVE LINE, WITH OVERRUNNING CLUTCH (09) - CHASSIS

ZA551200

SEE PARTS MARKETING

DRIVE ASSEMBLY - half, front

1шт.

1

ZA551198

SHIELD

ASSEMBLY - front

1шт.

2

ZA210334

BEARING

- shield, front

1шт.

3

ZA210317

COLLAR

- slide

1шт.

3

ZA551517

COLLAR

- twist lock

1шт.

4

ZA210421

YOKE

- shaft (Replaces ZA210318)

1шт.

5

ZA210320

KIT

CROSS KIT - bearing

2шт.

6

NSS

NOT SOLD SEPARAT

RING - snap

4шт.

7

ZA210321

NIPPLE, LUBE

FITTING - lube, straight

2шт.

10

ZA210322

BODY

- velocity, center

1шт.

11

ZA210321

NIPPLE, LUBE

FITTING - lube, straight

1шт.

12

ZA210324

YOKE

- inner

1шт.

13

ZA210325

SPLIT PIN/SAFETY PIN

PIN - roll

1шт.

14

ZA551178

TUBE

- front, outer

1шт.

ZA551201

SEE PARTS MARKETING

DRIVE ASSEMBLY - half, rear

1шт.

18

ZA551199

SHIELD

ASSEMBLY - rear

1шт.

19

ZA210335

BEARING

- shield, rear

1шт.

ZA551180

YOKE

CLUTCH - over running

1шт.

20

ZA551187

OIL SEAL

RING - snap

1шт.

21

ZA551186

OIL SEAL

WASHER - retainer

1шт.

22

ZA551185

OIL SEAL

RING - seal

1шт.

23

ZA551184

HUB

- disconnect

1шт.

24

ZA210331

PIN

KIT - push, with spring

1шт.

25

ZA551183

RATCHET

TOOTH AND SPRING - ratchet

3шт.

28

NSS

NOT SOLD SEPARAT

HOUSING - clutch

1шт.

29

ZA551181

NIPPLE, LUBE

FITTING - lube, straight

1шт.

30

ZA210344

JOINT

CROSS KIT - bearing

1шт.

33

NSS

NOT SOLD SEPARAT

RING - snap

4шт.

34

ZA210343

NIPPLE, LUBE

FITTING - lube

1шт.

35

ZA210329

YOKE

- shaft, rear

1шт.

36

ZA210328

PIN

- roll

1шт.

37

ZA551179

TUBE

- rear, inner

1шт.

38

1326528C1

DECAL

- danger, shield missing do not operate

1шт.
